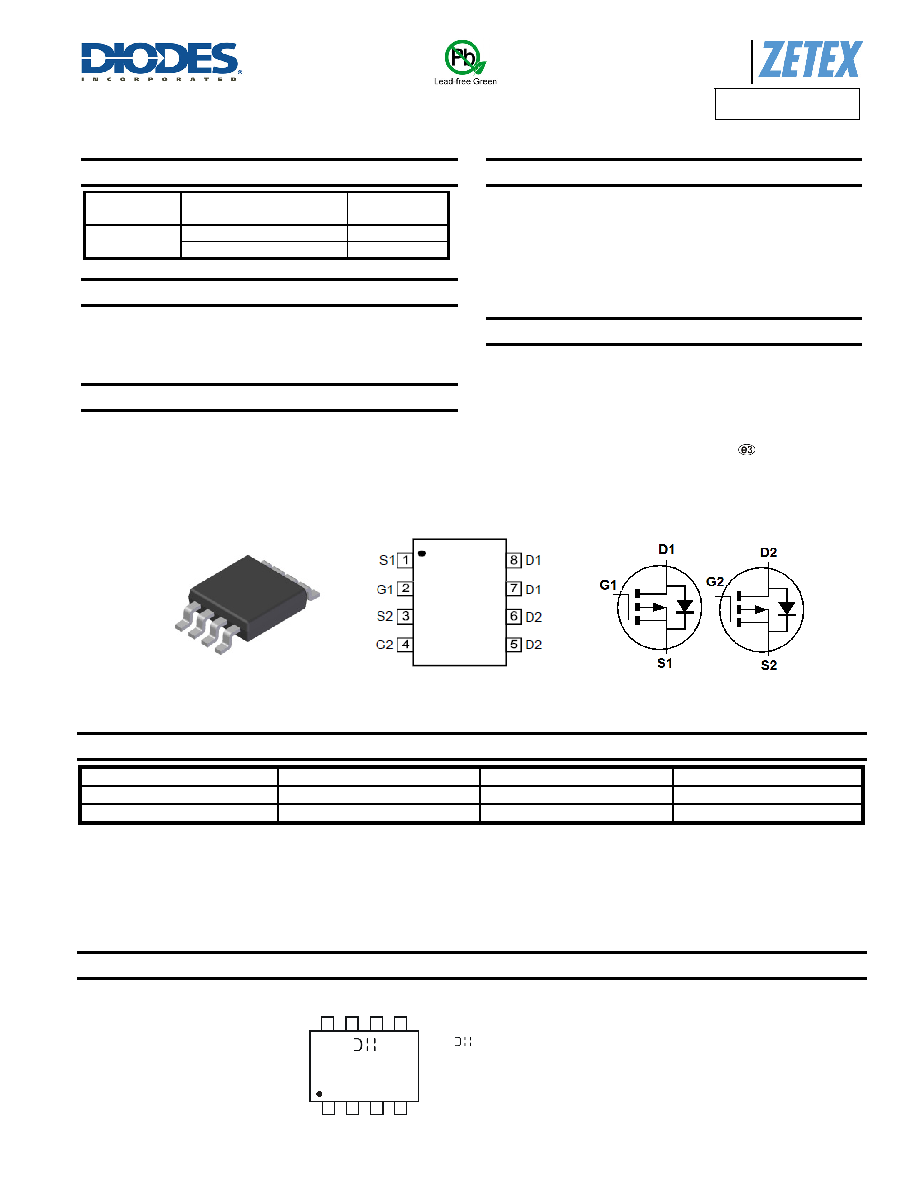

DMP4025LSD

Document Number: DS35937 Rev: 2 - 2

1 of 8

www.diodes.com

April 2013

© Diodes Incorporated

A Product Line of

Diodes Incorporated

DMP4025LSD

40V DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

-40V

25m

-7.6

45m

-6.0

Description

This MOSFET has been designed to minimize the on-state resistance

and yet maintain superior switching performance, making it ideal for

high efficiency power management applications.

Applications



Motor Control



Backlighting



DC-DC Converters



Printer Equipment

Features and Benefits





Fast switching speed – Minimizes switching losses



Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)



Halogen and Antimony Free. “Green” Device (Note 3)



Qualified to AEC-Q101 Standards for High Reliability



PPAP Capable (Note 4)

Mechanical Data



Case: SO-8



Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0 (Note 1)



Moisture Sensitivity: Level 1 per J-STD-020



Terminals: Finish - Matte Tin annealed over Copper lead frame.

Solderable per MIL-STD-202, Method 208



Weight: 0.074 grams (approximate)

Part Number

Compliance

Case

Packaging

DMP4025LSD-13

Standard

SO-8

2500 / Tape & Reel

DMP4025LSDQ-13

Automotive

SO-8

2500 / Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.

Marking Information

= Manufacturer’s Marking

P4025LD = Product Type Marking Code

YYWW = Date Code Marking

YY = Year (ex: 10 = 2010)

WW = Week (01 - 53)

Top View

SO-8

Top View

Pin-Out

Device symbol

P4025LD

YY WW
