Specifications subject to change without notice.

n North America: Tel. (800) 366-2266

n Asia/Pacific: Tel.+81-44-844-8296, Fax +81-44-844-8298

n Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020

1

Visit www.macom.com for additional data sheets and product information.

3.4 V, 1.2 W RF Power Amplifier IC

V 1.0

Features

Description

The MA02107AF is a three stage power amplifier,

designed for paging applications to have an output

power of +30.8 dBm with an input power of 0 dBm.

This power amplifier operates

at +3.4 volts with

55%

typical

power

added

efficiency.

The

MA02107AF is mounted in a standard outline 16-pin

TSSOP plastic package.

The MA02107AF is fabricated using M/A-COM’s

self-aligned MSAG

single supply voltage, high power efficiency, and

excellent reliability.

Ordering Information

Part Number

Description

MA02107AF-R7

7 inch, 1000 piece reel

MA02107AF-R13

13 inch, 3000 piece reel

MA02107AF-SMB

Sample Test Board

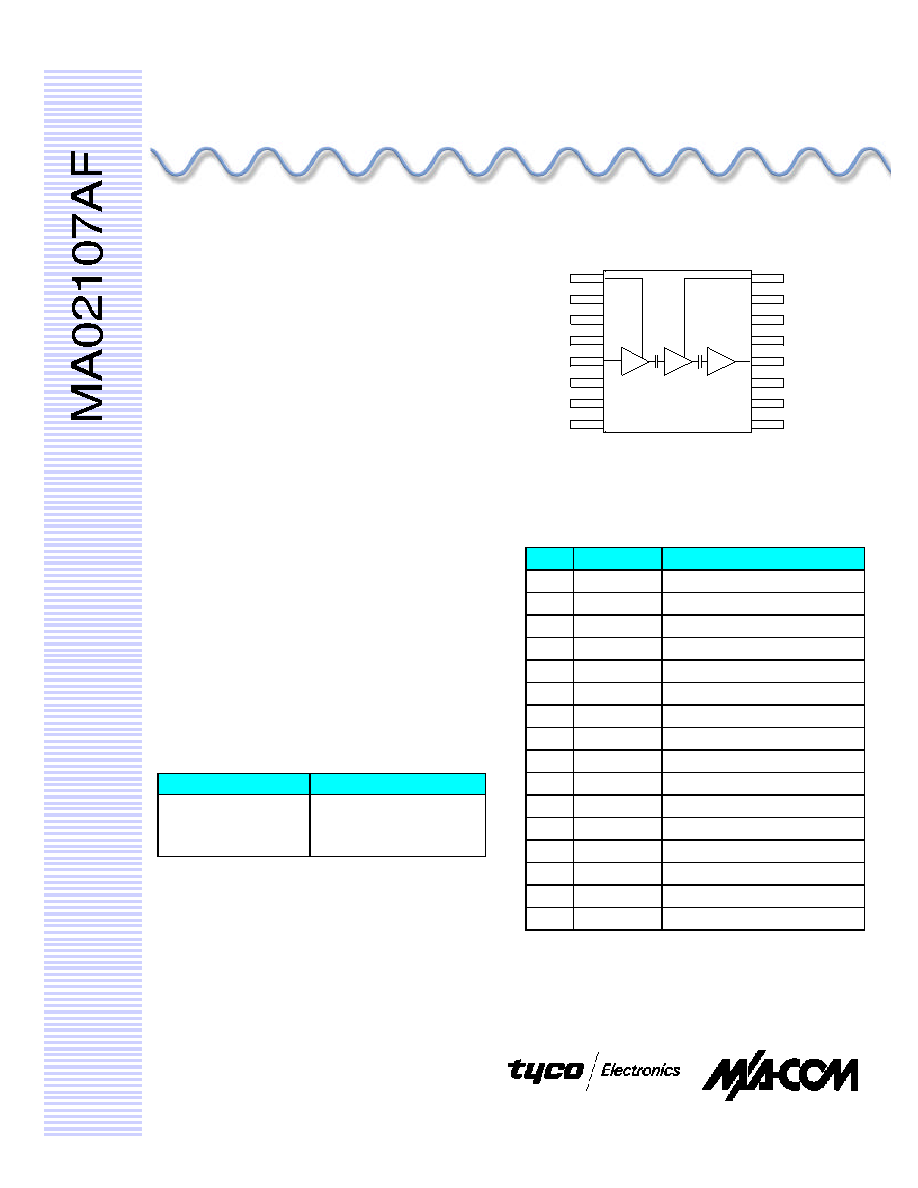

Functional Schematic

GND

GND

GND

GND

GND

N/C

N/C

GND

GND

RF IN

GND

GND

N/C

Pin Configuration

Pin

Function

Description

1

First Stage Supply Voltage

2

N/C

Not Connected

3

GND

Ground

4

GND

Ground

5

RF Input

6

GND

Ground

7

GND

Ground

8

N/C

Not Connected

9

N/C

Not Connected

10

GND

Ground

11

GND

Ground

12

RF Output/Third Stage Supply

13

GND

Ground

14

GND

Ground

15

GND

Ground

16

Second Stage Supply Voltage
