3.6 V, 450 mW DECT RF Power

Amplifier IC

V 1.0

Features

Description

The MA02203AD is a two stage power amplifier

designed for DECT applications to have an output

power of +26.5 dBm with an input power of 2 dBm.

This power amplifier operates

at +3.6 volts with

35%

typical

power

added

efficiency.

The

MA02203AD is mounted in a narrow body 16-pin

SOIC plastic package.

The MA02203AD is fabricated using M/A-COM’s

self-aligned MSAG

single supply voltage, high power efficiency, and

excellent reliability.

COM’s MA02206GJ has superior RF performance

with less DC power consumption in a smaller

package. Pricing on the MA02206GJ is also less

than the MA02203AD.

Ordering Information

Part Number

Description

MA02203AD-R7

7 inch, 1000 piece reel

MA02203AD-R13

13 inch, 3000 piece reel

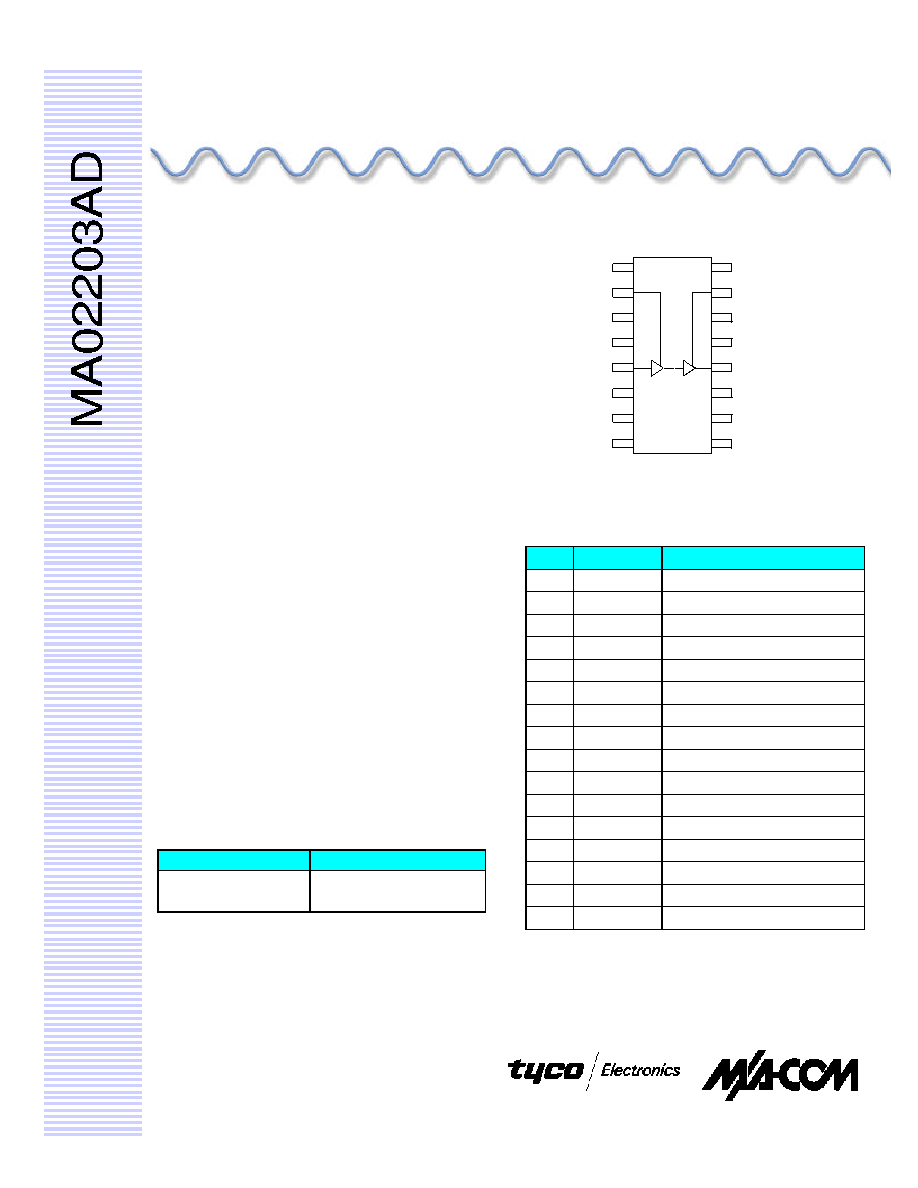

Functional Schematic

GND

GND

GND

GND

N/C

GND

GND

GND

GND

N/C

N/C

N/C

16 pin narrow body SOIC

Pin Configuration

Pin

Function

Description

1

N/C

Not Connected

2

First Stage Supply Voltage

3

GND

Ground

4

GND

Ground

5

RF Input

6

GND

Ground

7

GND

Ground

8

N/C

Not Connected

9

N/C

Not Connected

10

GND

Ground

11

GND

Ground

12

RF Output

13

GND

Ground

14

GND

Ground

15

Second Stage Supply Voltage

16

N/C

Not Connected
