NJG1553F
- 18 -

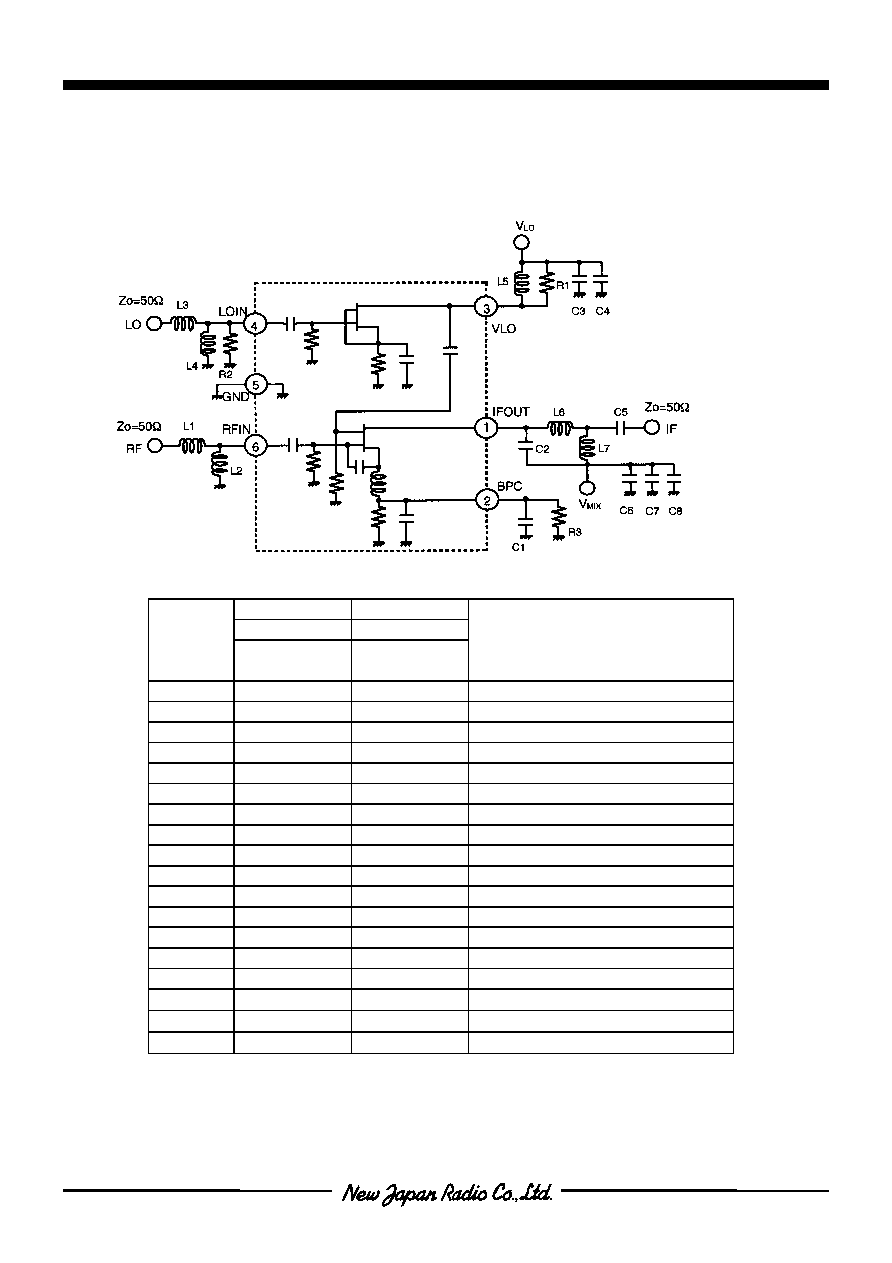

nAPPLICATION CIRCUIT 2
This circuit is purposed for improving input IP3 performance by setting mixer current to around
10mA by adding external resistance to BPC terminal.
Reference value
Application 1
IIP3=+4dBm
Application 2
IIP3=+5.1dBm
PARTS LIST
1.9GHz Band
Upper LOCAL
PART ID
fLO=2110MHz
fIF=210MHz
COMMENT
L1
4.7nH
TAIYO-YUDEN(HK1608)
L2
3.3nH
TAIYO-YUDEN(HK1608)
L3
6.8nH
TAIYO-YUDEN(HK1608)
L4
4.7nH
TAIYO-YUDEN(HK1608)
L5
3.9nH
TAIYO-YUDEN(HK1608)
L6
47nH
TAIYO-YUDEN(HK1608)
L7
27nH
TAIYO-YUDEN(HK1608)
C1
560pF
MURATA(GRM39)
C2
8pF
MURATA(GRM39)
C3
100pF
MURATA(GRM39)
C4
1000pF
MURATA(GRM39)
C5
1000pF
MURATA(GRM39)
C6
10pF
MURATA(GRM39)
C7
100pF
MURATA(GRM39)
C8
1000pF
MURATA(GRM39)
R1
240
Ω
TAMA Electronics(CRG16G)
R2
430
Ω
TAMA Electronics(CRG16G)
R3
82
Ω
TAMA Electronics(CRG16G)
