Panel PCs

Features

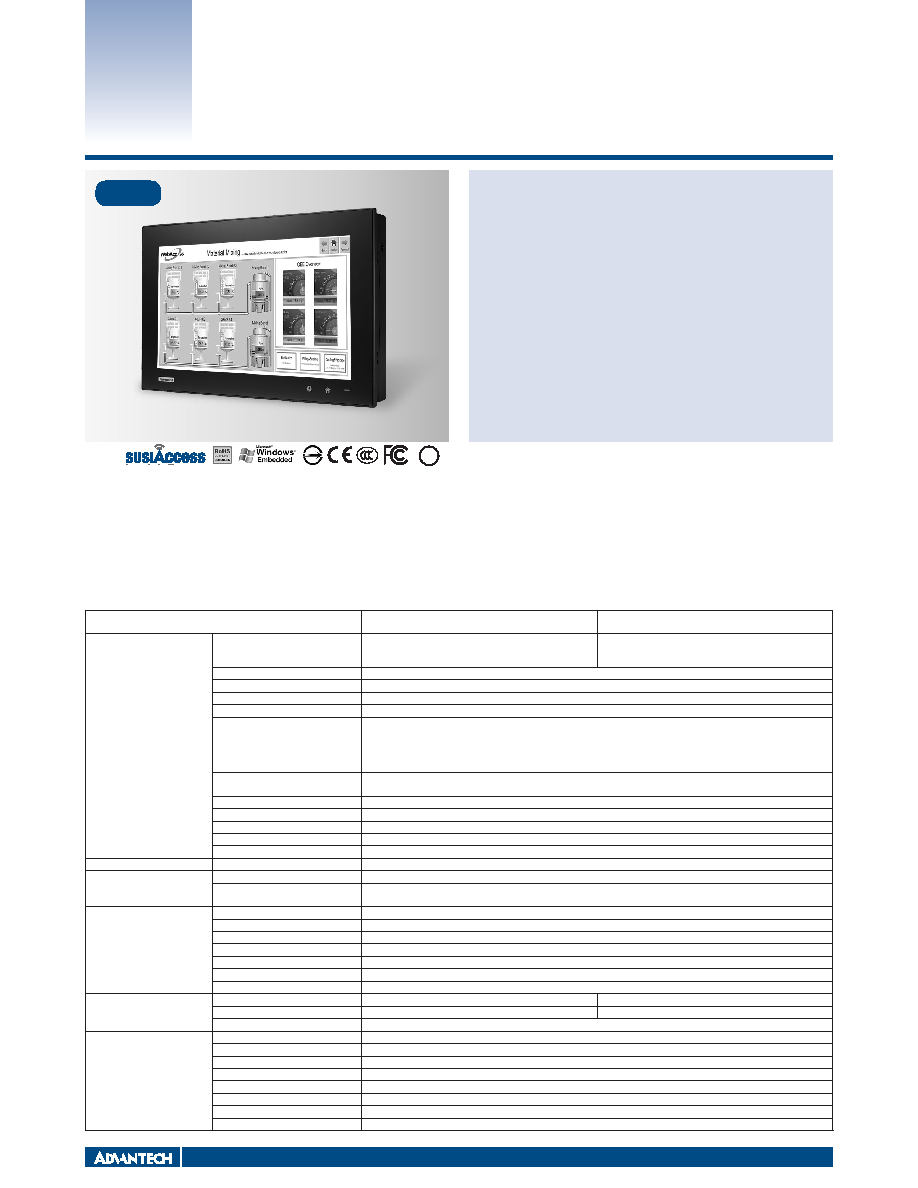

PPC-4151W

ƒ 15.6" WXGA entirely flat panel with Projected capacitive touchscreen

ƒ High performance Intel Core i CPU with Fanless design

ƒ PCIe x1 or PCI expansion support

ƒ Automatic data flow control over RS-485

ƒ Wide Range DC 9-32V support

ƒ Dual Gigabit Ethernet, support IEEE1588

ƒ 3 x Independent display

15.6" Fanless Wide Screen Panel PC

with Intel Core i5/i3/Celeron Processor

Introduction

The PPC-4151W is a new generation Panel PC with WXGA (1366 x 768) screen. The most important, system equips with high performance Intel Core i CPU but the heat can be

dispatched easily by high efficiency fanless thermal design. This makes HMI a big step forward to consolidate performance and reliability in one system. Besides, with rich I/O as 5

x COM, 5 x USB and dual Gigabit ethernet make it easier to connect to devices and be integrated into machine building industry. In addition, PCIe/PCI expansion to add on field bus

or proprietary card makes more application possibility. The last but not least, the multi touch screen makes the HMI more intuitive, brings you the best operate experience.

Specifications

PPC-4151W-P5AE

PPC-4151W-PCAE

PPC-4151W-R3AE

Processor system

CPU

Intel 4th Generation Core i CPU

i5-4300U, 2C, 3M, up to 2.9GHz

Celeron 2980U, 2C, 2M, 1.6GHz

Intel 4th Generation Core i CPU

i3-4010U,2C,3M

Memory

SO-DIMM x 1, DDR3L1333/1600, Max 8GB

2nd Cache Memory

3 MB / 2 MB

Storage

mSATA*1

HDD

1 x 2.5" SATA HDD Bay

I/O Ports

4 x USB 3.0 ports in rear side, 1 x USB 2.0 in right side

1 x Line-out, 1x MIC-in

1 x DB15 VGA

1 x Display Port (1.2)

Bus Expansion

1 x MINI PCIe,

1 x PCIe x1 or 1 x PCI(either one)

Network (LAN)

2 x 10/100/1000 Mbps Ethernet, Intel I211-AT, Intel I218LM

Speaker

2 x 1W

Watchdog Timer

255 timer levels; setup by software

Dimensions

419.7 x 269 x 59 mm

Weight

5.8 Kg

OS support

OS Support

Win 7/Win 8/Win 8.1/Linux

Power supply

Input Voltage

DC 9-32V

Power consumption

i5-4300U: 56W, i3-4010U:56W

Celeron 2980U: 45W (8G DDR3L, USB x 4, COM x 4, USB mouse, 2.5" HDD 500G, Win7 64bit, Burn-in 7.0 )

LCD Display

Display Type

15.6" TFT LCD (LED Backlight)

Max. Resolution

1366 x 768

Colors

16.7M

Viewing Angle

85 (left), 85 (right), 85 (up), 85 (down)

Luminance(cd/m2)

300

Brightness Control

Yes (by BIOS)

Backlight Lifetime

50, 000 hrs (typ.)

Touchscreen

Touch Type

Projected Capacitive multi touch 10 point

Resistive single touch

Light Transmission

88 % ± 2 %.

80 % ± 5 %

Controller

USB interface

Environment

Operating Temperature

0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD

Storage Temperature

-20 ~ 60° C (-4 ~ 140° F)

Relative Humidity

10 ~ 95% @ 40° C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64

EMC

BSMI, CE, FCC Class B

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 compliant

NEW

All product specifications are subject to change without notice

Last updated : 5-May-2015
