PPC-6170

A: AC Inlet

B: Power Switch

C: USB 3.0 x 2, USB 2.0 x 2

D: HDMI

E: VGA

F: Cable clip x 2

G: Gigabit Ethernet x 2

A B

D E

H

C

G

F

H: 2 Expansion slots

I: Line out / Mic in

J: USB 3.0 x 1

K: GPIO / RS-232 (by swapping pin header)

L: RS232 x 3

M: Isolated RS-232/422/485 (selecting by

BIOS)

I/O Placement

I

L

J

K

L

M

100.0

Max. depth for VESA mounting screws is 7.5 (mm)

75.0

425.1

377.8

113.5

442.0

CUT

OUT

427

Touchscreen

Touch Type

Analog Resistive 5-wire

Resolution

2048 x 2048

Light Transmission

81+/-3%

Controller

RS-232 interface (COM5), USB interface is available as an option

Software Driver Support

Windows 7, XP

Durability (Touches)

36 million

Environment

Operating Temperature

0 ~ 50°C (32 ~ 122°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Relative Humidity

10 ~ 95% @ 40°C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms, follows IEC 60068-2-64

EMC

BSMI, CE, FCC Class A

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 compliant

Ordering Information

Part No.

Description

PPC-6170-Ri5AE

Intel Core i5-3610ME (2.7G) Panel PC with 17" XGA LED

backlight and 5-wire resistive T/S, w/o memory

PPC-6170-Ri3AE

Intel Core i3-3120ME (2.4G) Panel PC with 17" XGA LED

backlight and 5-wire resistive T/S, w/o memory

PPC-6170-RC10AE

Intel Celeron 1020E (2.2G) Panel PC with 17" XGA LED

backlight and 5-wire resistive T/S, w/o memory

PPC-WLAN-A1E

WiFi Module with Antenna Cable 28cm for PPC

PPC-6150-PCIE

Riser card supports two PCI slots for PPC-6150/PPC-6170

PPC-6150-PCIEE

Riser card supports two PCIe x1 slots for PPC-6150/

PPC-6170

PPC-6150-HDDE

Kit to install the second 2.5" SATA HDD for PPC-6150/

PPC-6170, w/o HDD

PPC-6150-DVDE

Module with 8X SATA DVD-RW for PPC-6150/PPC-6170

PPC-174T-WL-MTE

Wall mount kit for PPC series

PPC-175 RACK-MT

19" Rack Mounting kit for PPC-175

PPC-ARM-A03

PPC ARM VESA Standard

PPC-174 Stand

Stand for PPC Series (double acting hinges)

1702002605

Power cord 90D 220V EUROPEAN 250V/6A, 1.8M

1702002600

Power cord UL/CSA(USA) 180D 125V/10A 1.83M

1700019336

Cable for an external 25-pin LPT port

2070013299

WES7P PPC-6150/70 32-bits V5.1.6 10multi-languages with

SUSI Access

2070013328

WES7P PPC-6150/70 64-bits V5.6.6 10multi-languages with

SUSI Access

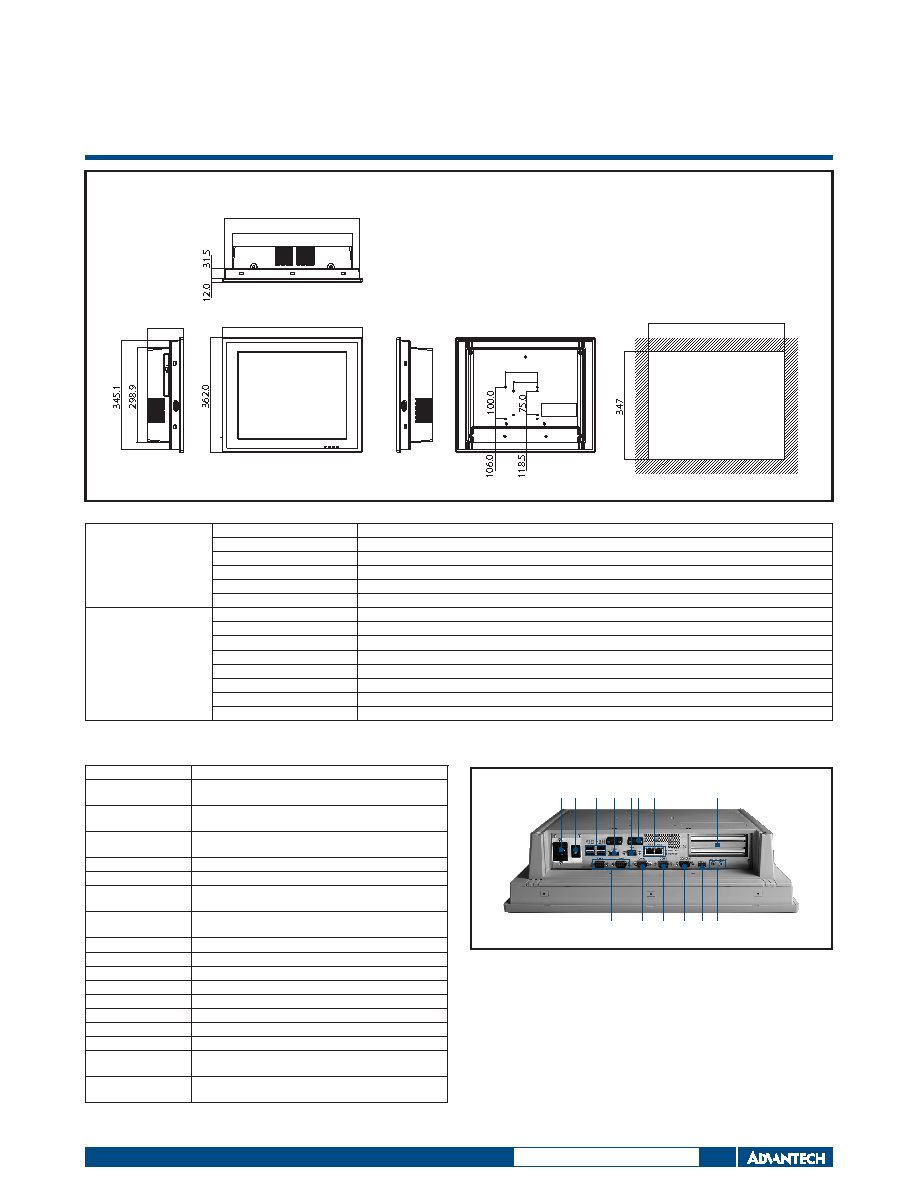

Dimensions

Unit: mm
