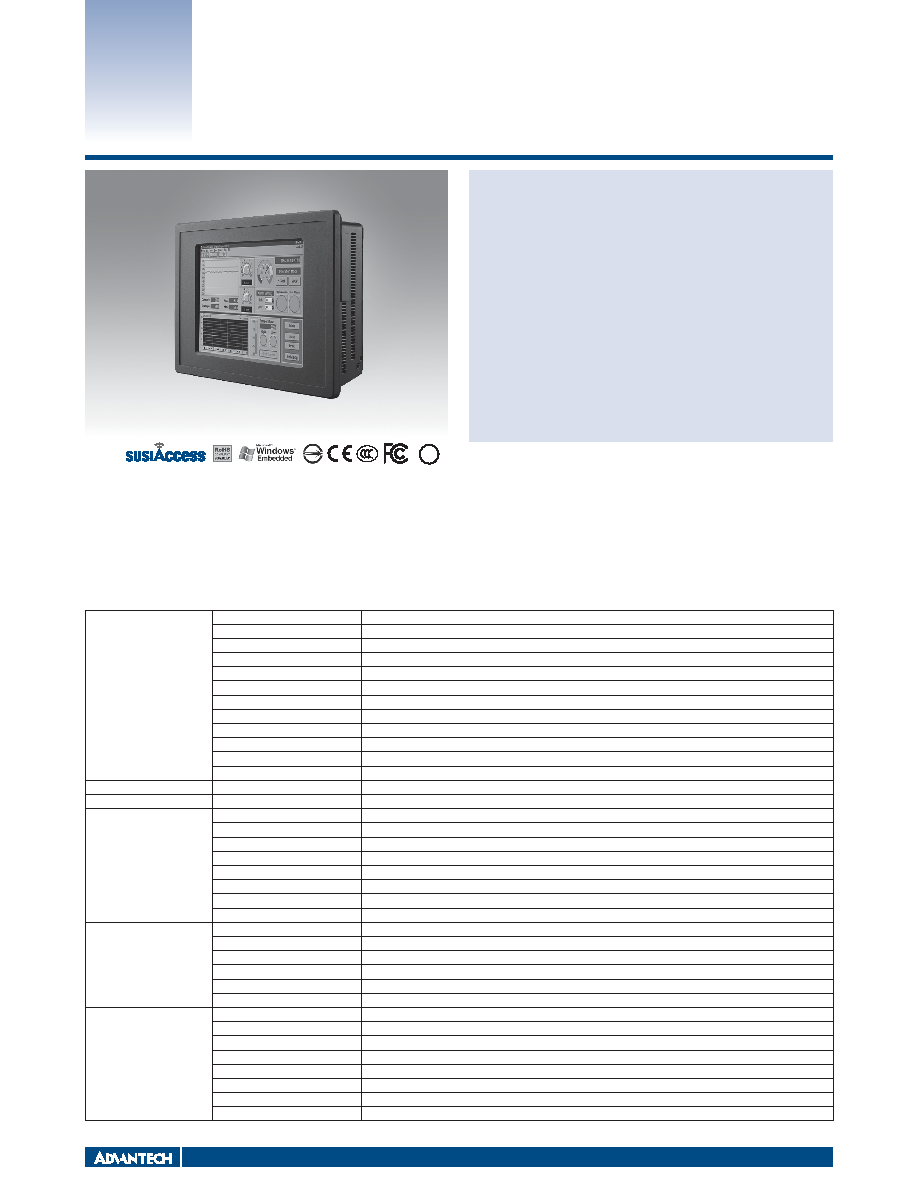

Industrial Panel Computers & Panel PC

Features

PPC-L62T

ƒ 6.5" TFT VGA LCD (LED Backlight)

ƒ System memory up to 2GB DDR3 SDRAM

ƒ One CFast socket

ƒ Fanless design and compact size

ƒ Aluminum front bezel

ƒ Dual Gigabit LAN support

ƒ Adjust RS-232/422/485 through BIOS

ƒ Automatic data flow control over RS-485

6.5" Fanless Panel PC with

Introduction

The PPC-L62T is a 6.5" industrial-grade Panel PC for compact applications for machine builders. The PPC-L62T is highly reliable because of its fanless design. The IP65 compliant

alumimum front bezel provides excellent protection especially in harsh environments (water and dust). The Dual Gigabit LAN provides reliable communication between mechine

and control unit and the teaming function enhances fault tolerance and load balancing. PPC-L62T supports the most popular operating systems, such as Microsoft Windows XP, XP

Embedded and Windows CE 6.0.

Specifications

Processor system

CPU

Intel Atom N455 1.66GHz Single Core CPU on board

Memory

SODIMM x 1, DDR3 667, Max 2GB

2nd Cache Memory

512 KB

Chipset

Intel ICH8M

SSD

CFast*1

HDD

1 x 2.5" external SATA HDD module (Optional)

I/O Ports

2 x Serial ports: RS-232x1;RS-232/422/485 x1; 4 x USB; 1 x Line-out

Bus Expansion

1x MINI PCIe

Network (LAN)

2 x 10/100/1000Mbps Ethernet

Watchdog Timer

255 timer levels; setup by software

Dimensions (W x H x D)

202 x 148 x 49 mm (7.9" x 5.82" x 1.92")

Weight

1.5 kg ( 3.30 lb)

OS Support

OS Support

Win XPE, Win XP Pro, WES7 32 bit, Win CE 6.0

Power Supply

Input Voltage

15-24VDC

LCD Display

Display Type

6.5" TFT LCD (LED Backlight)

Max. Resolution

640 x 480

Colors

262K

Dot Size (mm)

0.207 x 0.207

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

Luminance

700

Brightness Control

Yes (by BIOS)

Backlight Lifetime

50, 000 hrs

Touchscreen

Touch Type

Analog Resistive 5 wires

Resolution

2048 x 2048

Light Transmission

81%

Controller

RS-232 interface

Software Driver Supports

Windows 7, XP, CE

Durability (Touches)

36 million

Environment

Operating Temperature

0 ~ 50°C (32 ~ 122°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Relative Humidity

10 ~ 95% @ 40°C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64

EMC

BSMI, CE, FCC Class B

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 compliant

All product specifications are subject to change without notice

Last updated : 25-Mar-2014
