ACT Series

20.4 x 12.9 x 5.3mm

Pb

TTL OUTPUT FULL SIZE DIP 5.0V

CRYSTAL CLOCK OSCILLATOR

30332Esperanza, Rancho Santa Margarita, California92688

Revised: 09.23.13

Visit

ABRACON IS

CERTIFIED

ABRACON IS

ISO9001:2008

CERTIFIED

RoHS/RoHS II Compliant.

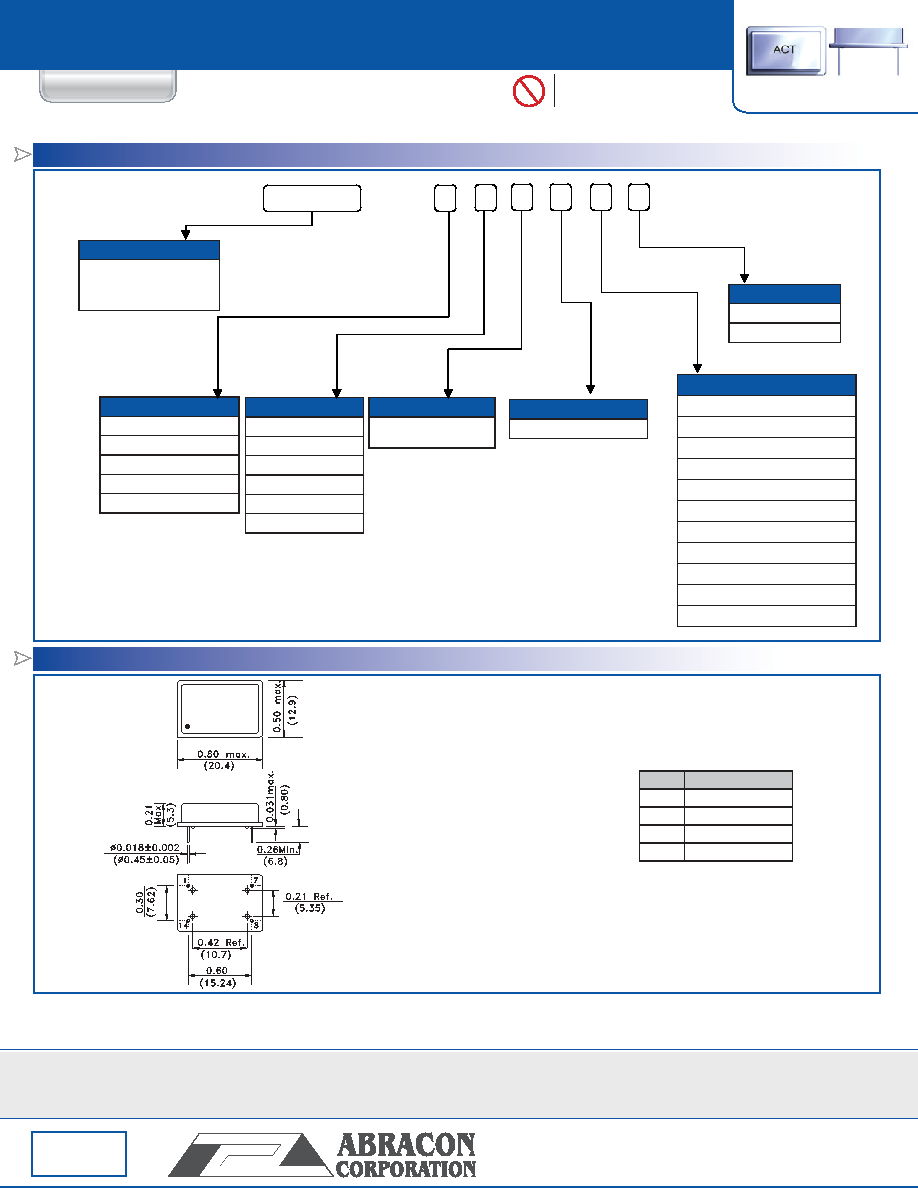

ACT-

MHz- - - - - -

Frequency in MHz

e.g. 24.576MHz

14.31818MHz

26.000MHz

Packaging

Blank: Tube

TY: Tray

Operating Temp.

I: 0°C ~ +50°C

E: -20°C ~ +70°C

F: -30°C ~ +70°C

N: -30°C ~ +85°C

L: -40°C ~ +85°C

Freq. Stability

Y5*: ± 15 ppm

J*: ± 20 ppm

R**: ± 25 ppm

K: ± 30 ppm

H: ± 35 ppm

C: ± 50 ppm

Pin form

G: Gull Wing

G3: Gull Wing

GHT: Gull Wing Reflow

Q45: 0.45” (11.43)

Q40: 0.40” (10.16)

Q35: 0.35” (8.89)

Q30: 0.30” (7.62)

Q25: 0.25” (6.35)

Q20: 0.20” (5.08)

Q15: 0.15” (3.81)

Q10: 0.10” (2.54)

Symmetry

S: 45/55%@1.4Vdc

For F<70MHz only

Tri-state

A: Tri-state on pin 1

Note:

*: Temp option I, E, -10 ~ +60°C only

**: Temp option I, E,F,N, -10 ~ +60°C only

OUTLINE DIMENSIONS:

Dimensions: inches (mm)

Pin

Function

1

Tri-State/NC

7

Case GND

8

Output

14

Vdd

tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where

component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and

authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.

Packaging: 25pcs /tube
