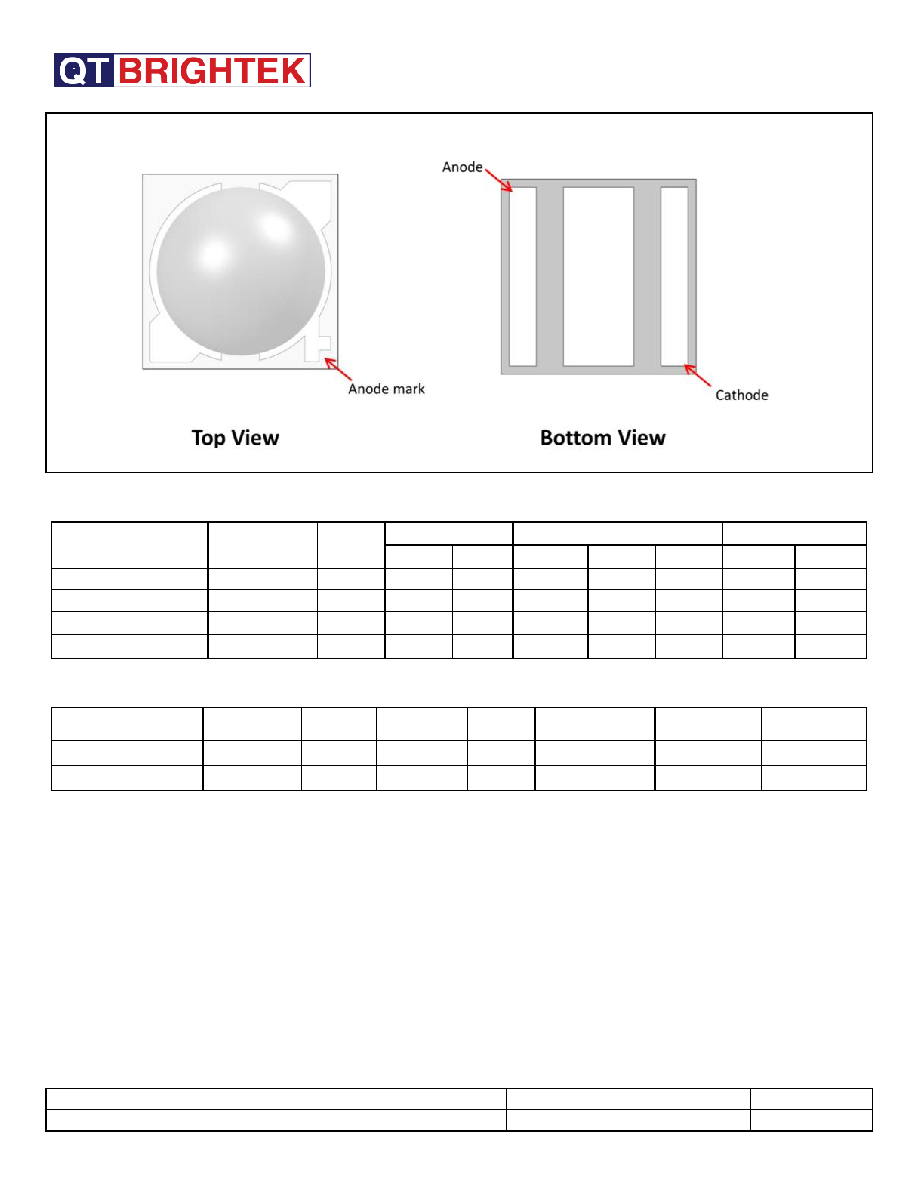

QBHP684U-XXV series
3W High Power LED
---------------------------------------------------------------------------------------------------------------------------------------
Product: QBHP684U-XXV Series
Date: April 28, 2015
Page 4 of 11
Version# 2.1
Pad Configuration:
Electrical / Optical Characteristic (TA=25
oC)
Product
Color
IF (mA)
VF (V)
λD (nm)
Φv (lm)
Typ.
Max.
Min.
Typ.
Max.
Min.
Typ.
QBHP684U-RV
Red
700
2.6
2.8
620
625
630
80
105
QBHP684U-YV
Yellow
700
2.6
2.8
585
590
595
65
70
QBHP684UE-IGV True Green
700
3.6
4.0
520
525
530
140
150
QBHP684UE-IBV
Blue
700
3.6
4.0
450
455
460
20
34
Absolute Maximum Rating
Material
Pd (mW)
IF (mA) IFP (mA)*
VR (V)
TOP (
oC)
TST (
oC)
TSOL (
oC)
AlInGaP (R/Y)
1.96
700
1000
5
-40 to +85
-40 to +100
240
InGaN (IB/IG)
2.66
700
1000
5
-40 to +85
-40 to +100
240
*Duty 1/10 @ 0.1ms Pulse Width
