2-Wire-Interfaced, 2.5V to 5.5V, 20-Port or

28-Port I/O Expander

10

______________________________________________________________________________________

Operation with Multiple Masters

If the MAX7300 is operated on a 2-wire interface with

multiple masters, a master reading the MAX7300 should

use a repeated start between the write, which sets the

MAX7300’s address pointer, and the read(s) that takes

the data from the location(s). This is because it is possi-

ble for master 2 to take over the bus after master 1 has

set up the MAX7300’s address pointer, but before

master 1 has read the data. If master 2 subsequently

changes, the MAX7300’s address pointer, then master

1’s delayed read can be from an unexpected location.

Command Address Autoincrementing

Address autoincrementing allows the MAX7300 to be

configured with the shortest number of transmissions

by minimizing the number of times the command

address needs to be sent. The command address

stored in the MAX7300 generally increments after each

data byte is written or read (Table 4).

Initial Power-Up

On initial power-up, all control registers are reset and

the MAX7300 enters shutdown mode (Table 6).

Transition (Port Data Change) Detection

Port transition detection allows seven maskable ports

P24 to P30 to be continuously monitored for changes in

their logic status (Figure 10). Enable transition detec-

tion by setting the M bit in the configuration register

(Table 9) after setting the mask register. If port 31 is

configured as an output (Tables 1 and 2), then P31

automatically becomes an interrupt request (IRQ) out-

put to flag detected transitions. Port 31 can be config-

ured and used as a general-purpose input port instead,

if not required for use as the IRQ output.

The mask register determines which of the seven ports

P24 to P30 are monitored (Table 10). Set the appropri-

ate mask bit to enable that port for transition detect.

Clear the mask bit if transitions on that port are to be

ignored by the transition detection logic. Ports are mon-

itored regardless of their I/O configuration, both input

and output.

SCL

SDA

BY TRANSMITTER

CLOCK PULSE FOR ACKNOWLEDGMENT

START CONDITION

SDA

BY RECEIVER

12

8

9

S

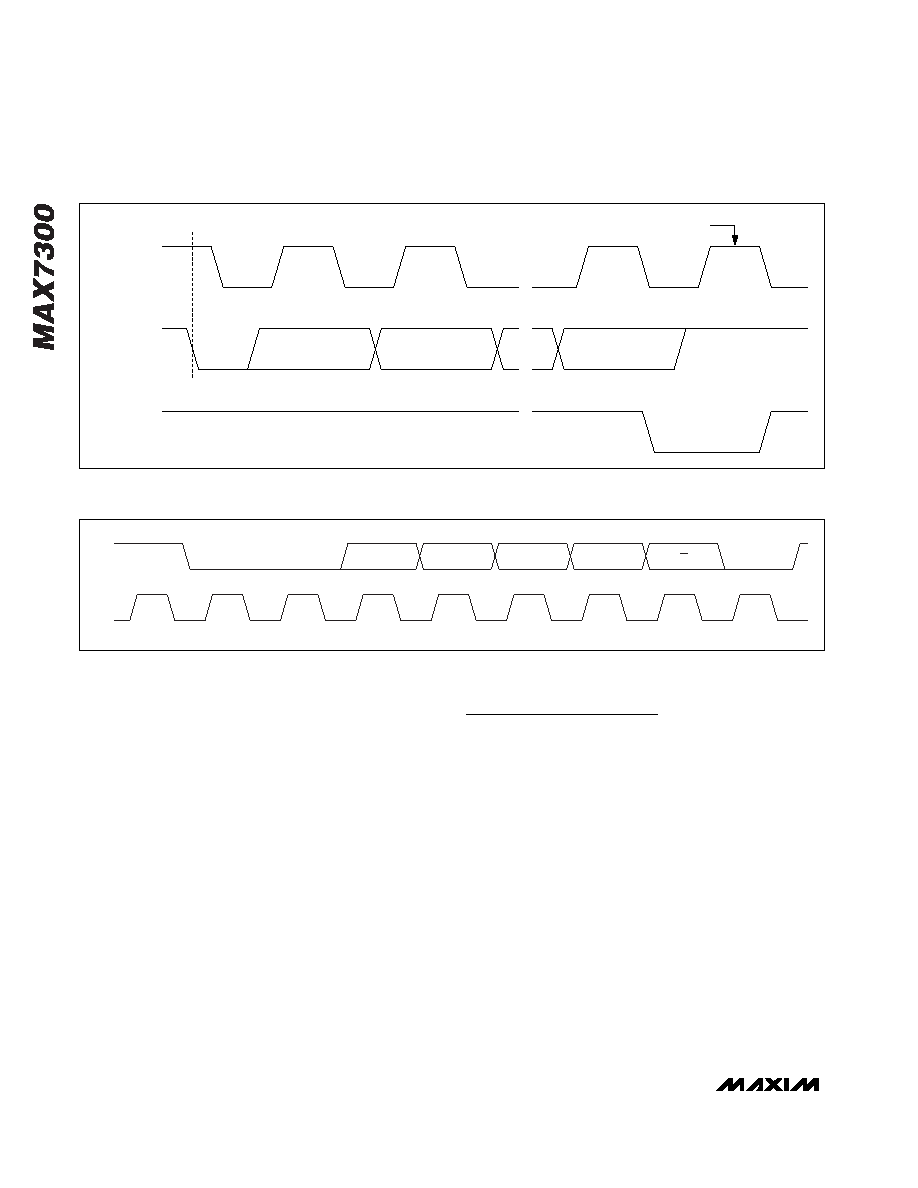

Figure 5. Acknowledge

SDA

SCL

1

0

A3

A2

A1

A0

0

MSB

LSB

R/W

ACK

Figure 6. Slave Address
