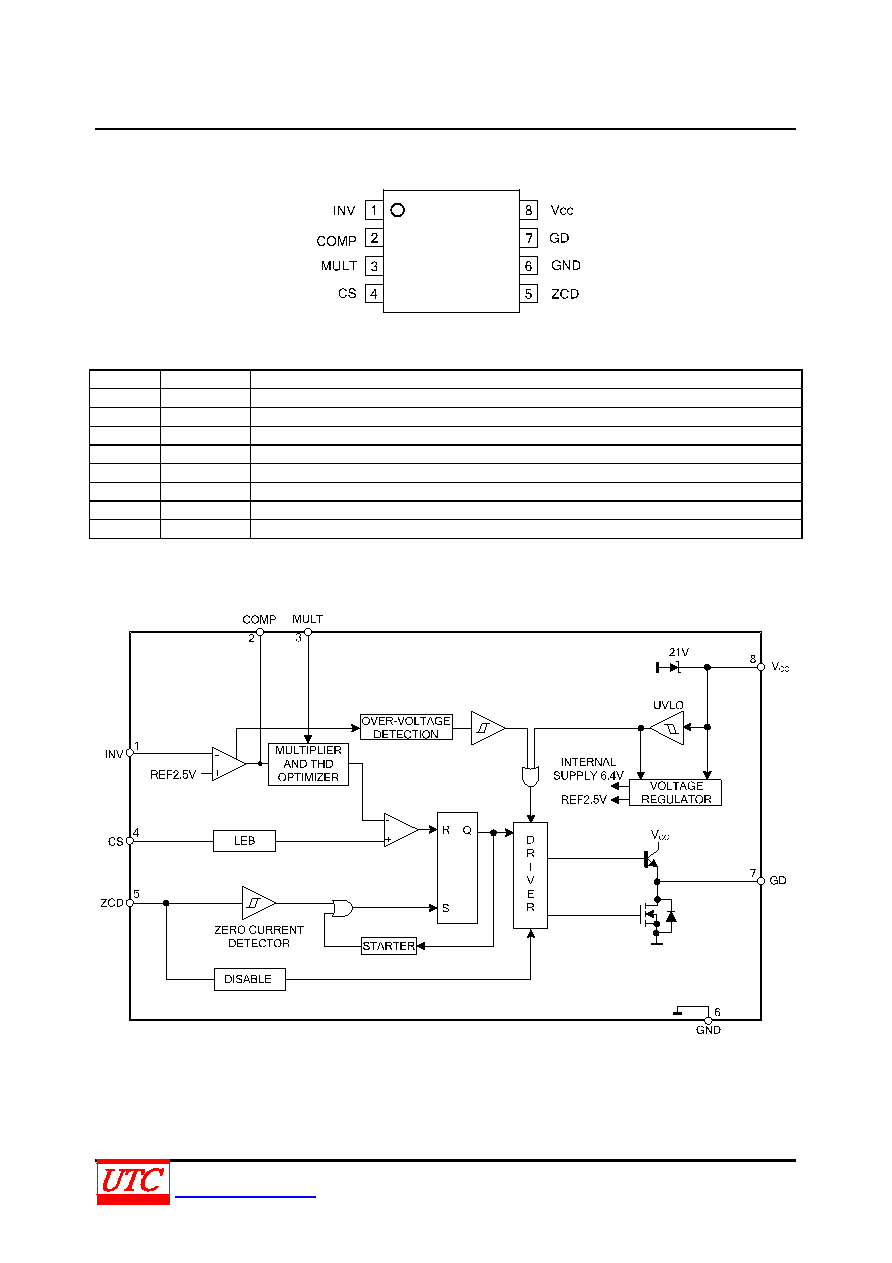

L8562
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 6
www.unisonic.com.tw
QW-R119-018.C
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO
PIN NAME
DESCRIPTION
1
INV
Inverting input of the error amplifier.
2
COMP
Output of the error amplifier.
3
MULT
Input of the multiplier stage.
4
CS
Input of the current sense stage.
5
ZCD
Input of the zero current detection .
6
GND
Ground.
7
GD
Gate driver output.
8
VCC
Voltage supply.
BLOCK DIAGRAM
