Designed for permanent mounting through a

metal surface such as an automobile roof or

trunk, the compact RMS Series offers excellent

performance in a durable and unobtrusive

housing. The antenna may be operated at either

or both of two frequency bands. It is supplied

with 14.1 feet (4.3m) of RG-58 cable and can be

terminated in an FCC Part 15 compliant RP-

SMA connector or a TNC connector.

Features

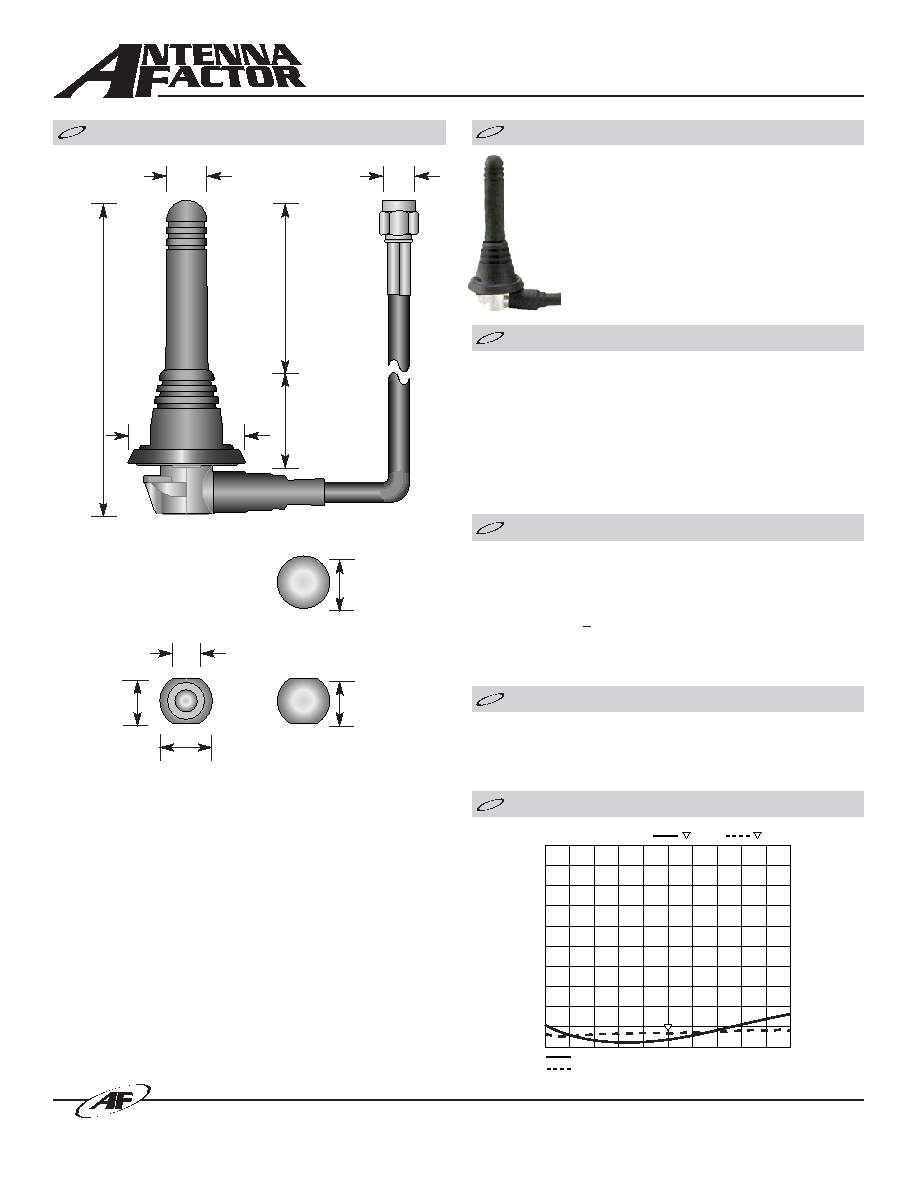

ANT-DB1-RMS-xxx DATA SHEET

Product Dimensions

Description

0.31”

(8.0)

0.39”

(10.0)

3.06”

(77.8)

1.65”

(42.0)

0.93”

(23.6)

1.14”

(29.0)

Standard

0.525-0.550”

(13.34-13.97)

Anti-Rotation

0.452-0.455”

(11.48-11.56)

0.52”

(13.1)

0.44”

(11.3)

Suggested Mounting Holes

Electrical Specifications

Ordering Information

Rev 09-9-08

Antenna Factor 159 Ort Lane Merlin, OR 97532 www.antennafactor.com

541-956-0931 (phone) 541-471-6251 (fax)

VSWR Graph

Typical VSWR

S11 SWR

1.894

CENTER

868.000MHz

CENTER 1 800.000MHz

SPAN 200.000MHz

1.221

0.28”

(7.0)

• Dual-band (860-960MHz and 1.8GHz)

• Compact & unobtrusive

• Through-hole mount

• Low VSWR

• Excellent performance

• Omni-directional pattern

• Fully weatherized

• Rugged & damage-resistant

• RP-SMA or TNC connector

• Freq. Bands. Band 1 860-960MHz

Band 2 1.8GHz

• Bandwidth

200MHz

• Wavelength

1/4-wave

• VSWR

<2.0 typ. at center

• Impedance

50 ohms

• Connector

RP-SMA or TNC

• Cable

14.1’ RG-58 coax

• ANT-DB1-RMS-RPS (with RP-SMA connector)

• ANT-DB1-RMS-TNC (with TNC connector)
