Features

Product Dimensions

Description

Electrical Specifications

Ordering Information

Rev 07-22-08

Antenna Factor 159 Ort Lane Merlin, OR 97532 www.antennafactor.com

541-956-0931 (phone) 541-471-6251 (fax)

VSWR Graph

0.55”

(14.0)

Designed for permanent mounting through a metal

surface such as an automobile roof or trunk, this

compact

RMT

antenna

offers

outstanding

performance in a durable and futuristic housing. The

antenna may be operated at either or both of two

frequency bands. It is supplied with 14.1 feet (4.3m)

of RG-58 cable and can be terminated in an FCC Part

15 compliant RP-SMA connector or a TNC connector.

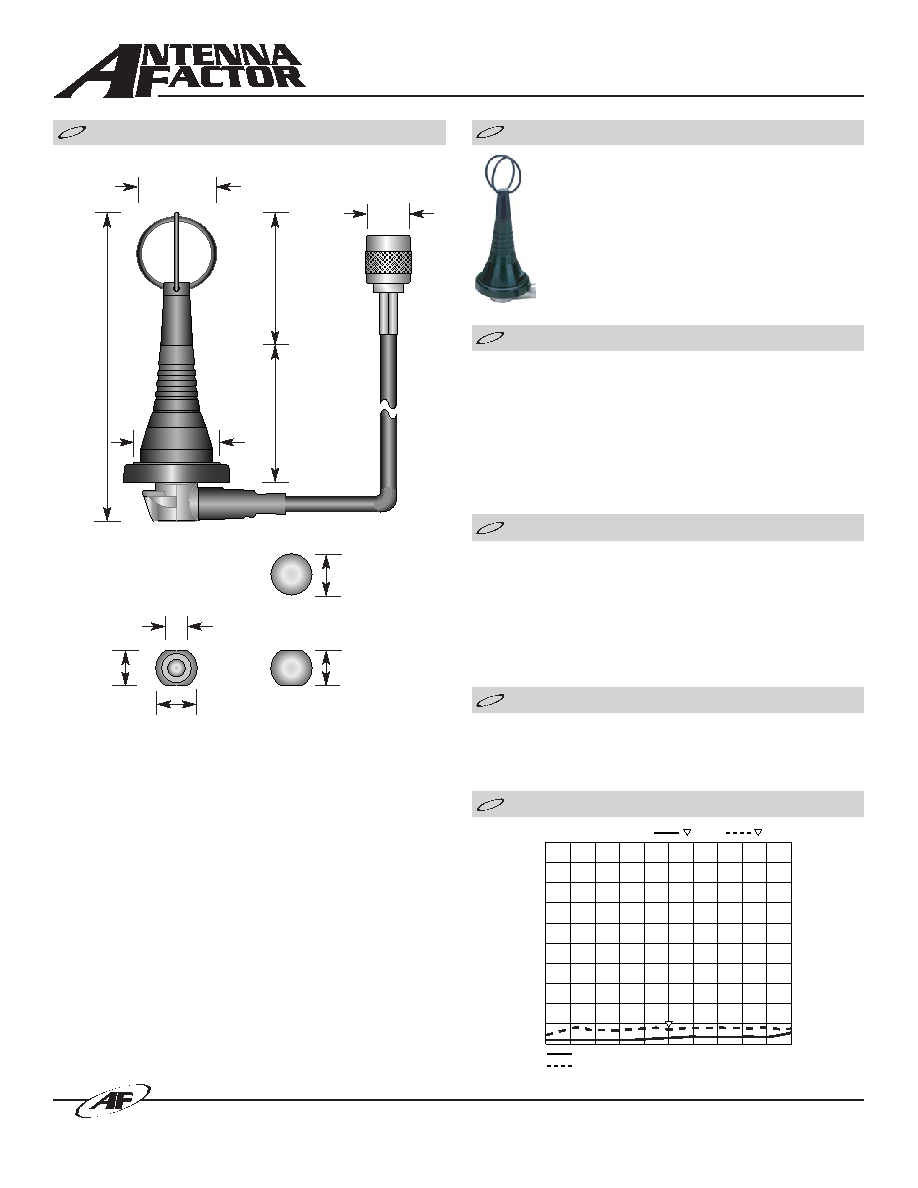

ANT-DB1-RMT-xxx DATA SHEET

1.08”

(27.4)

1.65”

(41.9)

1.73”

(44.0)

1.08”

(27.5)

0.28”

(7.0)

Standard

0.525-0.550”

(13.34-13.97)

Anti-Rotation

0.452-0.455”

(11.48-11.56)

0.52”

(13.1)

0.44”

(11.3)

Suggested Mounting Holes

3.69”

(93.7)

Typical VSWR

S11 SWR

1.791

CENTER

868.000MHz

CENTER 1 800.000MHz

SPAN 200.000MHz

1.354

• Dual-band (860-960MHz and 1.8GHz)

• Compact & futuristic

• Through-hole mount

• Low VSWR

• Excellent performance

• Omni-directional pattern

• Fully weatherized

• Durable construction

• RP-SMA or TNC connector

• Freq. Bands. Band 1 860-960MHz

Band 2 1.8GHz

• Bandwidth

200MHz

• Wavelength

1/4-wave

• VSWR

<1.5 typ. at center

• Impedance

50 ohms

• Connector

RP-SMA or TNC

• Cable

14.1’ RG-58 coax

• ANT-DB1-RMT-RPS (with RP-SMA connector)

• ANT-DB1-RMT-TNC (with TNC connector)
