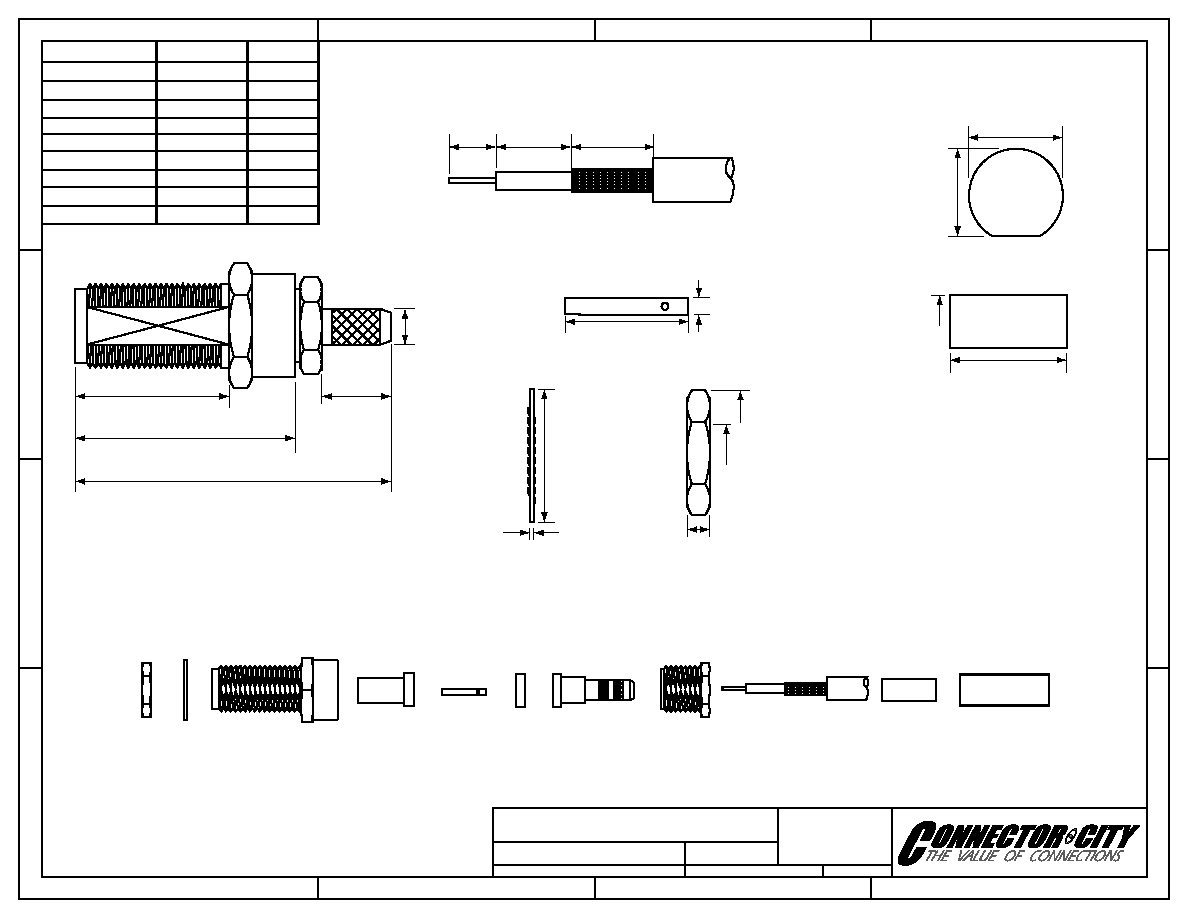

SMA FEMALE BULKHEAD MOUNT

CABLE END CRIMP FOR RG178 CABLE

RECOMMENDED

MOUNTING HOLE

∅0.254

(6.50)

0.234

(6.00)

0.197

(5.00)

0.276

(7.00)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.134

(3.40)

RG-178 Cable

CONREVSMA005 ASSEMBLY INSTRUCTIONS

1.

Insert the center conductor through the retaining nut, shield sleeve, and spacer.

2.

Solder the pin to the center conductor.

3.

Insert the pin into the pin insulator, then screw the main body onto the retaining nut.

4.

Wrap the braid around the tail of the body and crimp the ring with a

hex crimp tool.

5.

Use the shrink wrap to cover the crimp ring.

6.

Use the nut and washer to secure the connector to a case.

PIN INSULATOR

SHRINK WRAP

CRIMP RING

RETAINING NUT

SHIELD SLEEVE

SPACER

MAIN BODY

WASHER

NUT

STRIPPED CABLE

Description

Material

Finish

Nut

Washer

Main Body

Nickel

Nickel

Nickel

Brass

Brass

Brass

Pin Insulator

Teflon

Teflon

Socket

Gold

BE CU

Spacer

Teflon

Teflon

Shield Sleeve

Nickel

Brass

Retaining Nut

Nickel

Brass

Crimp Ring

Nickel

Brass

CONNECTOR CITY

159 ORT LANE

MERLIN, OR 97532

PH (541)-471-6256

FAX (541)-471-6251

Date:

Sheet 1 of 1

Revision:

Title

Part No.

Dimensions:

CONSMA005-R178

1.0

INCHES (mm)

5/29/2007

Ø0.402

(10.20)

0.020

(0.50)

0.065

(1.65)

1/4-36UNS-2B

THREADS

H8

0.236

(6.00)

Ø0.126

(3.20)

0.446

(11.40)

0.636

(16.30)

0.917

(23.30)

0.010

(5.00)

∅0.079

(2.00)

1/4-36UNS-2A

THREADS

SIDE VIEW

CRIMP RING

WASHER

NUT

0.354

(9.00)

∅0.049

(1.24)

SOCKET

SOCKET
