NOTES: (UNLESS OTHERWISE SPECIFIED)

1. ALL DIMENSIONS ARE IN INCHES [mm].

2. DIMENSIONS APPLY AFTER FINISHING.

3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.

4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.

REVISIONS

REV

A Add heat shrink, new frame, revised stripping instruct./dims

4/21/10

CJ

DESCRIPTION

DATE

APPV

SHEET 1 OF 1

LDCFDCC_A

SCALE: 2:1

TITLE:

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

ANGLES: 1

TOLERANCES:

.020 [0.50]-.200 [5.00]= .008 [0.20]

.200 [5.00]-1.200 [30.00]= .016 [0.40]

1.20 [30.0]-4.75 [120.0]= .024 [0.60]

4.75 [120.0]-12.40 [315.0]= .040 [1.0]

DRAWN:

ENGR:

DT:

DT:

MATERIAL:

FINISH:

PROJECTION:

THAT IS THE SOLE PROPERTY OF CONNECTOR CITY, AND SHALL BE

TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS

DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF CONNECTOR CITY OR ITS

DESIGNATED AGENTS.

159 ORT LANE

MERLIN, OR 97532

Description

Material

Finish

Body

Socket

Insulation

Nickel

Teflon

Gold

Teflon

Spacer

Teflon

Teflon

O Ring

Rubber

Si Rubber

Washer

Nickel

Brass

Nut

Nickel

Brass

Support

Nickel

Brass

Heat Shrink

Black

Polyolefin

Brass

BE CU

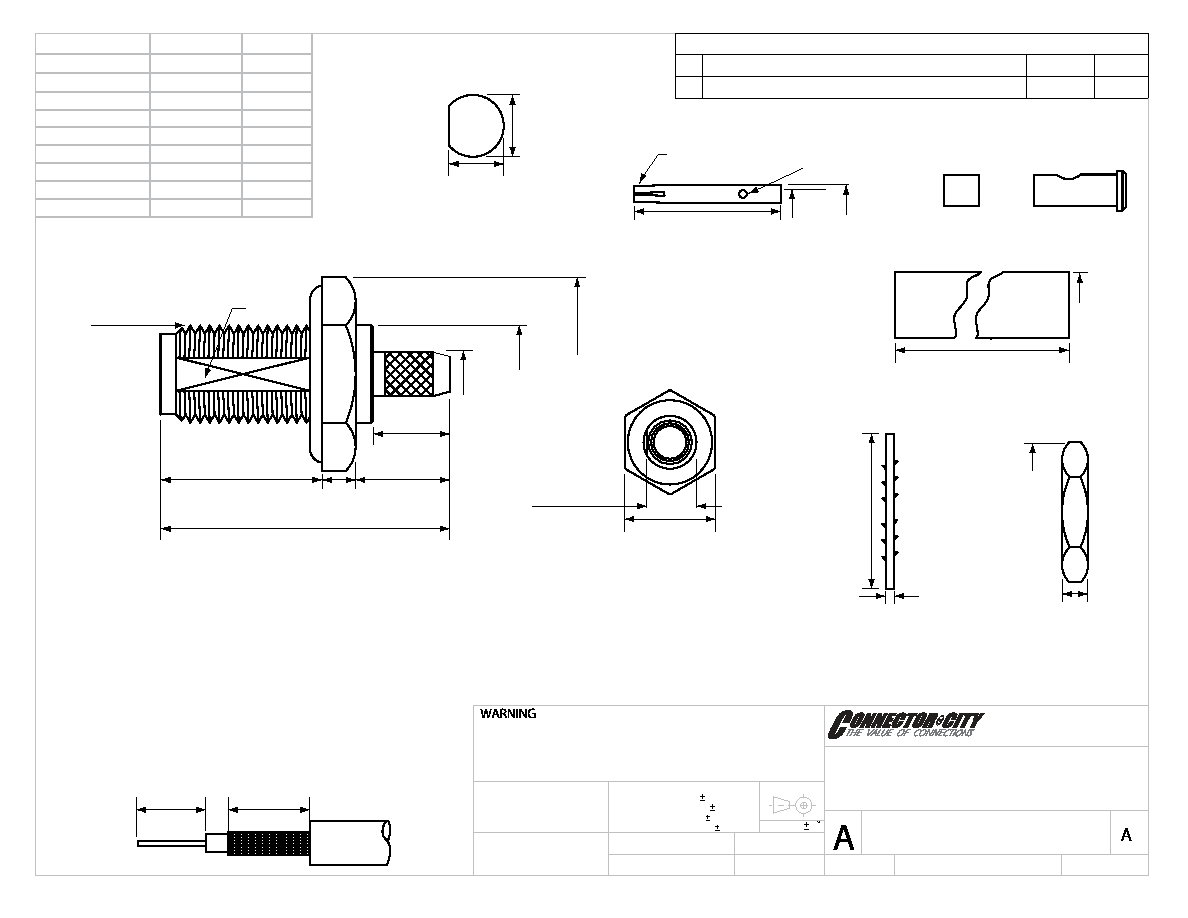

CONSMA014-R178

SMA FEMALE BULKHEAD MOUNT CABLE

END CRIMP WITH O-RING FOR RG178 CABLE

CJ

4/21/10

0.197

(5.00)

0.032

(0.80)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.217

(5.50)

RG-178 Cable

Ø0.256

(6.50)

0.236

(6.00)

RECOMMENDED

MOUNTING HOLE

0.065

(1.65)

1/4-36UNS-2B

THREADS

H0.315

(8.00)

0.020

(0.50)

Ø0.402

(10.20)

0.433

(11.00)

FLAT 0.228

(5.80)

0.197

(5.00)

0.248

(6.30)

0.083

(2.10)

0.417

(10.60)

0.748

(19.00)

FLAT 0.228

(5.80)

Ø0.102

(2.60)

Ø0.236

(6.00)

H0.433

(11.00)

1/4"-36UNS-2A

THREADS

0.354

(9.00)

Ø0.049

(1.24)

Ø0.016

(0.40)

PIN CHUCK

0.2x2x2 GROOVE

Ø0.020

(0.50)

CONSMA014-R178 ASSEMBLY INSTRUCTIONS

1. Strip the cable to the recommended dimensions.

2. Slide the coax into the support until the outside insulation bottoms out

against the inside shoulder of the support.

3. Solder the support onto the braid.

4. Place the spacer onto the center conductor.

5. Solder or crimp the socket onto the center conductor.

6. Insert the socket, center conductor, spacer, and support into the body

until the top of the socket is even with the white insulation in the body.

7. Crimp the tail of the body onto the support with a 0.093” hex crimp tool.

SPACER

SUPPORT

SIDE VIEW

BACK VIEW

WASHER

NUT

SOCKET

HEAT SHRINK

0.787

(20.00)

Ø0.118

(3.00)
