SPEC NO: DSAK7902

REV NO: V.8B

DATE: SEP/28/2015

PAGE: 1 OF 6

APPROVED: Wynec

CHECKED: Allen Liu

DRAWN: M.Liu

ERP: 1203011312

1.6x0.8x0.5mm BI-COLOR SURFACE MOUNT

LED

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Part Number: APHB1608ZGSYKC

Green

Super Bright Yellow

Features

1.6mmX0.8mm SMD LED, 0.5mm thickness.

Compatible with reflow soldering.

Available in various color combination.

Package: 2000pcs / reel .

Moisture sensitivity level : level 3.

Tinned pads for improved solderability.

RoHS compliant.

Descriptions

The Green source color devices are made with InGaN

on Sapphire Light Emitting Diode.

The Super Bright Yellow device is made with AlGaInP (on

GaAs substrate) light emitting diode chip.

Electrostatic discharge and power surge could damage

the LEDs.

It is recommended to use a wrist band or anti-

electrostatic glove when handling the LEDs.

All devices, equipments and machineries must be

electrically grounded.

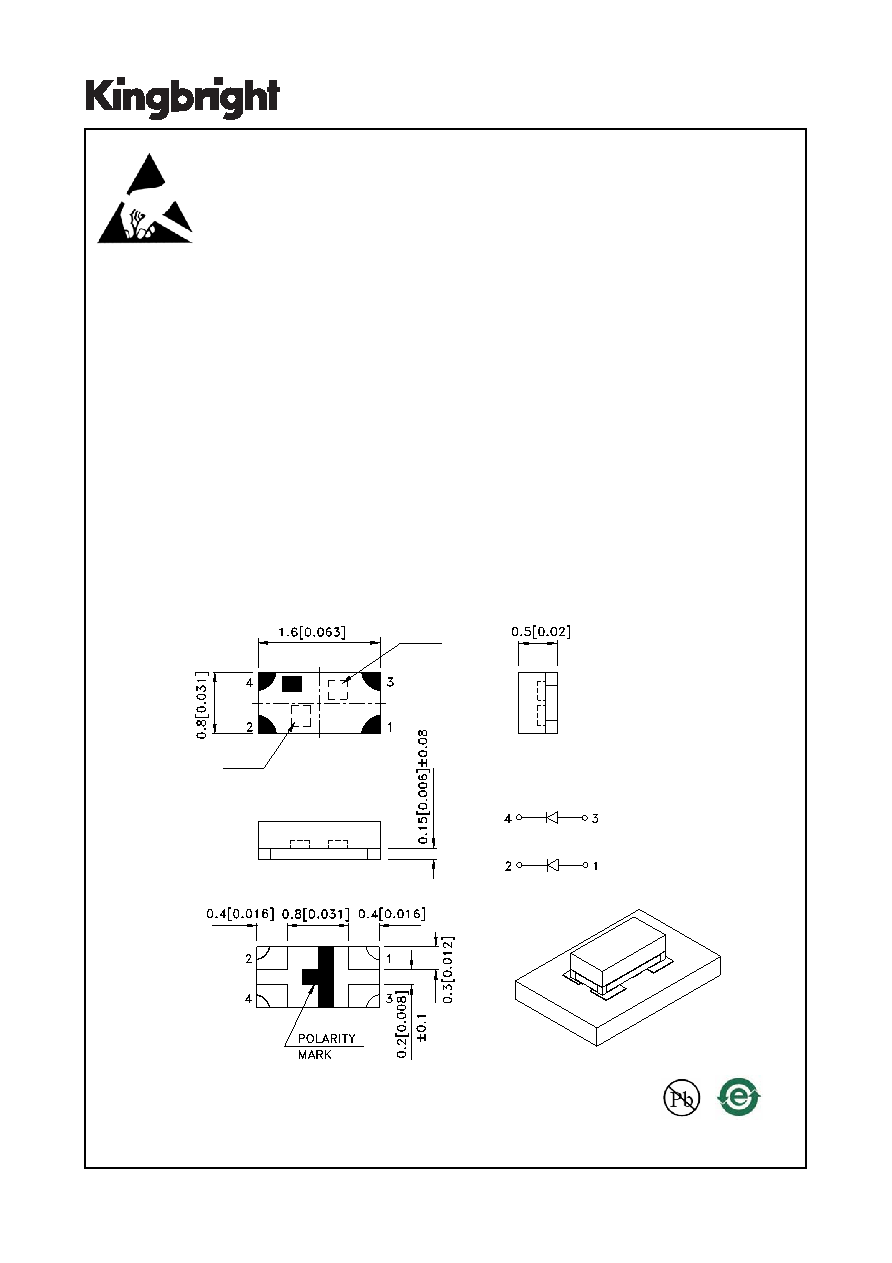

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.15(0.006") unless otherwise noted.

3.The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4.The device has a single mounting surface. The device must be mounted according to the specifications.

GREEN

GREEN

YELLOW

YELLOW
