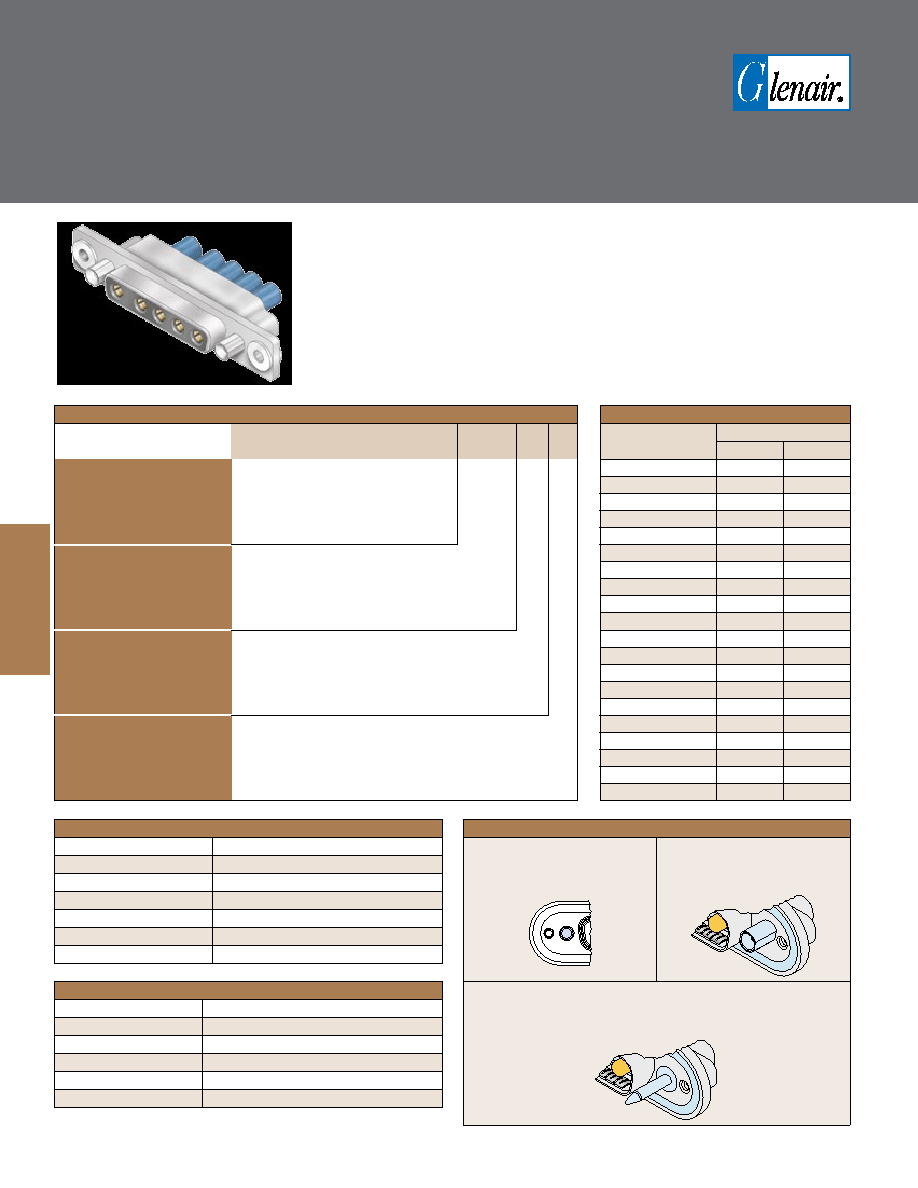

C-32

© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324

series 28

HiPer-D Combo Connectors

C

Ordering Information

Sample Part Number

280-059S

5-24W7 ME G

Basic Part Number

280-059S

Shell Size-

Contact Arrangement

Contact Arrangements are shown in the adjacent

table

Shell Finish

Mating Hardware

Materials and Finishes

Shell

Aluminum alloy

Contacts

Copper alloy, 50 microinches gold

Insulators

Thermoset epoxy

Retention Clips

Copper alloy

Grommet, O-ring

Fluorosilicone rubber

Hardware

300 series stainless steel

Specifications

Current Rating

#20 7.5 AMPS, #8 40 AMPS

Test Voltage

1000 VAC RMS

Insulation Resistance

5000 megohms minimum

Operating Temperature

-65° C. to +200° C.

Ingress Protection

IP 67

Shock

300 g.

Vibration, Random

43.92 g.

Combo HiPer-D float mount connectors for blind mate applications feature size

#20 signal contacts and size #8 power or coax contacts. Size #8 contacts are

ordered separately. The HiPer-D features a rugged machined aluminum shell and

wire grommet for environmental protection. Size #20 contacts are packaged with

connector. Terminate contacts with crimp tools purchased separately. Glass-reinforced

thermoset epoxy insulators, copper alloy retention clips. Fluorosilicone rear grommet

meets IP67 immersion requirement. 1000 VAC, 7.5 Amps (#20), up to 40 Amps with

size #8 power contacts.

Contact Arrangements

Shell Size-

Contact Arr.

Contact Size and Qty

#20

#8

1-2W2

2

1-5W1

4

1

2-3W3

3

2-7W2

5

2

2-11W1

10

1

3-5W5

5

3-9W4

5

4

3-13W3

10

3

3-17W2

15

2

3-21W1

20

1

4-8W8

8

4-13W6

7

6

4-17W5

12

5

4-21WA4

17

4

4-25W3

22

3

4-27W2

25

2

5-24W7

17

7

5-36W4

32

4

5-43W2

41

2

5-47W1

46

1

280-059S float mount combo socket connectors for blind mating, crimp

termination

Mating Hardware

N

No Hardware

#8-32 tapped hole

B

Female Guide Bushings

Non-removable

G

Male Guide Pins

Non-removable
