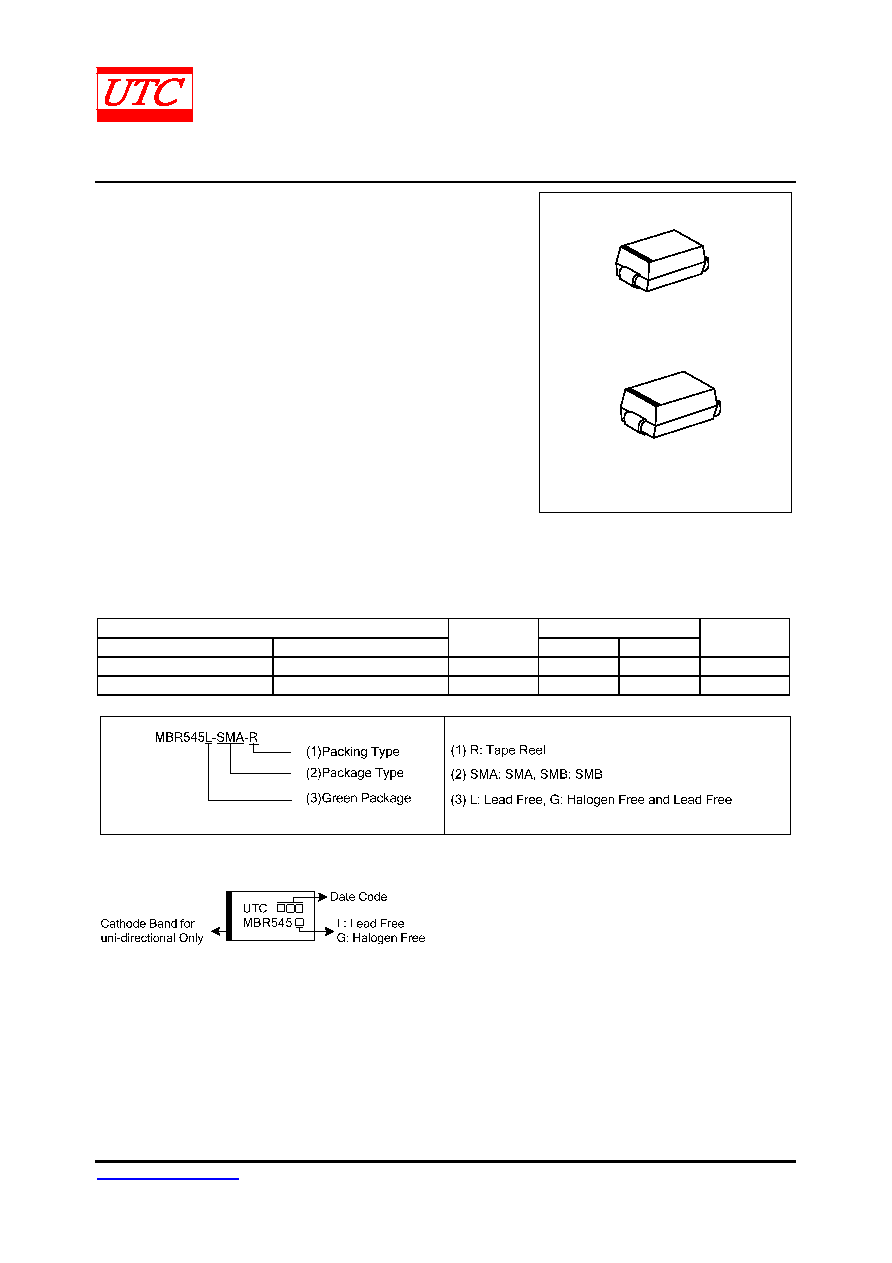

UNISONIC TECHNOLOGIES CO., LTD

MBR545

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R601-229.b

SCHOTTKY BARRIER

RECTIFIER



DESCRIPTION

The UTC MBR545 is a schottky barrier rectifier, it uses UTC’s

advanced technology to provide customers with low forward voltage

drop, high current capability and high efficiency, etc.

The UTC MBR545 is suitable for use in free wheeling, high

frequency inverters, low voltage and polarity protection applications.



FEATURES

* Low forward voltage drop

* High efficiency

* Low power loss

* High surge capability

* High current capability

SMB

(JEDEC DO-214AA)

+

-

SMA

(JEDEC DO-214AC)

+

-



ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

Packing

MBR545L-SMA-R

MBR545G-SMA-R

SMA

K

A

Tape Reel

MBR545L-SMB-R

MBR545G-SMB-R

SMB

K

A

Tape Reel

Note: Pin Assignment: A: Anode

K: Cathode



MARKING
