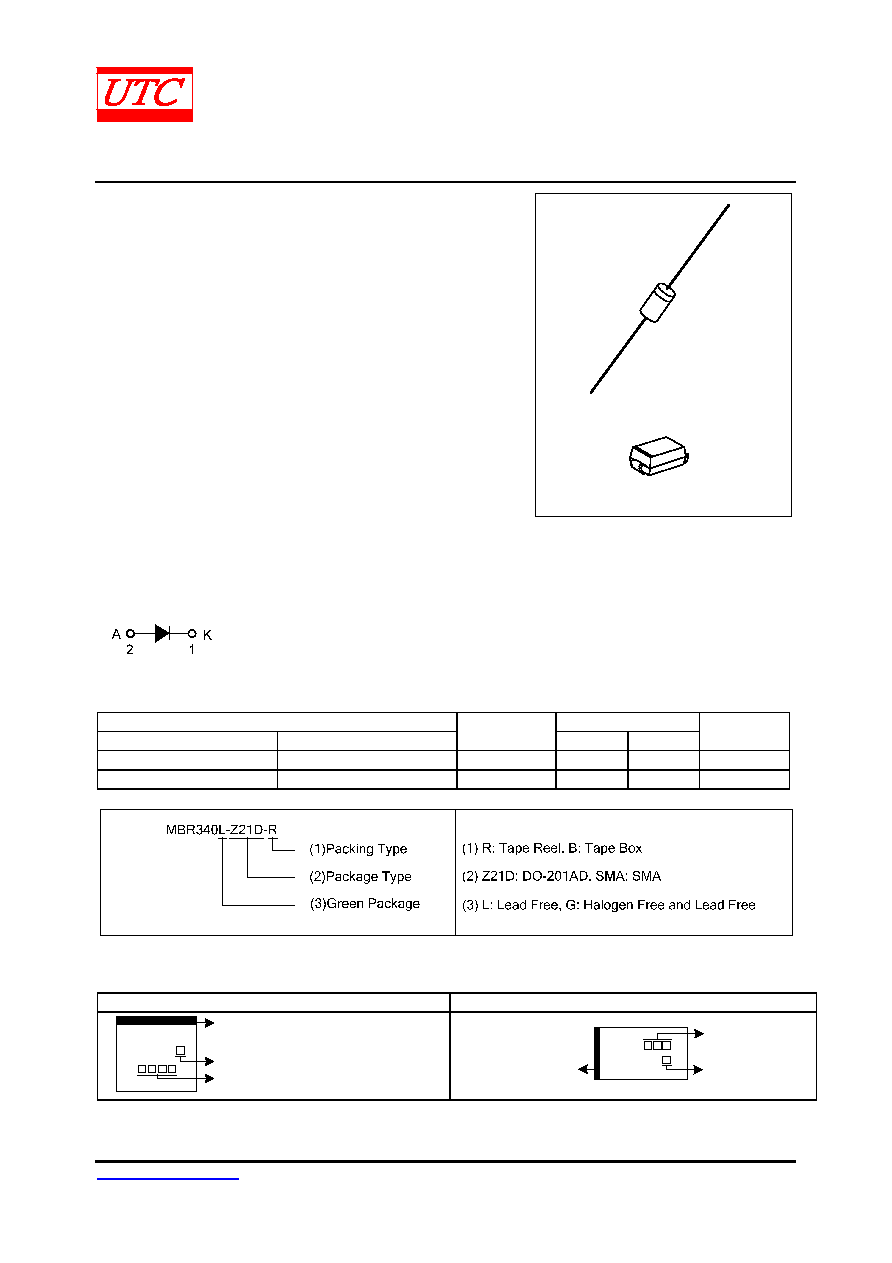

UNISONIC TECHNOLOGIES CO., LTD

MBR340

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R601-271.d

3.0A, 40V SCHOTTKY

BARRIER RECTIFIER



DESCRIPTION

The UTC MBR340 is a 3.0A schottky barrier rectifier, it uses

UTC’s advanced technology to provide the customers with high

surge capability, high efficiency, high current capability, low power

loss and low forward voltage drop, etc.

The UTC MBR340 is suitable for free wheeling and polarity

protection, etc.

* Low Reverse Current

* Low Stored Charge, Majority Carrier Conduction

* Low Power Loss/High Efficiency

* Highly Stable Oxide Passivated Junction



SYMBOL

DO-201AD

SMA

(JEDEC DO-214AC)

+

-



ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

Packing

MBR340L-Z21D-B

MBR340G-Z21D-B

DO-201AD

K

A

Tape Box

MBR340L-SMA-R

MBR340G-SMA-R

SMA

K

A

Tape Reel

Note: Pin Assignment: A: Anode

K: Cathode



MARKING

DO-201AD

SMA

MBR340

Date Code

L: Lead Free

G: Halogen Free

Cathode Band for uni-directional Only

Date Code

Cathode Band for

uni-directional Only

UTC

MBR340

L: Lead Free

G: Halogen Free
