Doc. No. PBC9 Rev.C 28-4-11

350

FEATURES

•

Universal input 90 - 256VAC

•

DC input voltage 120-370Vdc

•

Compact and robust design with easy mounting on

TS35 Din-Rail

•

High efficiency up to 76%

•

Short circuit protection

•

Internal input filter

•

Operational temperature between -20°C to +71°C

•

Local and international Approvals; C-Tick, CE, UL,

cUL, TUV

INPUT

Input voltage range

90-264VAC

Input current

Vi: 115/230VAC, 200/130mA

Line frequency

47-63Hz

Inrush current

Vi: 115/230VAC, 10/18A

Power disipation

5V 4.0W, 12V 3.4W, 15V 3.3W, 24V 2.8W

Leakage current

Input-Output 0.25mA

Input-FG 3.5mA

OUTPUT

Voltage range

-10 to +15% of Vi nom +20% on 24V models

Hold-up time

Vi: 115/230VAC, 25/100ms

Ripple and noise

BW = 20MHz, 50 mV

Capacitor lLoad

3500µf

ENVIRONMENTAL

Storage temperature

-25 to +85°C

Relative humidity

20-95%

Isolation voltage

Input-Output at 3000VAC/VDC

Input-FG 1500VAC

Ambient temperature

-20°C to +71°C

Derating

From +61°C to +71°C, 2.5% per °C

Temperature coefficient

+0.03%°C

MODEL NUMBER

OUTPUT

POWER

PBDR10S05-A*

+ 5 V

2000 mA

10W

PBDR10S12-A*

+ 12V

840 mA

10W

PBDR10S15-A

+ 15 V

670 mA

10W

PBDR10S24-A*

+ 24 V

420 mA

10W

SELECTION TABLE

PBDR10 Series

10 WATTS - AC/DC DIN RAIL MOUNTABLE - INDUSTRIAL CONTROL

Cooling

Free air convection

Dimensions

90 x 22.5 x 115 mm

GENERAL

Efficiency

73% - 76% typical, model dependant

Switching frequency

132KHz

Weight

120g

STANDARDS

Safety standards

UL508 Listed, UL60950-1, UL1310 Class 2

Power Recognised

ISA 12.12.01 (Class 1, Division 2, Groups

A,B,C and D)

C tick

AS/NZ CISPR11 Group 1, Class A

EMI standards

EN 61000-6-3

EN 55022 Class B

EN 61000-3-2, 3-3, EN 61000-3-3

* Non indent item

SPECIFICATIONS

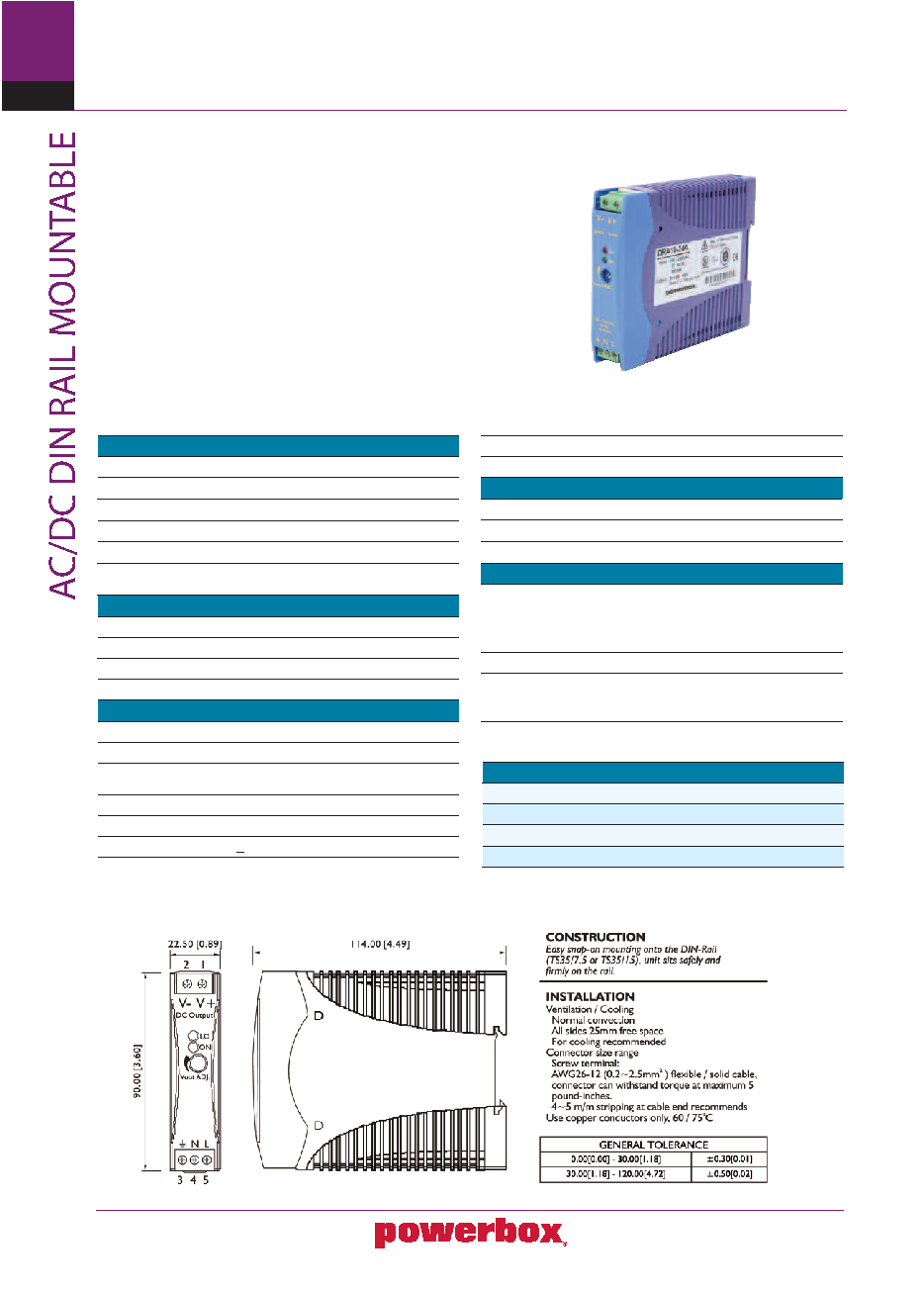

MECHANICAL & PIN CONFIGURATION
