DMHC3025LSDQ

Document number: DS37220 Rev. 1 - 2

1 of 9

www.diodes.com

May 2014

© Diodes Incorporated

DMHC3025LSDQ

30V COMPLEMENTARY ENHANCEMENT MODE MOSFET H-BRIDGE

Product Summary

Device

N-Channel

30V

6.0

4.6

P-Channel

-30V

-4.2

-3.2

Description and Applications

This new generation complementary MOSFET H-Bridge features

2 N and 2 P channel in an SOIC package. Qualified to AECQ101 the

H bridge is ideally suited to driving :

•

Solenoids

•

DC Motors

•

Audio Outputs

Features

•

2 x N + 2 x P channels in a SOIC package

•

Low On-Resistance

•

Low Input Capacitance

•

Fast Switching Speed

•

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

•

Halogen and Antimony Free. “Green” Device (Note 3)

•

Qualified to AEC-Q101 Standards for High Reliability

•

PPAP Capable (Note 4)

Mechanical Data

•

Case: SO-8

•

Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0

•

Moisture Sensitivity: Level 1 per J-STD-020

•

Terminal Connections Indicator: See diagram

•

Terminals: Finish

⎯ Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

•

Weight: 0.074 grams (approximate)

Part Number

Compliance

Case

Packaging

DMHC3025LSDQ-13

Automotive

SO-8

2,500/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

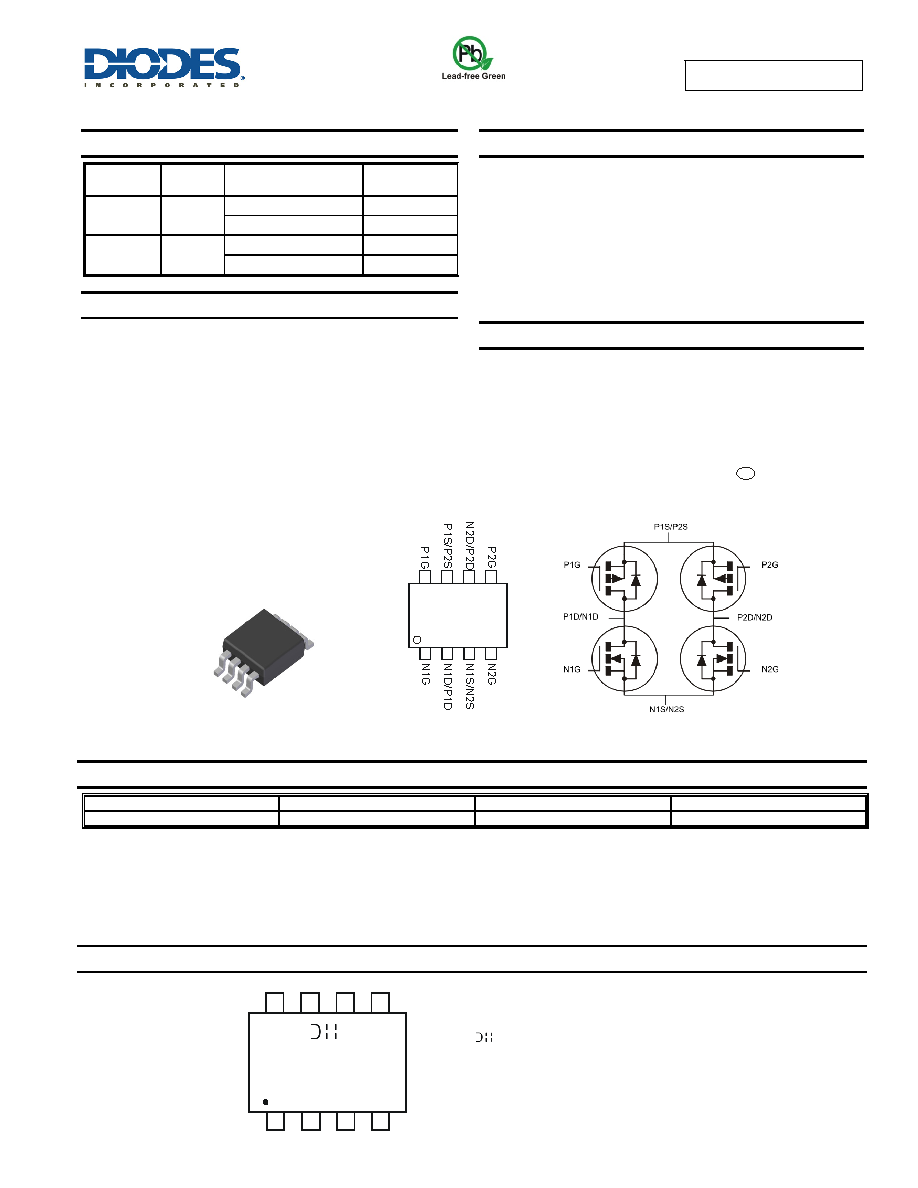

Marking Information

Top View

Internal Schematic

Top View

Pin Configuration

SO-8

H-Bridge

1

4

8

5

C3025LS

YY WW

= Manufacturer’s Marking

C3025LS = Product Type Marking Code

YYWW = Date Code Marking

YY = Year (ex: 09 = 2009)

WW = Week (01 - 53)

e3
