EMC1600 Series

www.EtherWAN.com

2

rev. A1.2

Interface

LEDIndicators

•Per Unit: Power Status (Power)

Environment

OperatingTemperature

•0°C to 45°C (32°F to 113°F)

StorageTemperature

•-10°C to 70°C (14°F to 158°F)

AmbientRelativeHumidity

•5% to 95% (non-condensing)

RegulatoryApprovals

ISO

•Manufactured in an ISO9001 facility

Safety

UL60950-1

EmissionCompliances

CEMarkClassA

FCCPart15BClassA

Hardware Specifications

Power

Input

•100 - 240VAC, 50 - 60Hz Internal Universal PSU

•± 48VDC

PowerConsumption

•System: 5.4W Max

Protection

•Over current protection

Mechanical

Casing

•Metal case

Dimensions

• 440mm (W) x 276mm (D) x 90mm (H)

(17.32" (W) x 10.87" (D) x 3.54" (H))

• Standard 19" rack-mount size, two-unit-height

Weight

•6.8Kg (14.96lbs.)

Installation

•Rack mounting

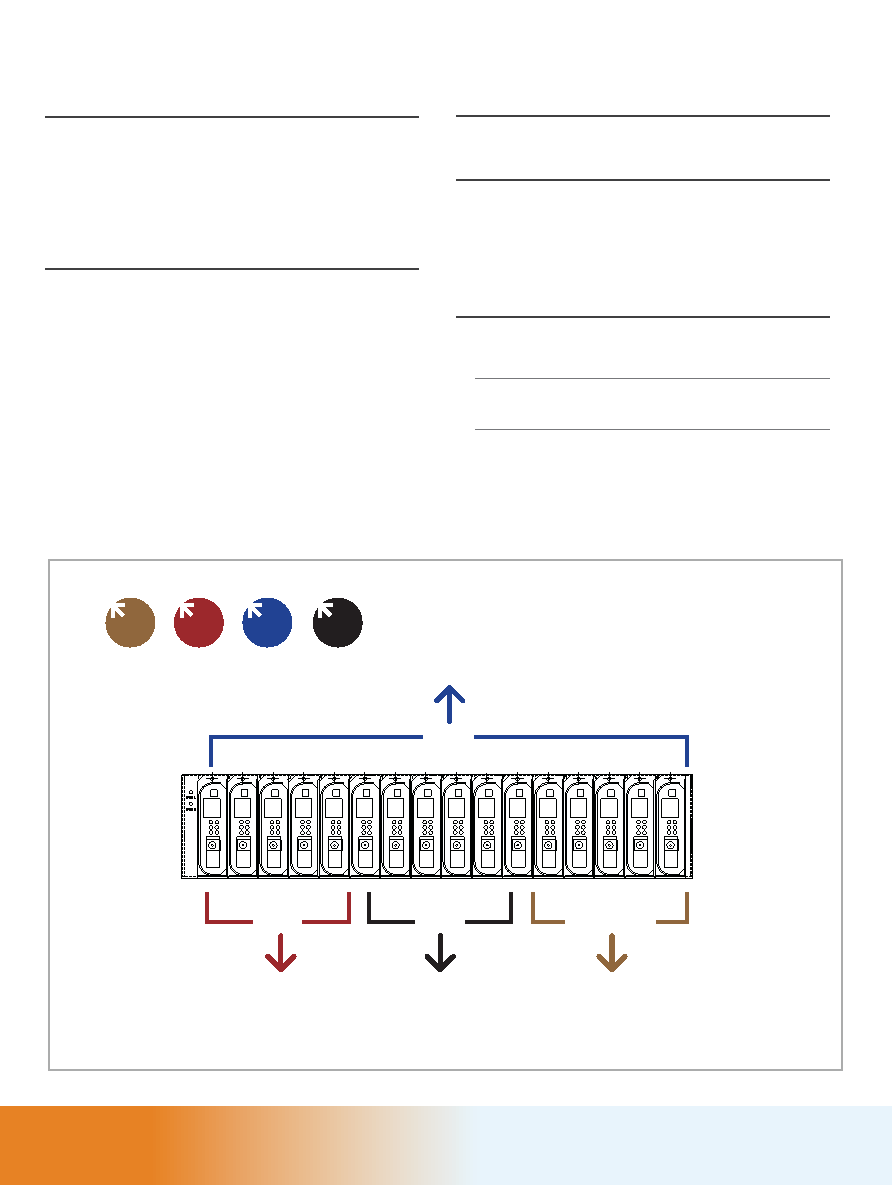

Application Diagram

Fiber-

optic

Cable

Cat.5

Ethernet

Tele

Wire

phone

RJ45

Fiber

RJ11

Coaxial Cable

The EMC1600 provides rack mount installation for large network systems
