DC/DC Converter

ECO-3

REV.: 0/2015

www.recom-international.com

R1SE/H2

Series

SAFETY AND CERTIFICATIONS

Certificate Type

Report / File Number

Standard

UL General Safety

E358085-A2

UL-60950-1, 2nd Edition

CAN/CSA C22.2 No. 60950-1-07, 2nd Edition

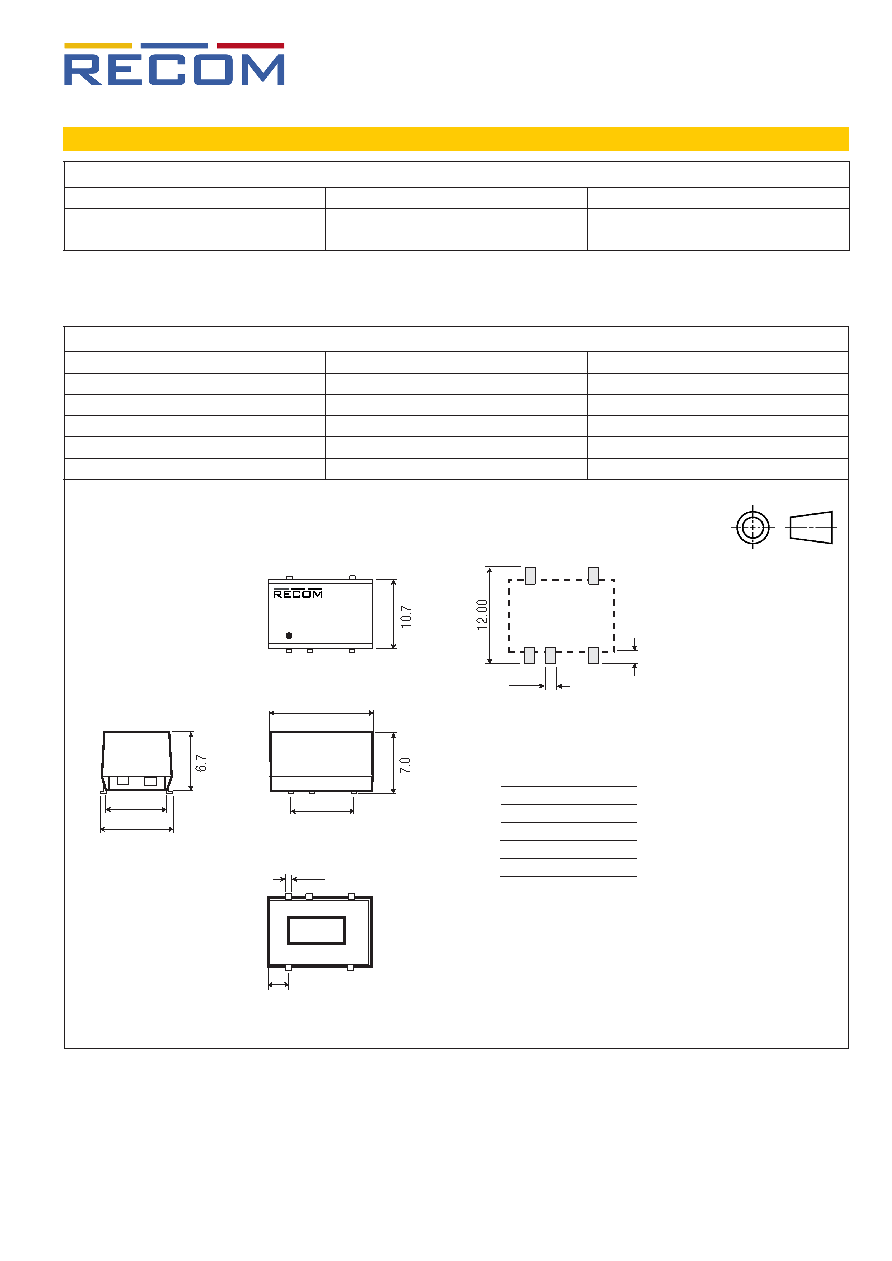

DIMENSIONS and PHYSICAL CHARACTERISTICS

Parameter

Type

Value

Material

Case

non-conductive black plastic

Package Dimensions (LxWxH)

12.75 x 10.7 x 6.7mm

Package Weight

1.0g

Packaging Quantity

Tape and Reel

500pcs

Tape and Reel Width

24mm

Bottom View

Footprint

12.75

8.50

11.10

2.54 x 3

0.50

2.54

1.20

1.80

1 2

4

8

5

R1SE

xxxx

Mechanical Dimensions (mm)

Pin Connections

Pin #

Function

1

-Vin

2

+Vin

4

-Vout

5

+Vout

8

NC

Tolerance: xx.x= ±0.50mm

xx.xx= ±0.25mm

NC:

no connection

The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.

The buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or property damage.
