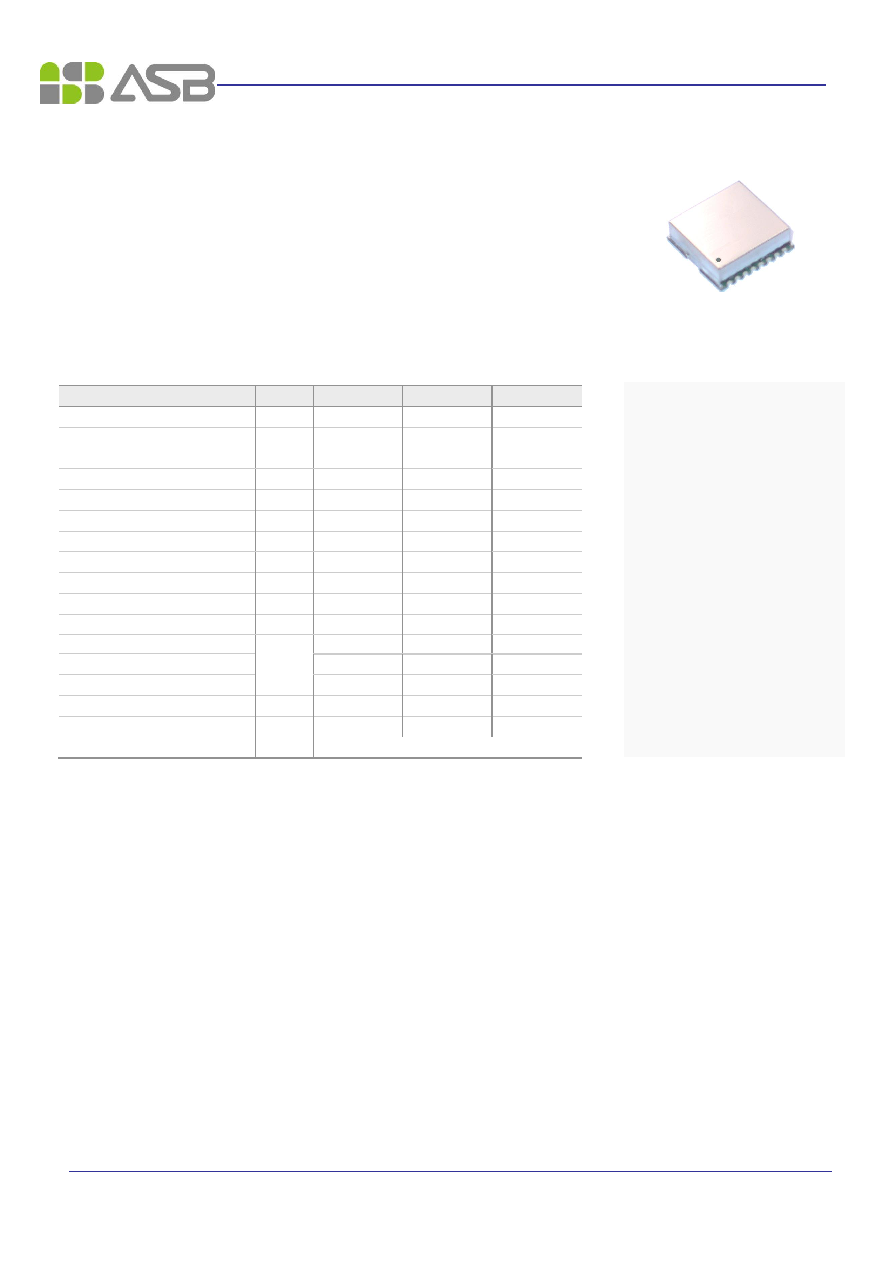

plerowTM APL0093.19-R/T

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

93.19

Output Power

dBm

5

7

Supply Voltage

V

4.75

5

5.25

Current Consumption

mA

25

35

Channel Step Size

10

2nd Harmonics

dBc

-25

-20

Spurious Level

dBc

-70

-65

Lock Time

ms

3

10

Reference Frequency

MHz

13

Reference Input Level

dBm

Phase Noise (C / N)

@ 1 kHz

dBc/Hz

-84

-78

@ 10 kHz

-108

-103

@ 100 kHz

-120

-115

Output Impedance



50

Operating Temp. Range

C

-40

25

80

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 93.19MHz, 50 ohm system.

2) Frequency stability of internal ref. TCXO is +/- 2.5 ppm (max.) over the operating temperature range.

Features

Specifications

· 7dBm Output Level at 93.19 MHz

· Channel Step Size : 10 kHz

· 2nd Harmonic: < -20dBc

· Spurious Level: < -65dBc

· Lock Time : < 10 ms

· 35mA Current Consumption

Description

The plerowTM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB

’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejeon 302-716, Ko-

rea
