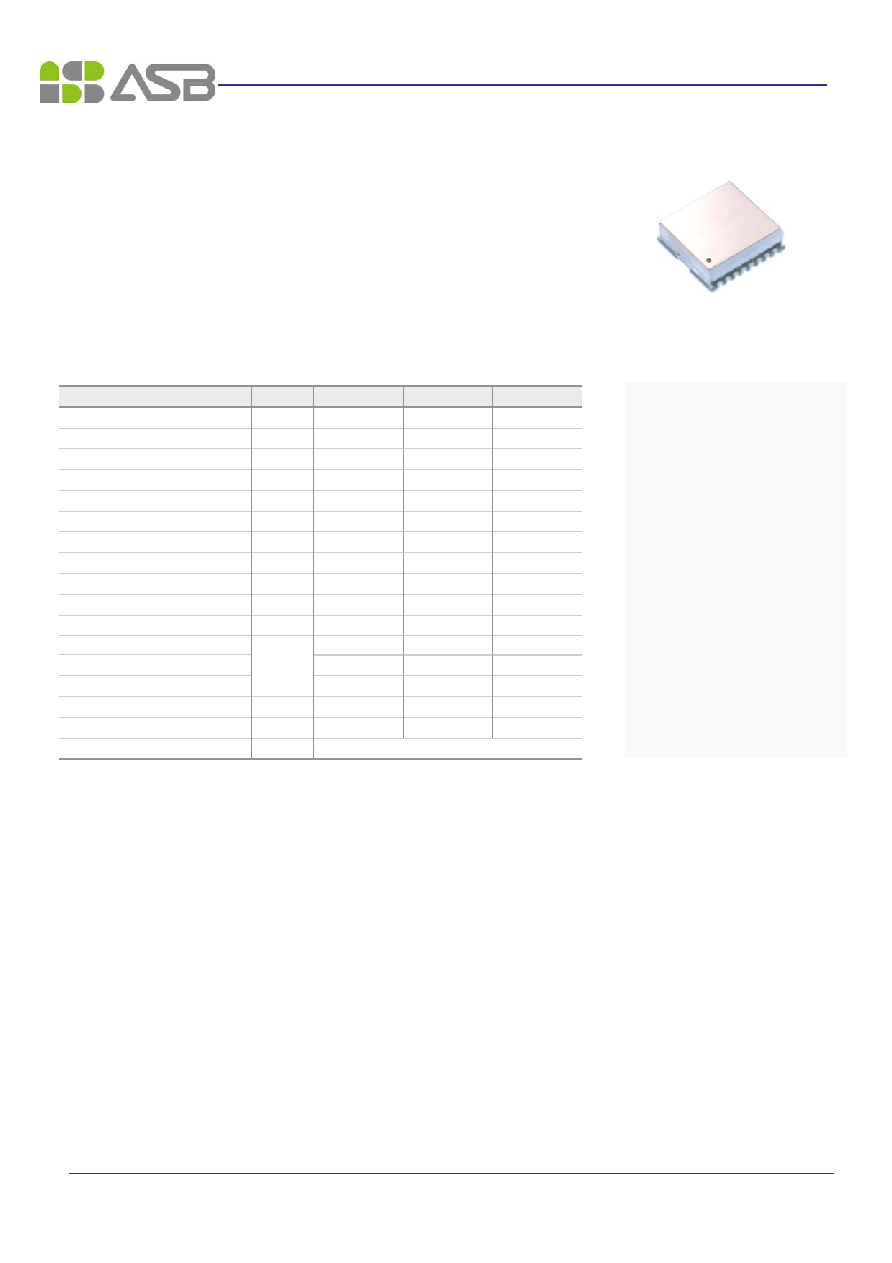

1 / 2 page

1/2

www.asb.co.kr

June 2010

plerow™ APL0800-R/T

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

800

Output Power

dBm

+6

+ 8

+10

Supply Voltage

V

4.7

5.0

5.3

Current Consumption

mA

30

40

Channel Step Size

kHz

200

2 Harmonics (Fundamental)

dBc

-25

-20

Spurious Level

dBc

-75

-70

Lock Time

ms

5

10

Reference Frequency

MHz

13

Reference Input Level

dBm

Phase Noise (C / N)

@ 1

KHz

-80

-75

@ 10

kHz

-105

-102

@ 100 kHz

dBc/Hz

-120

-115

Output Impedance



50

Operating Temp. Range

C

-40

25

85

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 800 MHz, 50 ohm system.

Features

Specifications

· +8 dBm Output Level at 800 MHz

· Channel Step Size : 200kHz

· 2

nd Harmonic: < - 20dBc

· Spurious Level : < -70 dBc

· Lock Time : <10 ms

· 40 mA Current Consumption

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
