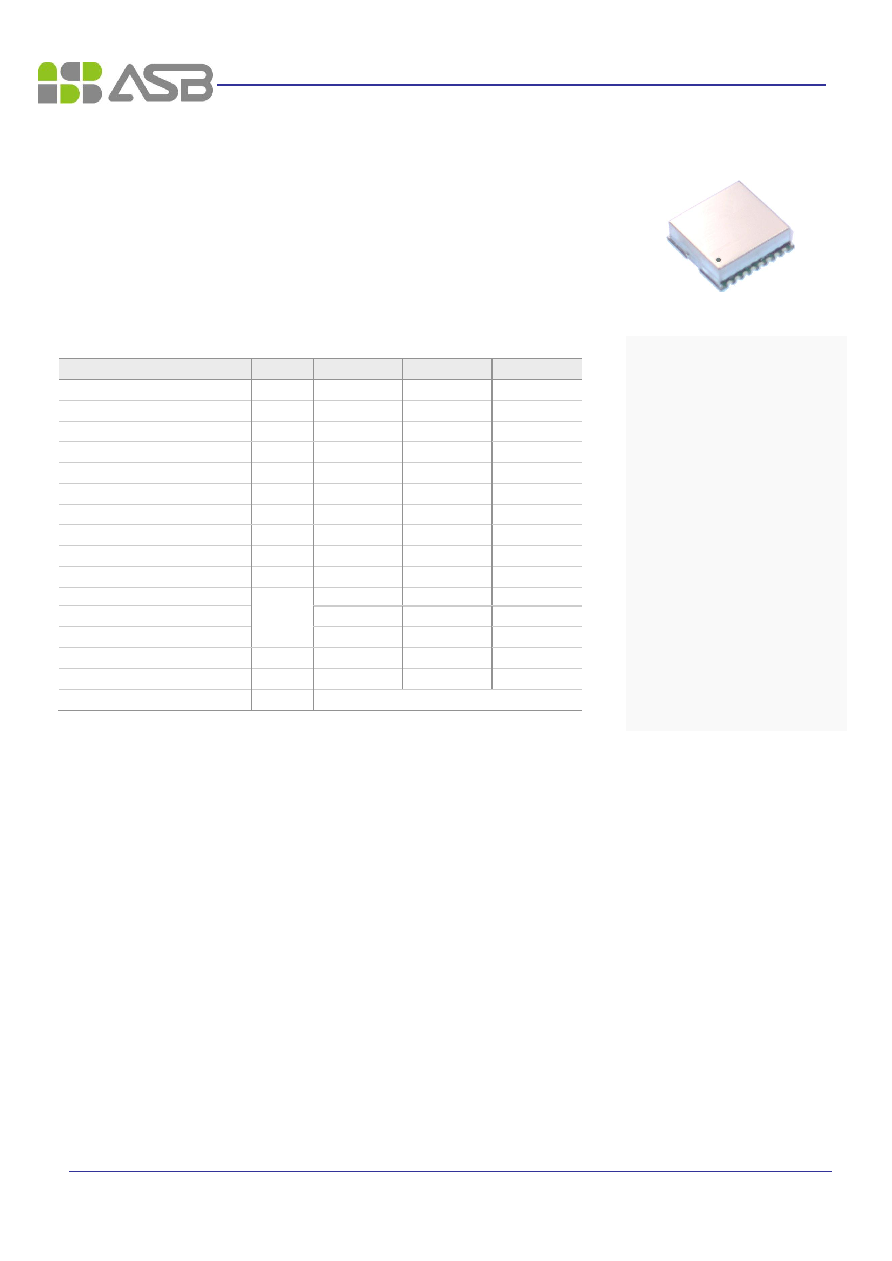

plerowTM APLT0827.5-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

827.5

Output Power

dBm

-7

-5

-3

Supply Voltage

V

4.8

5

5.2

Current Consumption

mA

25

35

Channel Step Size

kHz

250

2nd Harmonics

dBc

-25

-20

Spurious Level

dBc

-70

-65

Reference Frequency

MHz

10

Reference Input Level

dBm

0

2

5

Phase Noise (C / N)

@ 1 kHz

dBc/Hz

-75

-70

@ 10 kHz

-103

-100

@ 100 kHz

-119

-115

Output Impedance



50

Operating Temp. Range

C

-30

25

80

Package Type & Size

mm

SMT, 15.0W

15.0L3.5H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 827.5 MHz, 50 ohm system.

Features

Specifications

· -5 dBm Output Level at 827.5 MHz

· Channel Step Size: 250 kHz

· 2nd Harmonic: < -20 dBc

· Spurious Level: < -65 dBc

· Current Consumption: <35 mA

Description

The plerowTM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB

’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea

More Information
