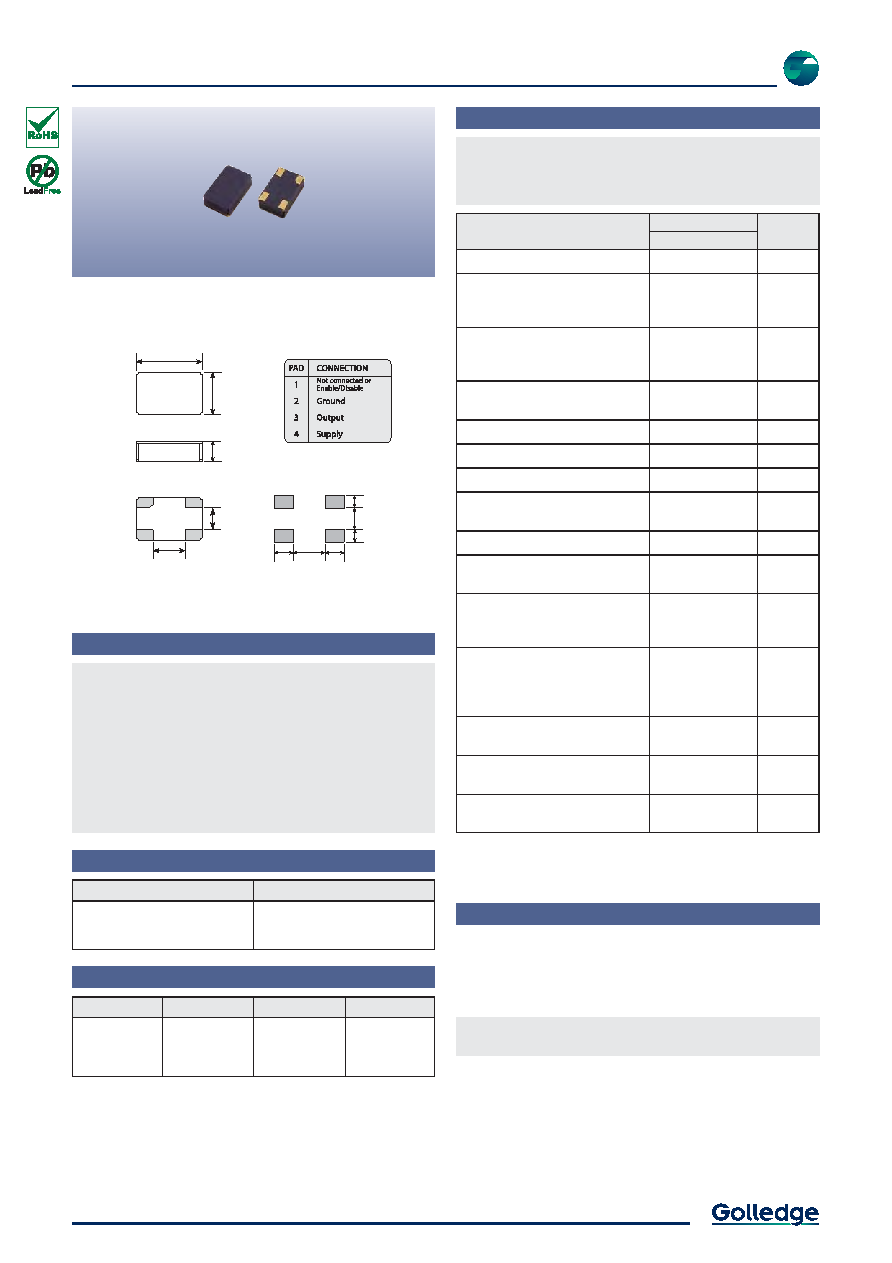

1 / 1 page

Tel: +44 1460 256 100

Fax: +44 1460 256 101

E-mail: sales@golledge.com

Web: www.golledge.com

32kHz

<10MHz

10 ~ 20MHz

>20 ~ 100MHz

300μA

2mA

3mA

15mA

1mA

4mA

5mA

20mA

2mA

6mA

7mA

30mA

17 Dec 2015

Open

‘1’ level

‘0’ level

Enabled

High Impedance

Option

Codes

MCSO2E

Product

Parameters

CMOS Oscillator -55+210°C

Product name + option codes + frequency

eg: MCSO2E/DE 10.0MHz 5V ±300ppm -55 to +175°C Enable / disable

For frequencies 20.0MHz add an 'H' to the product name

eg: MCSO2EHW/G 32.0MHz 2.5V ±400ppm -55 to +210°C no E/D

Option code X (eg MCSO2E/X) denotes a custom specification.

Ordering Information

 Standard.  Optional - Please specify required code(s) when ordering

 Packed in trays (128pcs/tray), or T&R 250 ~ 1,000pcs / reel

 A 47nF ceramic capacitor must be connected between GND and V

DD

Features

 Suitable for Avionics, Down-hole, Geothermal etc

 Extreme temperature ranges up to 210°C

 High stability & low ageing under extremes

 High shock & vibration resistance

 Low current consumption

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, sup-

ply voltage change, load change and ageing (1 year).

Enable / Disable Function

Input (pad 1)

Output (pad 3)

2011/65/EU

MCSO2E

Supply current

Freq / Supply

2.5V

3.3V

5.0V

Maximum values, no load.

Specifications

MCSO2E: 32.0kHz ~ 20.0MHz

MCSO2EH: 20.0 ~ 100MHz

Frequency range:32.0kHz ~ 100MHz



Supply voltage (V

DD):

+5.0V (±5%)



+3.3V (±5%)



V

+2.5V (±5%)



W

Frequency stability (max)*:

±300ppm over -55 to +175°C



D

±400ppm over -55 to +210°C



G

Storage temperature range:

-55 to +125°C



Supply current:

See table

Driving ability:

CMOS



Load:

3pF min, 47pF max



Logic levels:

‘0’ level = +0.4V max



‘1’ level = V

DD-0.5V min



Start up time:

5ms max



Waveform symmetry:

40:60 max @ 50%V

DD



Rise / fall times:

7ns max ≤20MHz



3ns max >20MHz





150ns max@ 32.768kHz



Enable / disable function:

None (pad 1 NC)



Tristate* (control via pad 1)



E

* not available under 500kHz

Shock resistance:

10,000G, 0.3ms, ½ sine



Vibration resistance:

40G rms 10.0 ~ 2,000Hz



Soldering condition:

260°C, 10 sec max



12

43

TOP VIEW

5.00

±0.01

3.20

±0.01

1.70

(max)

2.35

1.60

1.00

1.60

1.00

1.50

2.70

SOLDER PAD LAYOUT

12

43
