B165

[Specific No.] –* *, (* *)

Blank: 100 pcs. per pack

KApplicable Socket: DF1B-*ES-2.5RC

[Specific No.] –* *, (* *)

Blank: 100 pcs. per pack

KApplicable Socket: DF1B-*DES-2.5RC

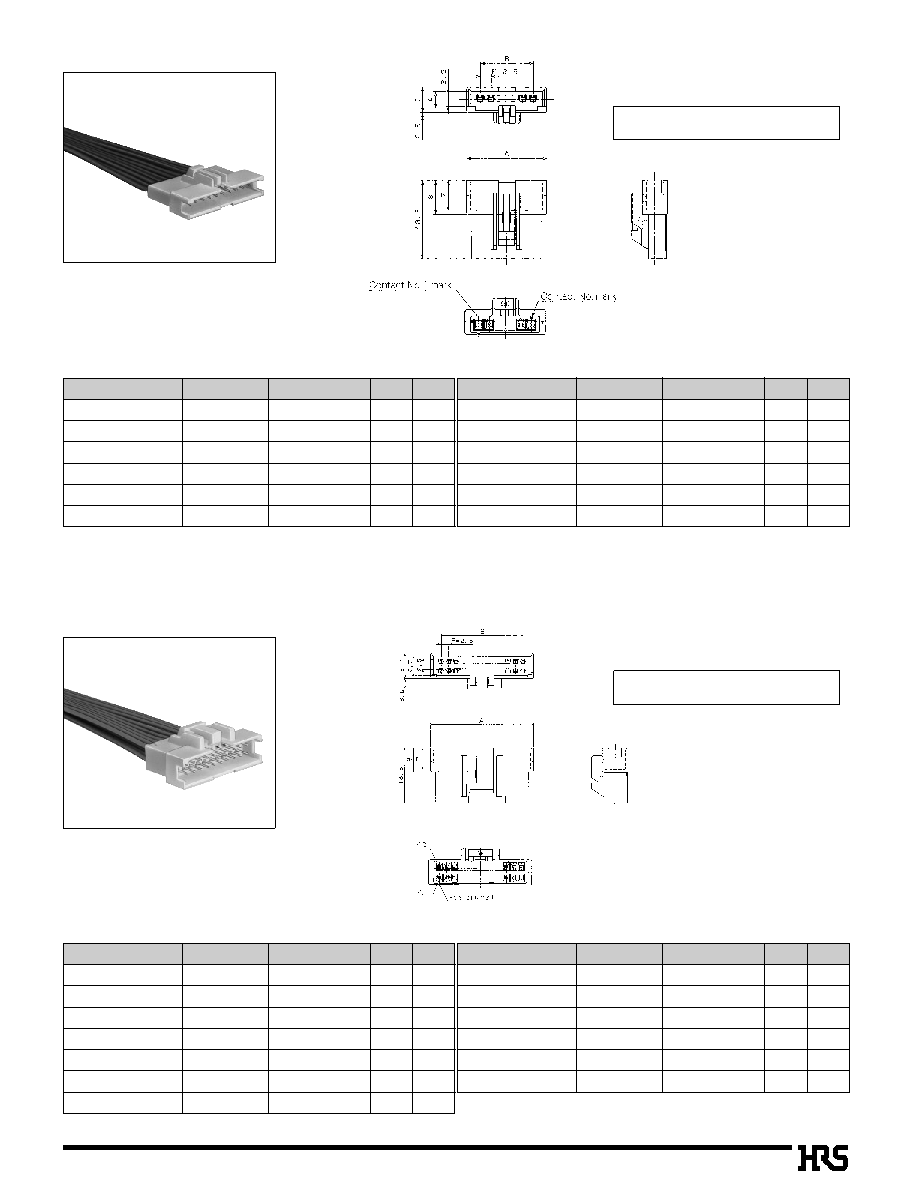

s Single Row In-line Plug (Full Lock Type)

Note 1.The quantity at the specific No. "None" is delivered by the bag unit (100 pcs.). If needed, please order the product per bag.

Note 1.The quantity at the specific No. "None" is delivered by the bag unit (100 pcs.). If needed, please order the product per bag.

Unit: mm

Part Number

CL No.

DF1B- 8EP-2.5RC(**)

DF1B- 9EP-2.5RC(**)

DF1B-10EP-2.5RC(**)

DF1B-11EP-2.5RC(**)

DF1B-12EP-2.5RC(**)

DF1B-13EP-2.5RC(**)

541-0338-3-**

541-0339-6-**

541-0340-5-**

541-0341-8-**

541-0342-0-**

541-0343-3-**

8

9

10

11

12

13

23.9

26.4

28.9

31.4

33.9

36.4

17.5

20

22.5

25

27.5

30

Number of Contacts

A

B

Part Number

CL No.

DF1B- 2EP-2.5RC(**)

DF1B- 3EP-2.5RC(**)

DF1B- 4EP-2.5RC(**)

DF1B- 5EP-2.5RC(**)

DF1B- 6EP-2.5RC(**)

DF1B- 7EP-2.5RC(**)

541-0332-7-**

541-0333-0-**

541-0334-2-**

541-0335-5-**

541-0336-8-**

541-0337-0-**

2

3

4

5

6

7

8.9

11.4

13.9

16.4

18.9

21.4

2.5

5

7.5

10

12.5

15

Number of Contacts

A

B

Contact Inserted.

s Double Row In-line Plug (Full Lock Type)

Unit: mm

Part Number

CL No.

DF1B-24DEP-2.5RC(**)

DF1B-26DEP-2.5RC(**)

DF1B-28DEP-2.5RC(**)

DF1B-30DEP-2.5RC(**)

DF1B-32DEP-2.5RC(**)

DF1B-34DEP-2.5RC(**)

541-0372-1-**

541-0373-4-**

541-0374-7-**

541-0375-0-**

541-0376-2-**

541-0377-5-**

24

26

28

30

32

34

34.7

37.2

39.7

42.2

44.7

47.2

27.5

30

32.5

35

37.5

40

Number of Contacts

A

B

Part Number

CL No.

DF1B-10DEP-2.5RC(**)

DF1B-12DEP-2.5RC(**)

DF1B-14DEP-2.5RC(**)

DF1B-16DEP-2.5RC(**)

DF1B-18DEP-2.5RC(**)

DF1B-20DEP-2.5RC(**)

DF1B-22DEP-2.5RC(**)

541-0366-9-**

541-0367-1-**

541-0368-4-**

541-0369-7-**

541-0350-9-**

541-0370-6-**

541-0371-9-**

10

12

14

16

18

20

22

17.2

19.7

22.2

24.7

27.2

29.7

32.2

10

12.5

15

17.5

20

22.5

25

Number of Contacts

A

B

Contact Inserted.
