TS431ACX-RFG 数据表(PDF) 8 Page - Taiwan Semiconductor Company, Ltd

部件名	TS431ACX-RFG

功能描述	2.495V Programmable Shunt Voltage Reference

PDF	13 Pages

Scroll/Zoom	100%

制造商	TSC [Taiwan Semiconductor Company, Ltd]

网页	http://www.taiwansemi.com

标志

8 / 13 page

TS431

Taiwan Semiconductor

Document Number: DS_P0000235

Version: H15

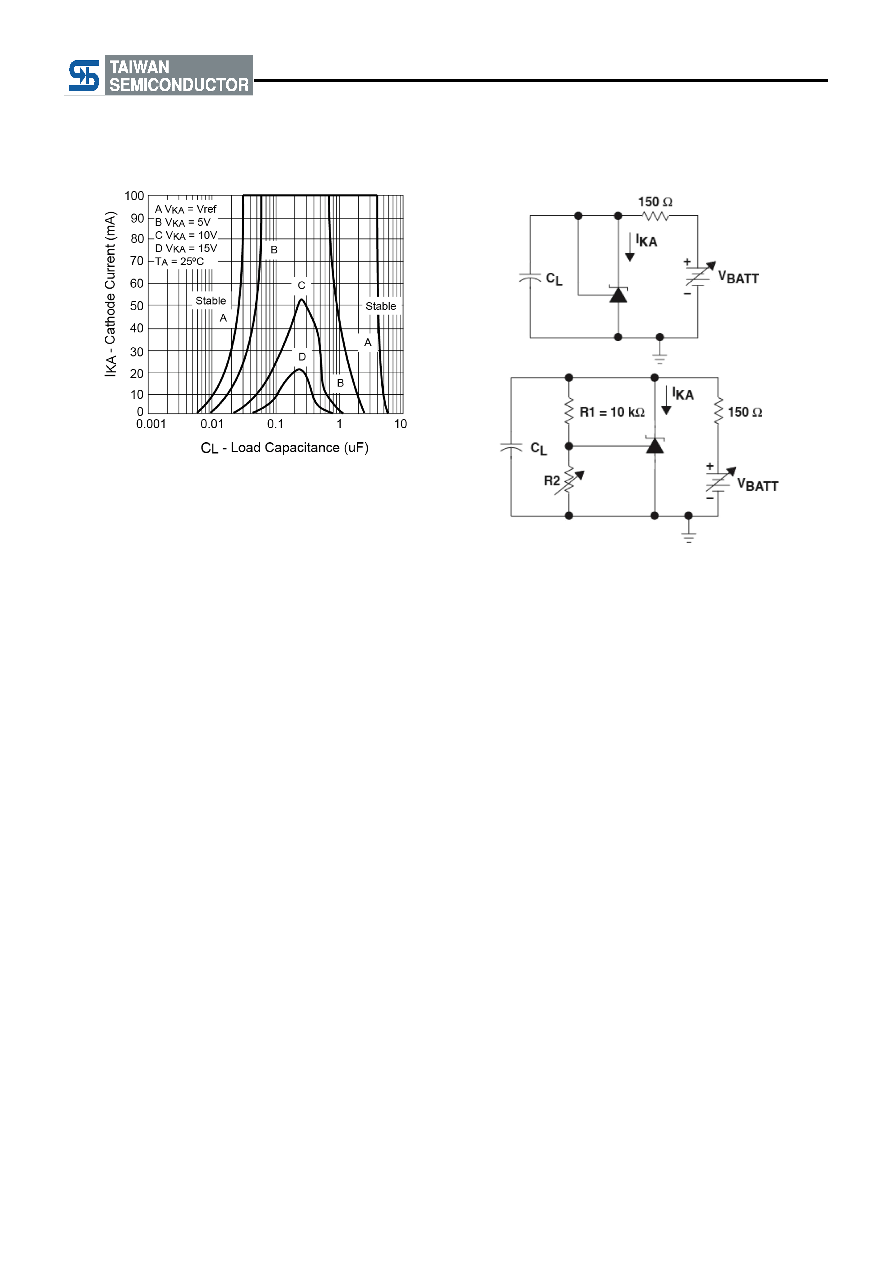

TYPICAL PERFORMANCE CHARACTERISTICS (CONTINUE)

The areas under the curves represent conditions that

may cause the device to oscillate. For curves B, C, and

D, R2 and V+ were adjusted to establish the initial VKA

and IKA conditions with CL=0. VBATT and CL then were

adjusted to determine the ranges of stability.

Test Circuit for Curve B, C and D

Figure 15. Reference Impedance vs. Frequency
