LA55-TP datasheet(2/2 Pages) LEM

2 / 2 page

Secondary terminals

Terminal + : supply voltage + 12 .. 15 V

Terminal

: supply voltage - 12 .. 15 V

Terminal M : measure

Connection

Remarks

•I

S is positive when IP flows in the direction of the arrow.

•Temperature of the primary conductor should not exceed

90°C.

•This is a standard model. For different versions (supply

voltages, turns ratios, unidirectional measurements...),

please contact us.

Mechanical characteristics

•General tolerance

± 0.2 mm

•Fastening & connection of primary

bus bar

6.4 x 1.6 mm

Recommended PCB hole

3.8 mm

•Fastening & connection of secondary

3 pins

0.63 x 0.56 mm

Recommended PCB hole

0.9 mm

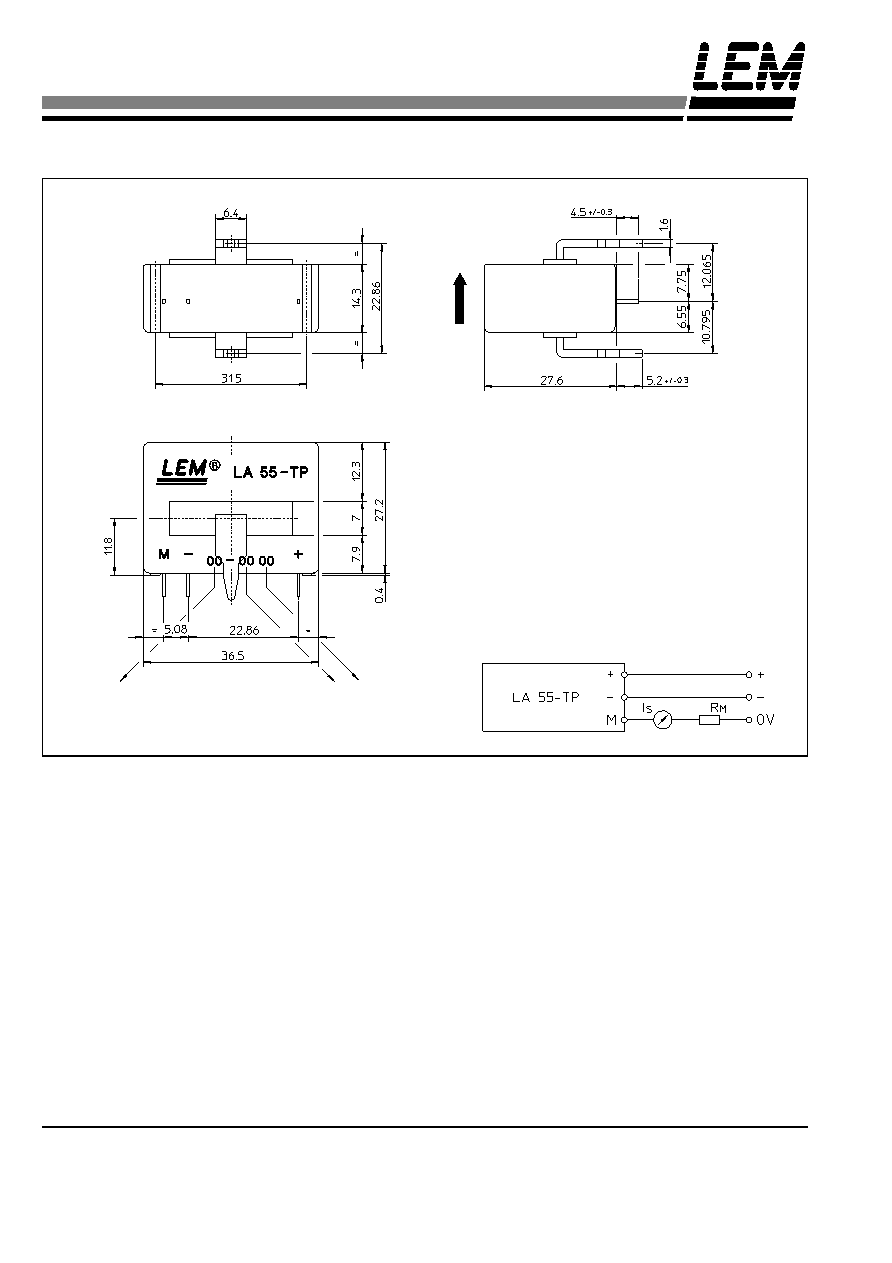

Dimensions LA 55-TP (in mm. 1 mm = 0.0394 inch)

Bottom view

Front view

Left view

LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice.

Standard 00

Year Week

or N° SP..
