MLF2012 Type

ELECTRICAL CHARACTERISTICS

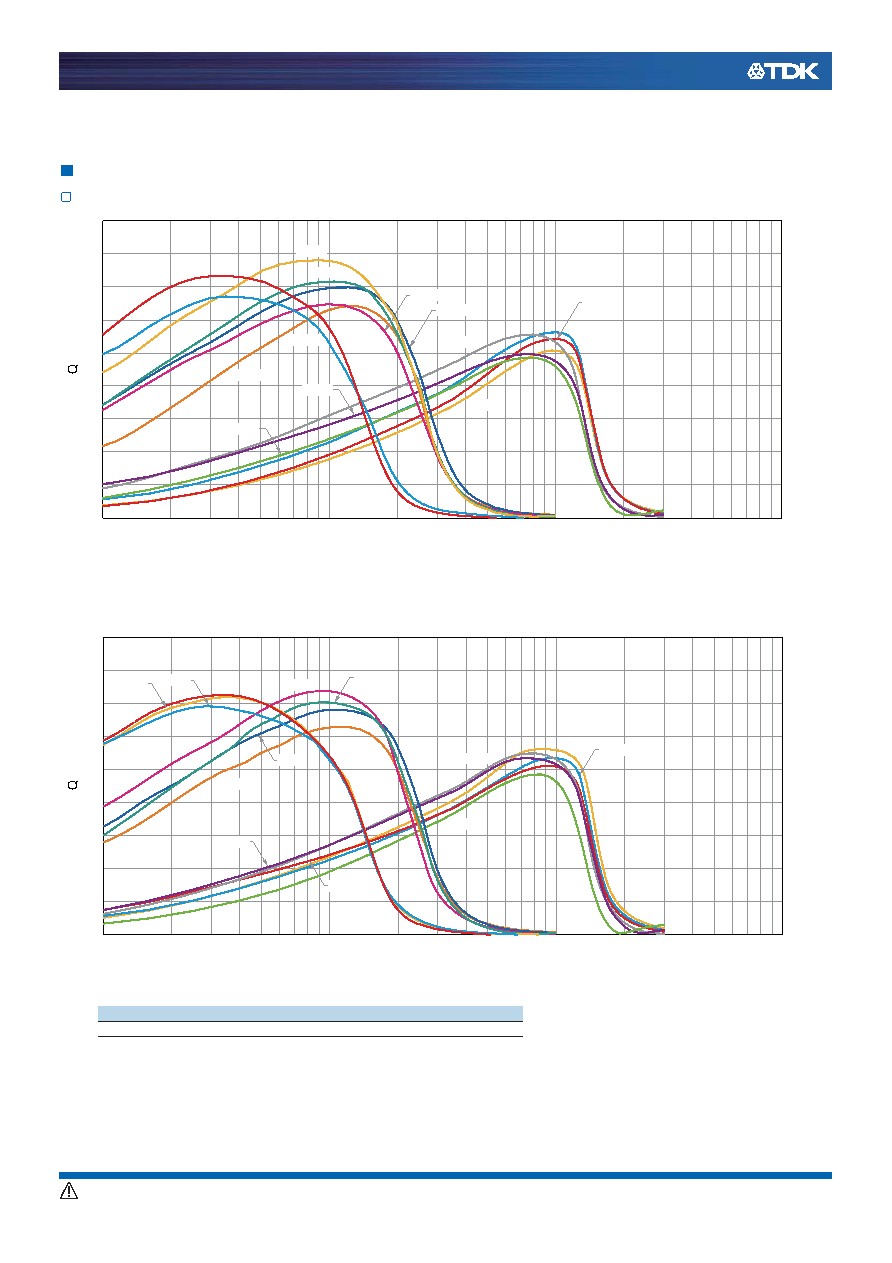

Q FREQUENCY CHARACTERISTICS GRAPH

○ Measurement equipment

＊ Equivalent measurement equipment may be used.

0

10

20

30

40

50

90

70

80

60

110

1000

100

Frequency(MHz)

E100

E6R8

A1R0

DR33

DR15

DR10

A3R3

A2R2

A1R5

DR47

DR22

DR68

A4R7

0

10

20

30

40

50

90

80

70

60

110

1000

100

Frequency(MHz)

E120

E8R2

E5R6

A3R9

A2R7

A1R8

DR82

DR56

DR39

DR27

DR18

DR12

A1R2

Product No.

Manufacturer

E4991A+16192A

Agilent Technologies
