BAS20WS datasheet(1/1 Pages) DGNJDZ

部件名	BAS20WS

功能描述	Fast Switching Speed

PDF	1 Pages

Scroll/Zoom	100%

制造商	DGNJDZ [Nanjing International Group Co]

网页	http://www.dgnjdz.com/

标志

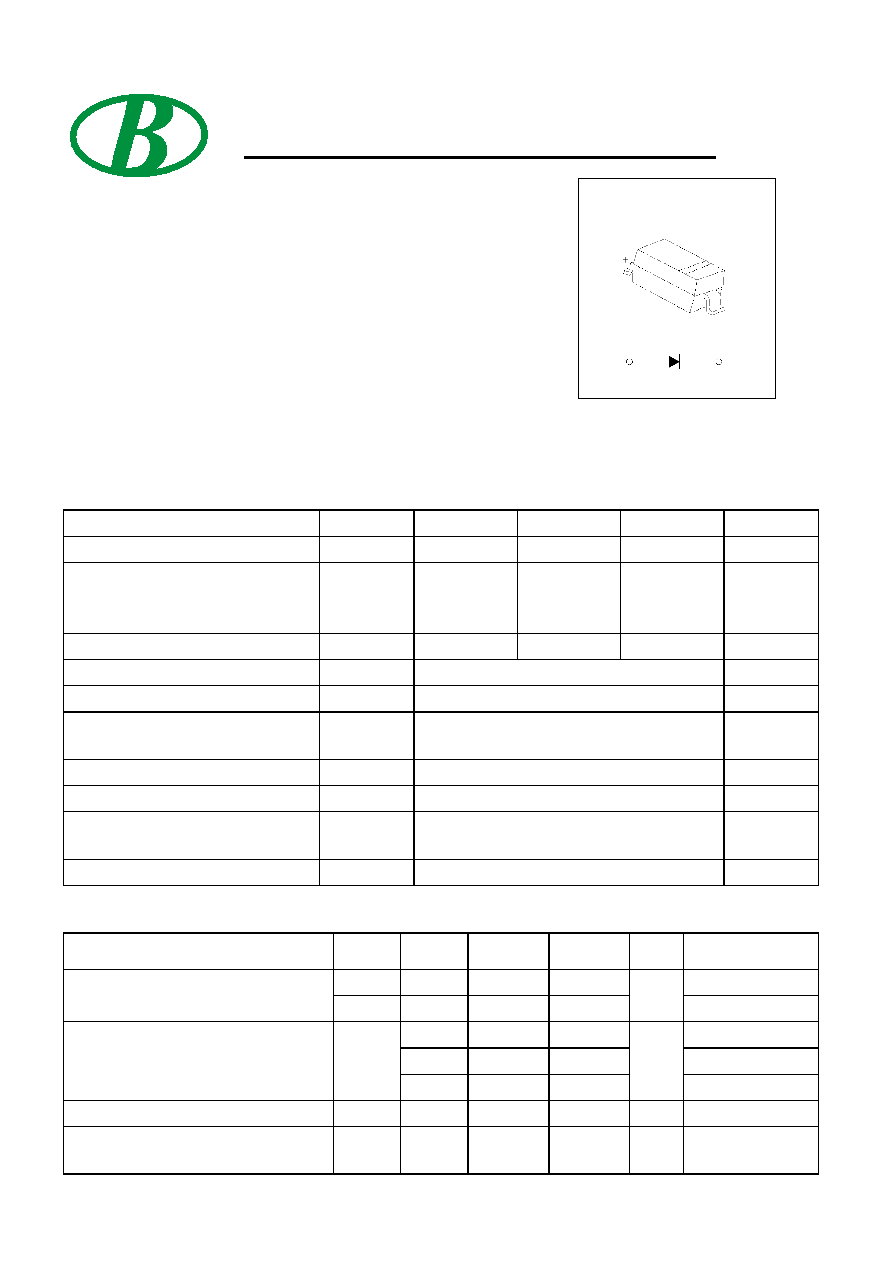

1 / 1 page

SOD-323 Plastic-Encapsulate Diodes

BAS19WS/BAS20WS/BAS21WS

FAST SWITCHING DIODE

FEATURES

Fast Switching Speed

Surface Mount Package Ideally Suited for Automatic Insertion

For General Purpose Switching Applications

MARKING: BAS19WS: A8

BAS20WS: T2

BAS21WS: T3

Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25

℃

Parameter

Symbol

BAV19WS

BAV20WS

BAV21WS

Unit

Non-Repetitive Peak Reverse Voltage

VRM

120

200

250

V

Peak Repetitive Peak Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

VRRM

VRWM

VR

100

150

2

50

V

RMS Reverse Voltage

VR(RMS)

71

106

141

V

Forward Continuous Current

IFM

400

mA

Average Rectified Output Current

IO

200

mA

Peak Forward Surge Current @t=1.0ms

@ t=1.0s

IFSM

2.5

0.5

A

Repetitive Peak Forward Current

IFRM

625

mA

Power Dissipation

Pd

250

mW

Thermal Resistance Junction to

Ambient

RθJA

500

℃

/W

Storage Temperature

TSTG

-

55~+150

℃

Electrical Ratings @Ta=25

℃

Parameter

Symbol

Min

Typ

Max

Unit

Conditions

VF1

1.0

IF=0.1A

Forward voltage

VF2

1.25

V

IF=0.2A

0.1

VR=100V

0.1

VR=150V

Reverse current

BAS19WS

BAS20WS

BAS21WS

IR

0.1

μA

VR=200V

Capacitance between terminals

CT

5

pF

VR=0V,f=1MHz

Reverse recovery time

trr

50

ns

IF=IR=30mA

Irr=0.1XIR,RL=100Ω

A,May,2011

SOD-323

DONGGUAN NANJING ELECTRONICS LTD.,
