CT3A01-R3

N-Channel Enhancement MOSFET

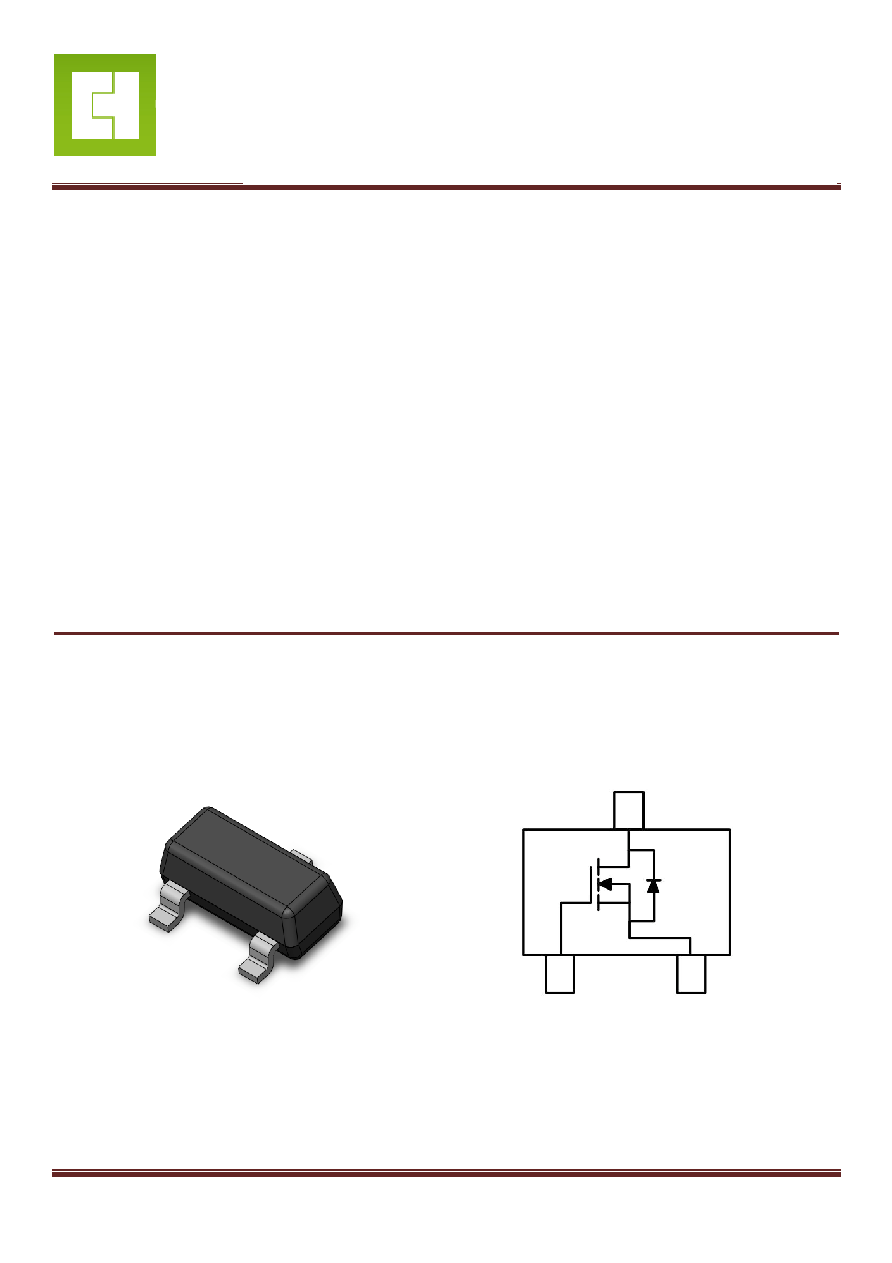

Package Outline

Schematic

Features

••••

Drain-Source Breakdown Voltage VDSS 20 V

••••

Drain-Source On-Resistance

••••

RDS(ON) 55m

Ω, at VGS= 4.5V, ID=3.2A

RDS(ON) 65m

Ω, at VGS= 2.5V, ID= 2.5A

RDS(ON) 80m

Ω, at VGS= 1.8V, ID= 2.0A

••••

Continuous Drain Current at TA=25

℃ID = 3.2A

••••

Advanced high cell density Trench Technology

••••

RoHS Compliance & Halogen Free

Applications

••••

Power Management

••••

Portable Equipment

••••

Load switch

Description

The CT3A01-R3 uses high performance Trench

Technology to provide excellent RDS(ON) and low gate

charge which is suitable for most of the synchronous

buck converter applications.

Gate

Source

Drain

Gate

Drain

Source
