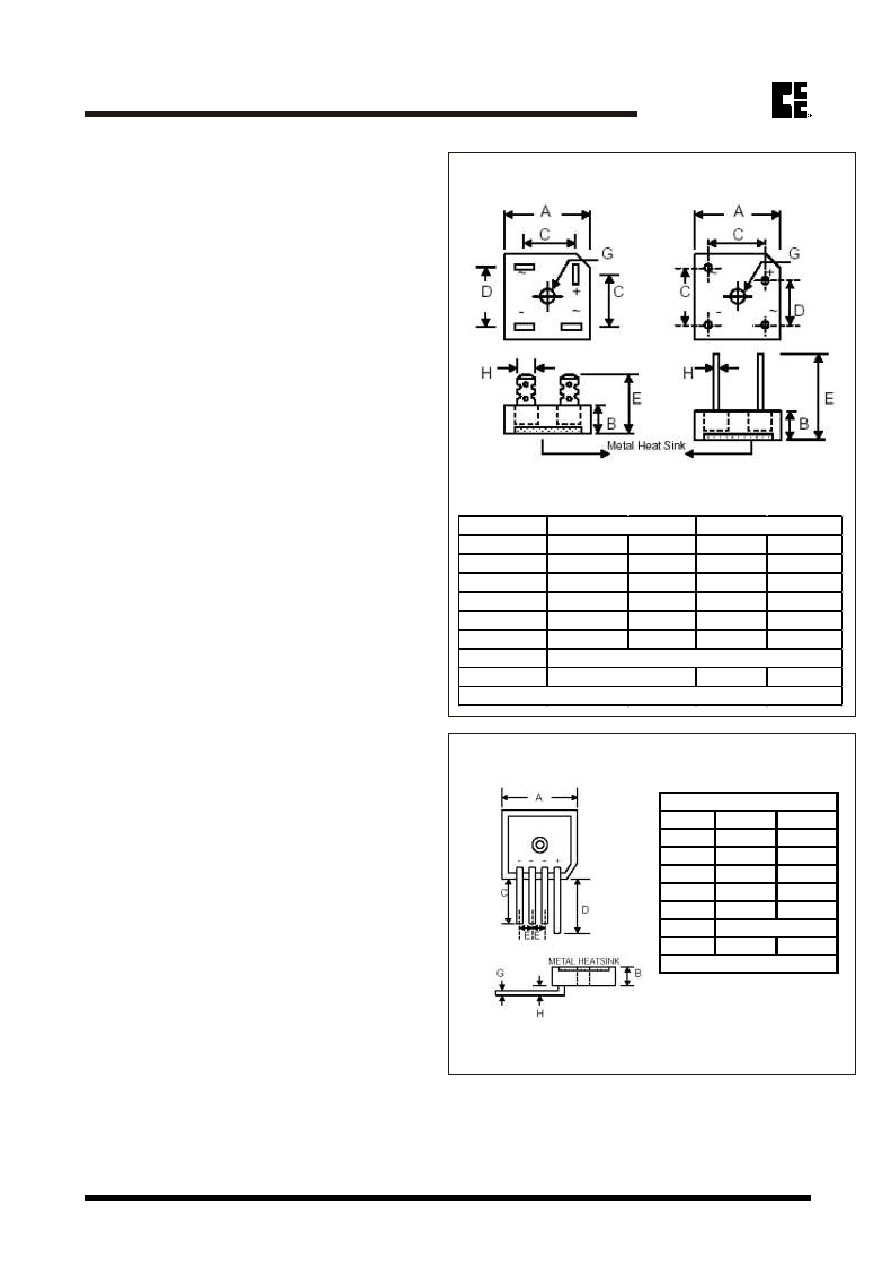

1 / 3 page

Reverse Voltage: 50 - 1000 Volts

Forward Current: 10/15/25/35/50 Amp

KBPC Series

Features

Surge overload 200 - 400 Amp peak

Low forward voltage dro

Mounting position: Any

Electrically isolated base - 1800 Volts

Solderable 0.25” FASTON terminals

Materials used carries U/L recognition

Mechanical Data

Case:Epoxy Case with Heat Sink Internally

Mounted in the Bridge Encapsulation

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

Mounting: Through Hole for #10 Screw

High Current Bridge Rectifier

www.comchiptech.com

COMCHIP

MDS0304007A

Page 1

Dim

Min

Max

Min

Max

A

28.40

28.70

28.40

28.70

B

10.97

11.23

10.97

11.23

C

15.70

16.70

17.10

19.10

D

17.50

18.50

10.90

11.90

E

22.86

25.40

30.50

-

G

H

0.97Ø

1.07Ø

All Dimension in mm

TERMINALS

LEAD

Hole for #10 screw, 5.08Ø Nominal

6.35 Typic al

KBPC

Terminals/Plastic

Lead/Plastic

KBPC-W

KBPC-S

- “S” Suffix Designates Single In-Line

- “W” Suffix Designates Wire Leads

- No Suffix Designates Faston Terminals

Single In-Line/Plastic

Dim

Min

Max

A

28.40

28.70

B

10.97

11.23

C

13.90

-

D

19.10

-

E

5.10

-

G

H

3.05

3.60

KBPC-S

All Dimensions in mm

1.20 Ø Typical

Weight: 30 grams (approx.)
