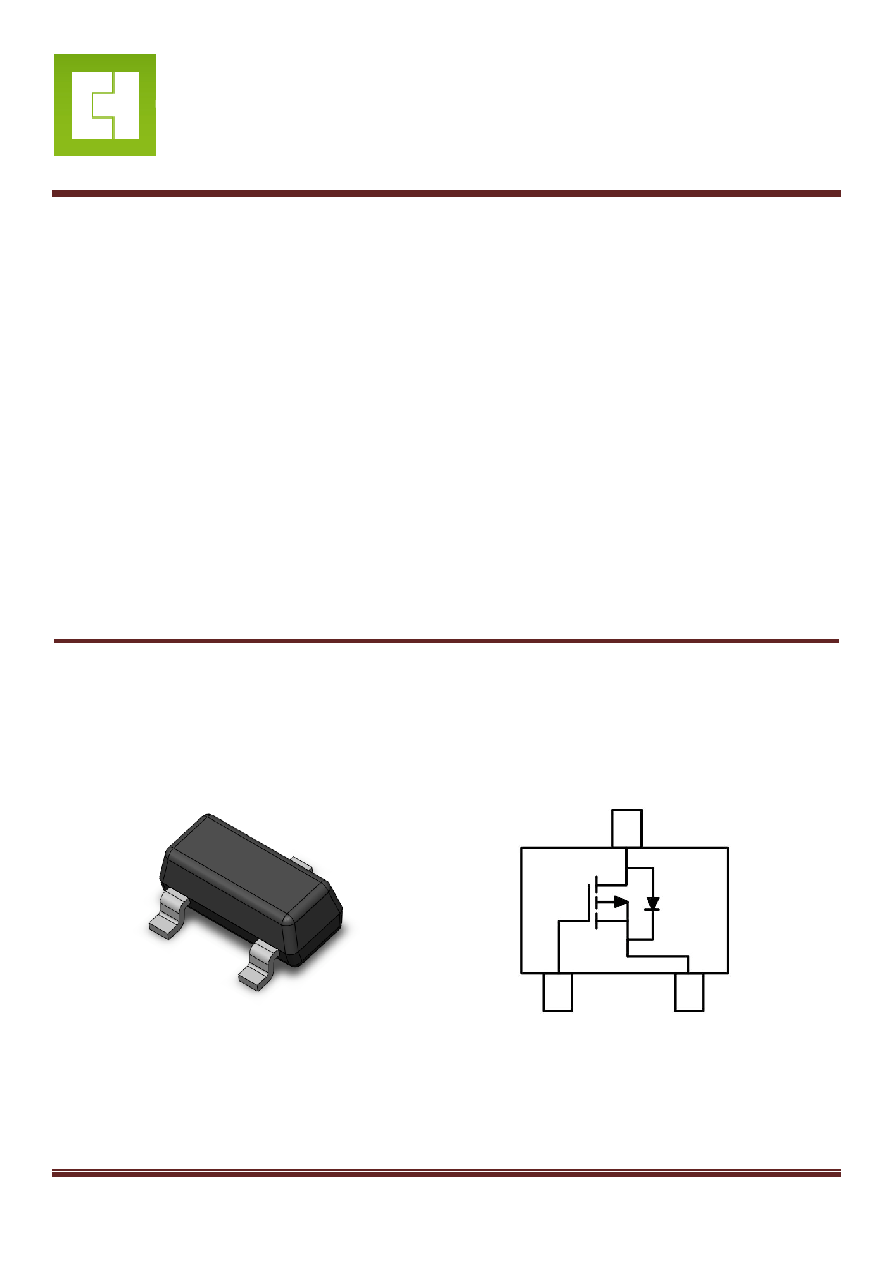

CTL0472PS-R3

P-Channel Enhancement MOSFET

Package Outline

Schematic

Features

••••

Drain-Source Breakdown Voltage VDSS -20 V

••••

Drain-Source On-Resistance

RDS(ON) 58m

Ω, at VGS= -4.5V, ID= -4.7A

RDS(ON) 73m

Ω, at VGS= -2.5V, ID= -1.0A

••••

Continuous Drain Current at TA=25

℃ID = -4.7A

••••

Advanced high cell density Trench Technology

••••

RoHS Compliance & Halogen Free

Applications

••••

Power Management

••••

Portable Equipment

••••

Battery Powered System

••••

Load Switch

Description

The CTL0472PS-R3 uses high performance Trench

Technology to provide excellent RDS(ON) and low gate

charge which is suitable for most of the synchronous

buck converter applications

Gate

Source

Drain

Gate

Drain

Source
