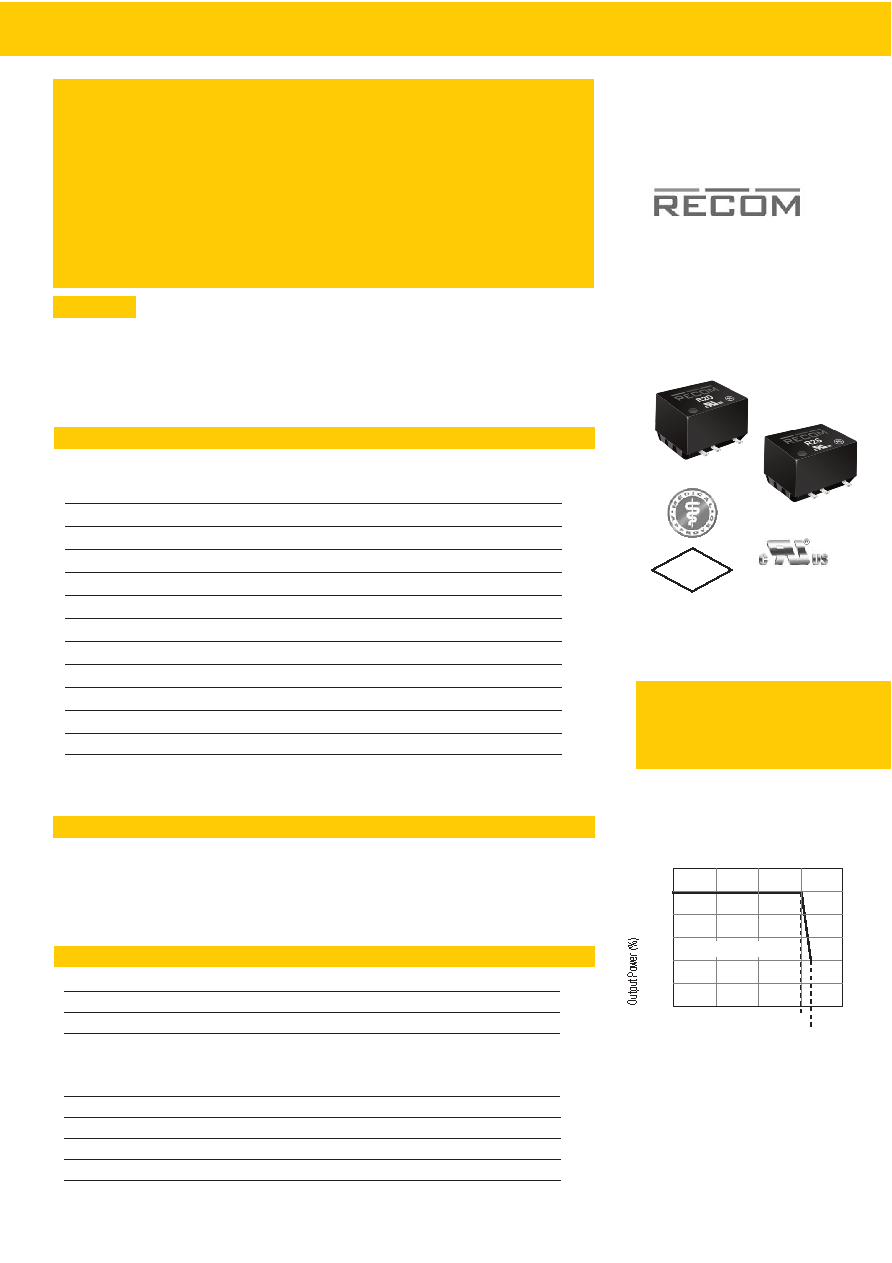

R2S-R2D

Refer to Application Notes

ECONOLINE

DC/DC-Converter

with 3 year Warranty

Selection Guide

Part

Input

Output

Output

Efficiency

Max

Number

Voltage

Voltage

Current

Capacitive

SMD

(3kV)

(VDC)

(VDC)

(mA)

(%)

R2S**-xx3.3

(H)

5, 12, 15, 24

3.3

606

70-75

3300µF

R2S**-xx05

(H)

5, 12, 15, 24

5

400

76-84

1200µF

R2S**-xx09

(H)

5, 12, 15, 24

9

222

76-84

1200µF

R2S**-xx12

(H)

5, 12, 15, 24

12

167

76-85

680µF

R2S**-xx15

(H)

5, 12, 15, 24

15

133

76-85

680µF

R2S**-xx24

(H)

5, 12, 15, 24

24

83

76-85

220µF

R2D**-xx05

(H)

5, 12, 15, 24

±5

±200

75-80

±470µF

R2D**-xx09

(H)

5, 12, 15, 24

±9

±111

75-80

±470µF

R2D**-xx12

(H)

5, 12, 15, 24

±12

±83

75-83

±330µF

R2D**-xx15

(H)

5, 12, 15, 24

±15

±66

75-85

±330µF

R2D**-xx24

(H)

5, 12, 15, 24

±24

±42

75-85

±330µF

xx = Input Voltage. Other input and output voltage combinations available on request.

* add Suffix “P” for Continuous Short Circuit Protection, e.g. R2S-0505/P, R2D-0505/HP

* add suffix -R for tape&reel packing e.g. R2S-0505-R. For more details see Tapes Section.

Input Voltage Range

±10%

Output Voltage Accuracy

±5%

Line Voltage Regulation

1.2%/1% of Vin max.

Load Voltage Regulation

3.3V output types

20% max.

(10% to 100% full load)

5V output type

15% max.

9V, 12V, 15V, 24V output types

10% max.

Output Ripple and Noise (20MHz limited)

150mVp-p max.

Operating Frequency

20kHz min. / 40kHz typ. / 85kHz max.

Efficiency at Full Load

70% min. / 80% typ.

Minimum Load = 0%

Specifications valid for 10% minimum load only.

continued on next page

2 Watt

Dual Output

Features

Unregulated

Converters

Description

The R2S and R2D converters are of the enclosed open frame type, meaning that they are

un-potted. The converters are typically used in general purpose and industrial low power

isolation and voltage matching applications where an SMD converter is required.

The converter series feature an extended ambient temperature operating range of

-40°C to +100°C without derating and optional continuous short circuit protection.

In addition to two isolation options and three different case formats, the converters are also

available prepacked as tape and reel for use with automatic insertion machines.

R2S** : ** without marking denotes 5 pins out of 8 fitted (/H option available)

** with marking 8 denotes 8 pins out of 8 fitted (/H option not available)

** with marking 12 denotes 10 pins out of 12 fitted (/H option available)

R2D** : ** without marking denotes 6 pins out of 10 fitted (/H option available)

** with marking 10 denotes with 10 pins out of 10 fitted (/H option not available)

** with marking 12 denotes with 10 pins out of 12 fitted (/H option available)

Case and Pinning Options (note restrictions on /H option)

E358085

UL-60950-1 Certified

EN-60950-1 Certified

EN-60601-1 Certified*

(*/H suffix)

(including Vapor Phase Soldering)

RoHS

2011/65/EU

6/6

100

60

20

40

105

50

0

-40

150

Operating Temperature °C

0

80

Safe Operating Area

100

Derating-Graph

(Ambient Temperature)

***Any data referred to in this datasheet are of indicative nature

and based on our practical experience only. For further details,

please refer to our Application Notes.

REV: 0/2015

E-85

www.recom-power.com
