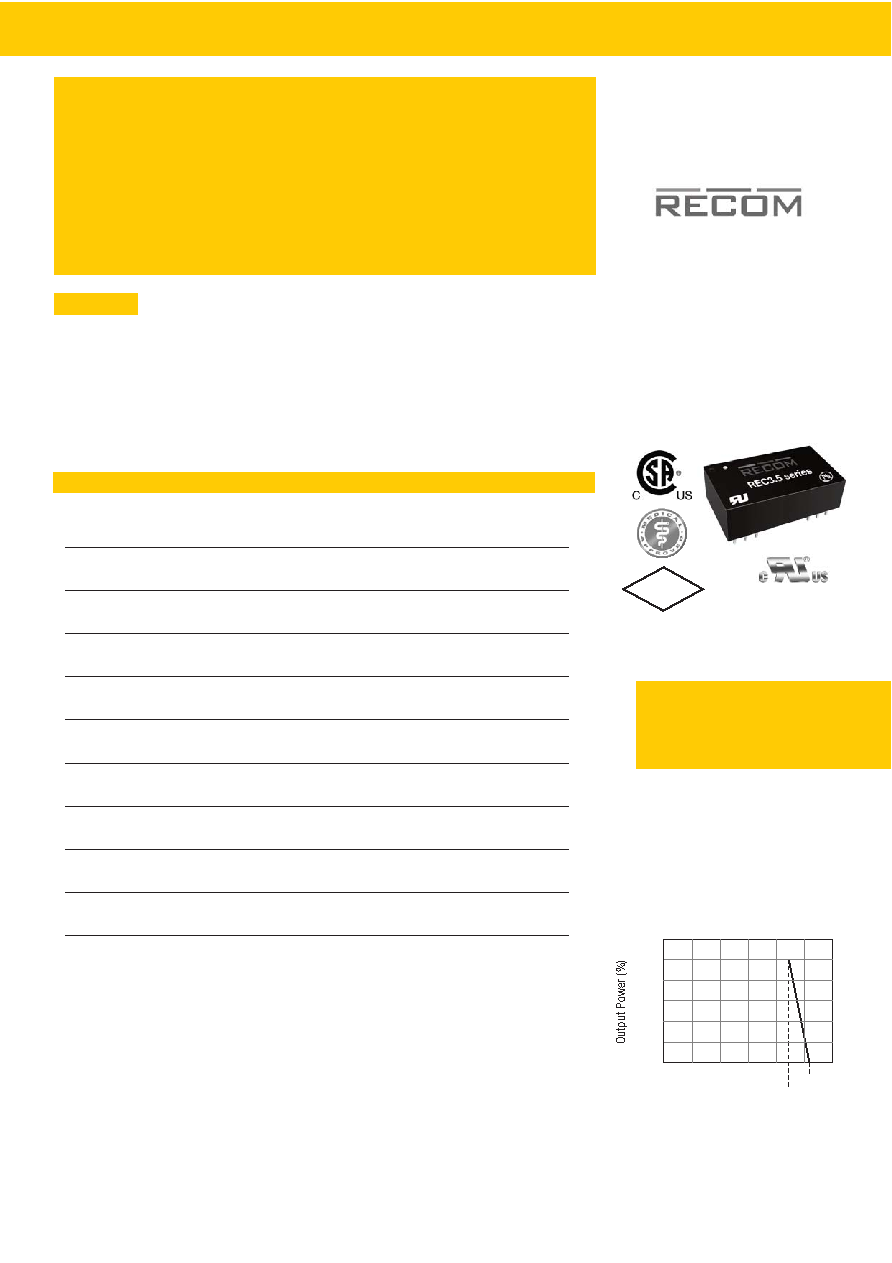

ECONOLINE

DC/DC-Converter

with 3 year Warranty

Refer to Application Notes

REC3.5/R

Features

Regulated

Converters

3.5 Watt DIP24

Reinforced

Output

C22.2-No. 60950 Certified

C22.2-601.1 Certified

UL-60601.1 Certified

Selection Guide

Part

Input

Output

Output

Efficiency

Max

Number

Voltage

Voltage

Current

Capacitive

DIP24

(VDC)

(VDC)

(mA)

(%)

REC3.5-xx05SRW/R*

9 - 18, 18 - 36, 36 - 75

5

700

80, 81, 82

4700µF

4.5 - 9

77

REC3.5-xx09SRW/R*

9 - 18, 18 - 36, 36 - 75

9

388

81, 82, 83

3300µF

4.5 - 9

80

REC3.5-xx12SRW/R*

9 - 18, 18 - 36, 36 - 75

12

290

82, 83, 84

2200µF

4.5 - 9

82

REC3.5-xx15SRW/R*

9 - 18, 18 - 36, 36 - 75

15

233

84, 85, 86

2200µF

4.5 - 9

83

REC3.5-xx24SRW/R*

9 - 18, 18 - 36, 36 - 75

24

145

83, 84, 85

1000µF

4.5 - 9

82

REC3.5-xx05DRW/R*

9 - 18, 18 - 36, 36 - 75

±5

±350

80, 81, 82 ±2200µF

4.5 - 9

77

REC3.5-xx09DRW/R*

9 - 18, 18 - 36, 36 - 75

±9

±194

81, 82, 83 ±1600µF

4.5 - 9

80

REC3.5-xx12DRW/R*

9 - 18, 18 - 36, 36 - 75

±12

±145

81, 82, 83 ±1000µF

4.5 - 9

82

REC3.5-xx15DRW/R*

9 - 18, 18 - 36, 36 - 75

±15

±117

82, 83, 84 ±1000µF

4.5 - 9

80

R* = R8 or R10 for 8kVDC or 10kVDC isolation.

Note 1: Maximum capacitive load is defined as the capacitive load that will allow start up in under

1 second without damage to the converter.

The REC3.5 series uses a reinforced isolation transformer to offer exceptionally high isolation

of 8kVDC (4kVAC/1 minute) or 10kVDC (5kVAC/1minute) making it suitable for HT monitoring

circuits, mains power meters, IGBT isolated power supplies and other sophisticated industrial

and medical applications. The isolation capacitance of only 20pF makes them also suitable for

low leakage applications. The isolation transformer is recognized by CSA as reinforced isolated

with a minimum internal clearance of 2.4mm and a minimum internal creepage clearance of

4.6mm. The REC3.5 is available in two industry-standard pinouts (= "/A" or "/C"). Remote

on/off control is possible with the /CTRL option (A pinning only) and an optional undervoltage

lockout function is also available (="/X1"). The converters can deliver 140% rated power for short

periods of time to cope with applications with large capacitive loads or high start up currents.

Description

2:1 Input

(REC3.5-S_DRW/R8(R10)

xx = 4.5-9Vin = 05

xx = 9-18Vin = 12

xx = 18-36Vin = 24

xx = 36-75Vin = 48

* add suffix "/A" or "/C" for pinning options,

see next page for details.

* add suffix “/CTRL” for control pin option (A Pinning only)

* add suffix "/X1" for Undervoltage Lockout

Ordering Examples:

REC3.5-0512DRW/R8/A/CTRL= 5V Vin, ±12V Vout, 8kVDC isolation, pinout “A”,control pin

REC3.5-4805SRW/R10/A = 48V Vin, 5V Vout, 10kVDC isolation, pinout “A”

REC3.5-1212DRW/R8/C/X1 = 12V Vin, ±12V Vout, 8kVDC isolation, pinout “C”,UVL

REC3.5-0505SRW/R10/A/CTRL/X1 = 5V Vin, 5V Vout, 10kVDC isolation, pinout “A”,control pin, UVL

Derating-Graph

(Ambient Temperature)

120

100

20

60

125

75

0

-40

Operating Temperature (°C)

0

80

50

25

85

40

105

Safe Operating Area

E-314885

RoHS

2011/65/EU

6/6

REV: 0/2015
