Ceramic Wire Wound Inductors

AISC-1206

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001 :2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California92688

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 10.11.13

Test Equipment

Inductance (L): Agilent4287A+Agilent16197A or equivalent, -13dBm or 10mA

Direct Current Resistance (DCR): HIOKI 3540 or equivalent

Q Factor (Q): Agilent4287A+Agilent16197A or equivalent, -13dBm or 10mA

Self-Resonant Frequency (SRF): Agilent4991B+Agilent16197A and HP 8753E or equivalent, -20dBm or 50mV

Rated Current (Ir): Ir is direct electric current as chip surface temperature rose just 20oC against chip initial surface temperature (Ta)

Operating Temperature: -40ºC to +125ºC

Storage Temperature: -10ºC to +40ºC, 70% RH max.

3.56 x 2.16 x 1.52mm

AISC-1206-6N8

AISC-1206-47N

AISC-1206-R18

AISC-1206-6N8

AISC-1206-47N

AISC-1206-R18

AISC-1206 -

-

Inductance Code

Tolerance Code

Packaging

Please refer to the table

G: ±2%

T: Tape & Reel (2k/reel)

J: ±5%

K: ±10%

PART NUMBER IDENTIFICATION

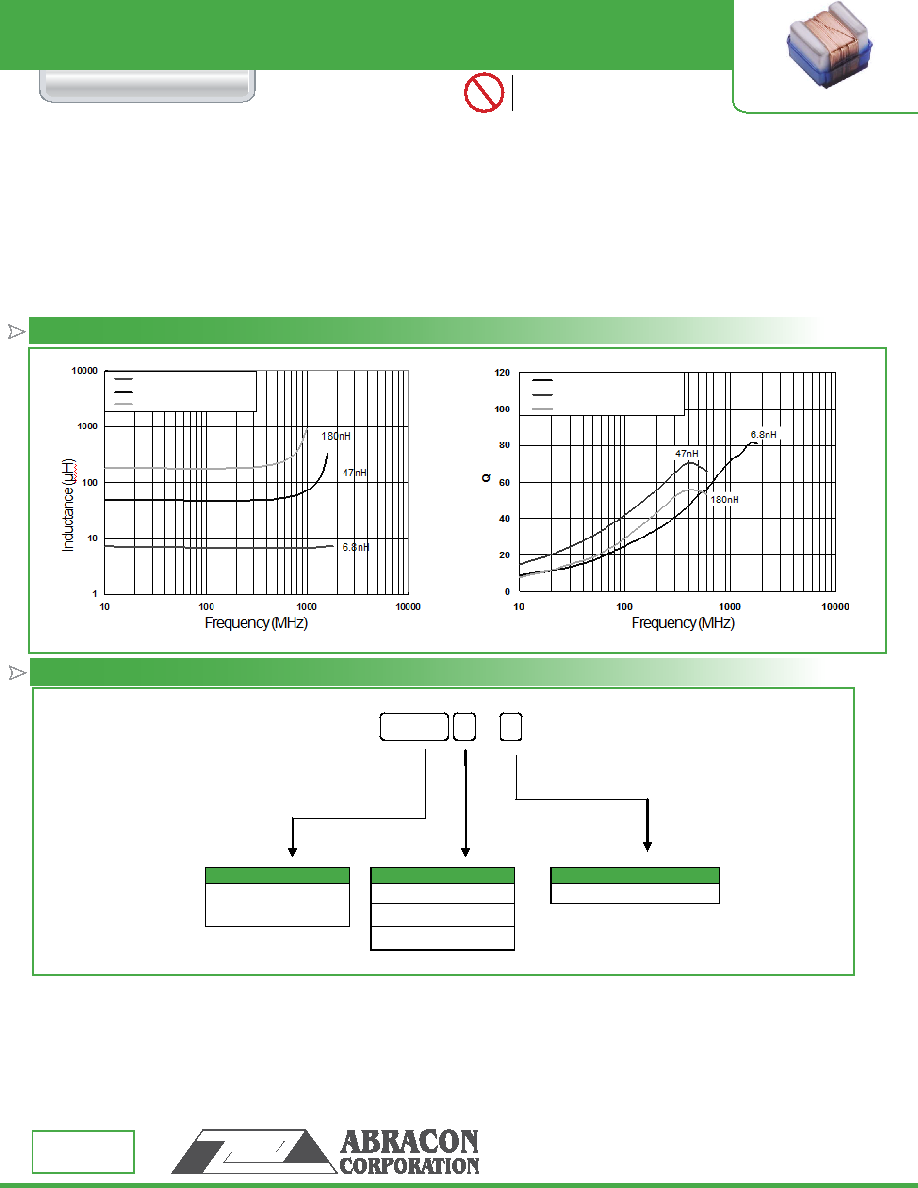

ELECTRICAL CHARACTERISTICS CURVES
