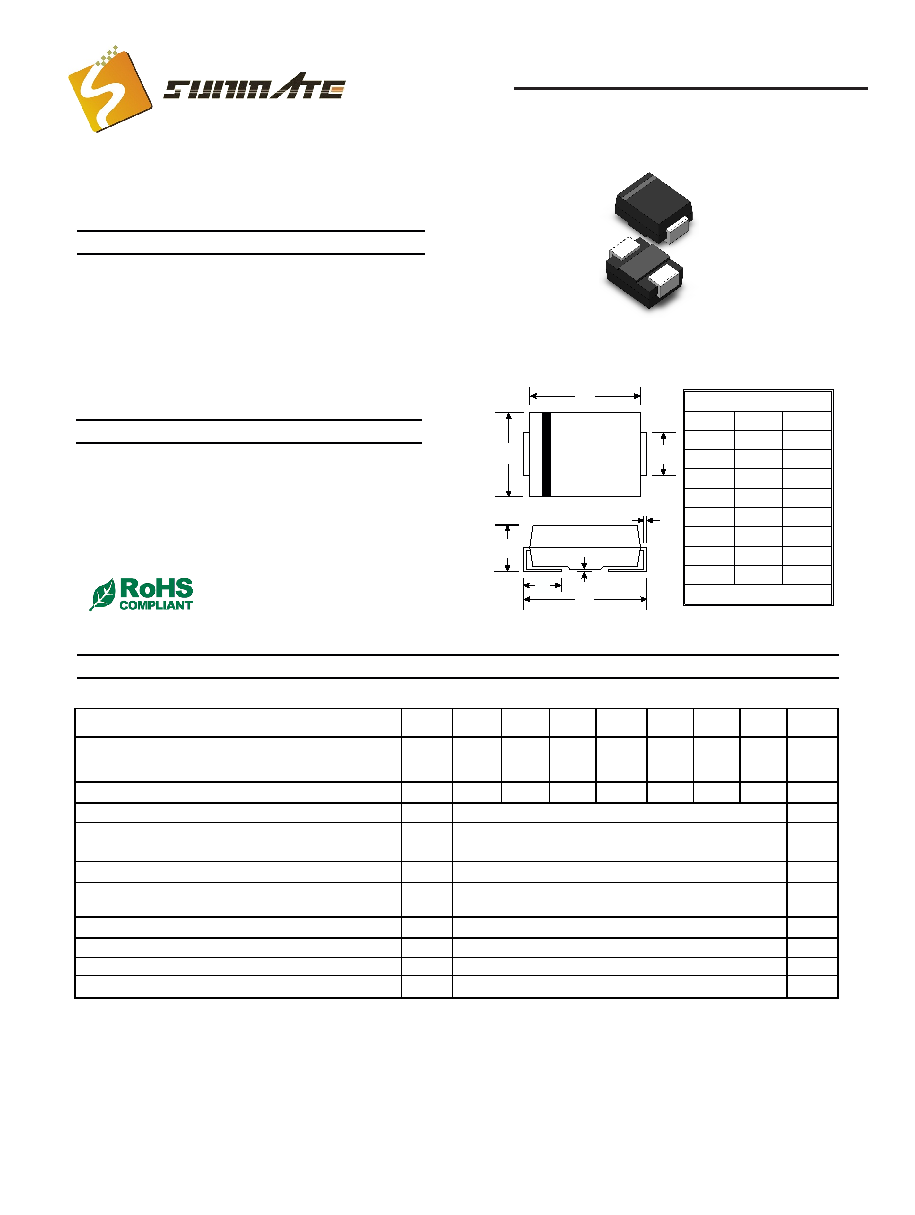

FR3JB datasheet(1/2 Pages) SUNMATE

部件名	FR3JB

功能描述	SURFACE MOUNT FAST RECOVER Y RECTIFIER DIODES

PDF	2 Pages

Scroll/Zoom	100%

制造商	SUNMATE [SUNMATE electronic Co., LTD]

网页	http://www.sunmate.tw/

标志

1 / 2 page

FR3MB

FR3KB

FR3JB

FR3GB

FR3DB

FR3BB

FR3AB

FR3AB - FR3MB

Case: SMB(DO-214AA),Molded Plastic

Average Rectified Output Current

@ T

SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Features

Glass Passivated Die Construction

Fast Recovery Time for High Efficiency

Low Forward Voltage Drop and High Current

Capability

Ideally Suited for Automatic Assembly

Plastic Material: UL Flammability

Classification Rating 94V-0

Mechanical Data

Terminals: Solder Plated Terminal -

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band or Cathode Notch

Marking: Type Number

Characteristic

Symbol

Unit

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

VRRM

VRWM

VR

50

100

200

400

600

800

1000

V

RMS Reverse Voltage

VR(RMS)

35

70

140

280

420

560

700

V

T = 75

°C

IO

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave Superimposed on Rated Load

(JEDEC Method)

IFSM

100

A

Forward Voltage

@ I F = 3.0A

VFM

1.3

V

Peak Reverse Current

@ TA = 25

°C

at Rated DC Blocking Voltage

@ TA = 125

°C

IRM

5.0

250

mA

Maximum Recovery Time (Note 3)

trr

150

250

500

ns

Typical Junction Capacitance (Note 2)

Cj

50

pF

Typical Thermal Resistance Junction to Terminal (Note 1)

RqJT

25

K/W

Operating and Storage Temperature Range

Tj, TSTG

-65 to +150

°C

Notes:

1. Thermal resistance: junction to terminal, unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pad as heat sink.

2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

3. Reverse recovery test conditions: IF = 0.5A, IR = 1.0A, Irr = 0.25A. See figure 5.

3.0

A

CURRENT : 3.0 A

VOLT AGE RANGE: 50-1000V

Weight: 0.093 grams (approx.)

Maximum Ratings and Electrical Characteristics T

A = 25

°C unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.

!

SMB(DO-214AA)

Dim

Min

Max

A

B

C

1.91

2.21

D

0.15

0.31

E

5.00

5.59

G

0.10

0.20

H

0.76

1.52

J

2.00

2.62

All Dimensions in mm

A

B

C

D

G

H

E

J

3.30

3.94

4.06

4.70

A

B

C

D

G

H

E

J

1 of 2

www.sunmate.tw
