Fusetron™ 600 V Class RK5 FRS-R — 600 Vac/

300 Vdc, 1⁄10-60 A, dual element, time-delay fuses

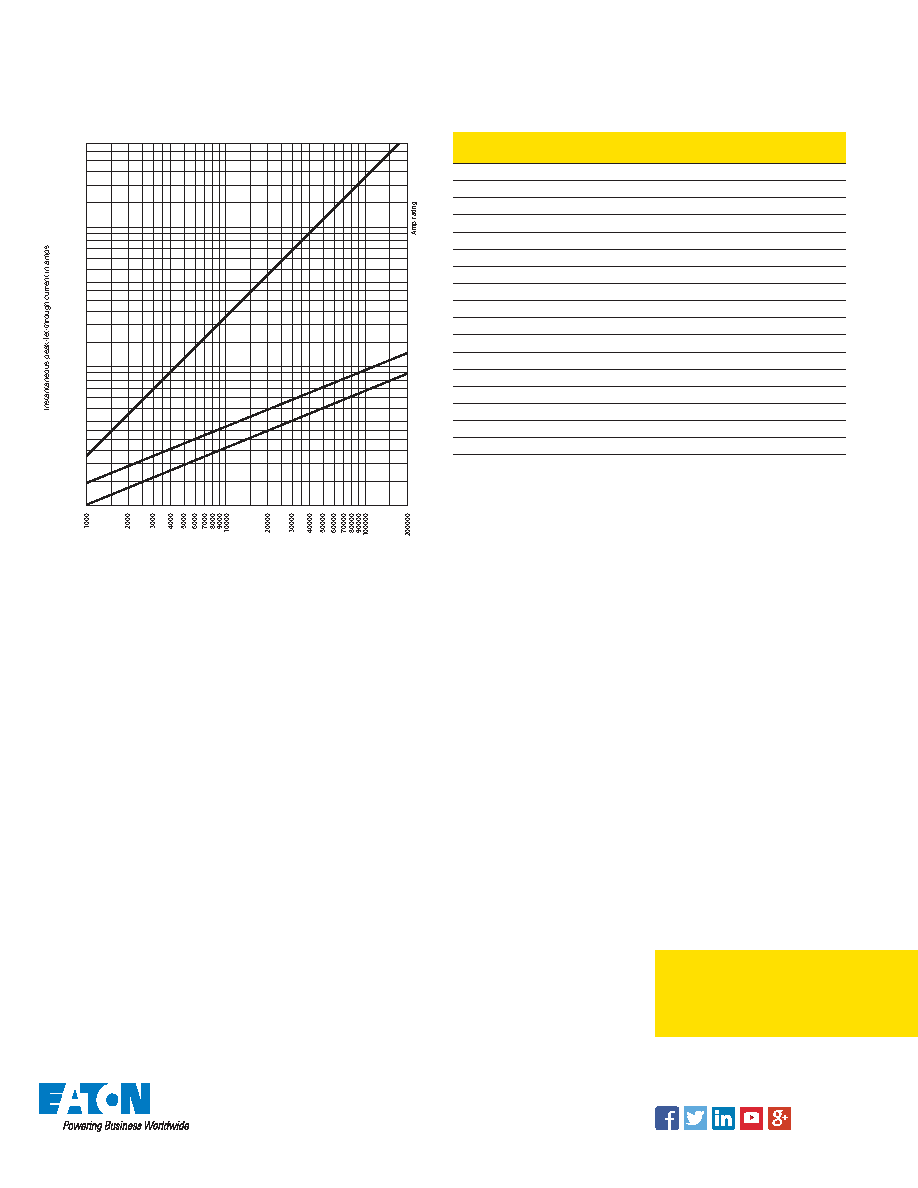

Current-limitation curves

400000

9000

8000

7000

6000

300000

200000

100000

5000

4000

90000

3000

2000

1000

80000

70000

60000

B

A

50000

40000

30000

20000

10000

30A

60A

RMS Stmmetrical current in amps

A-B = asymmetrical available peak (2.3 x sym RMS amps)

Current-limiting effects

Prosp.

S.C.C.

Let-through current

(apparent RMS symmetrical vs. fuse rating)

—

30A

60A

5000

1000

1000

10,000

1000

2000

15,000

1000

2000

20,000

2000

2000

25,000

2000

2000

30,000

2000

3000

35,000

2000

3000

40,000

2000

3000

50,000

2000

3000

60,000

2000

3000

70,000

3000

4000

80,000

3000

4000

90,000

3000

4000

100,000

3000

4000

150,000

3000

5000

200,000

4000

6000
