Use the EB-RJF industrial Ethernet connectors

and plugs to make ultra-rugged and reliable

connections indoors or outdoors that are water,

corrosion and vibration proof.

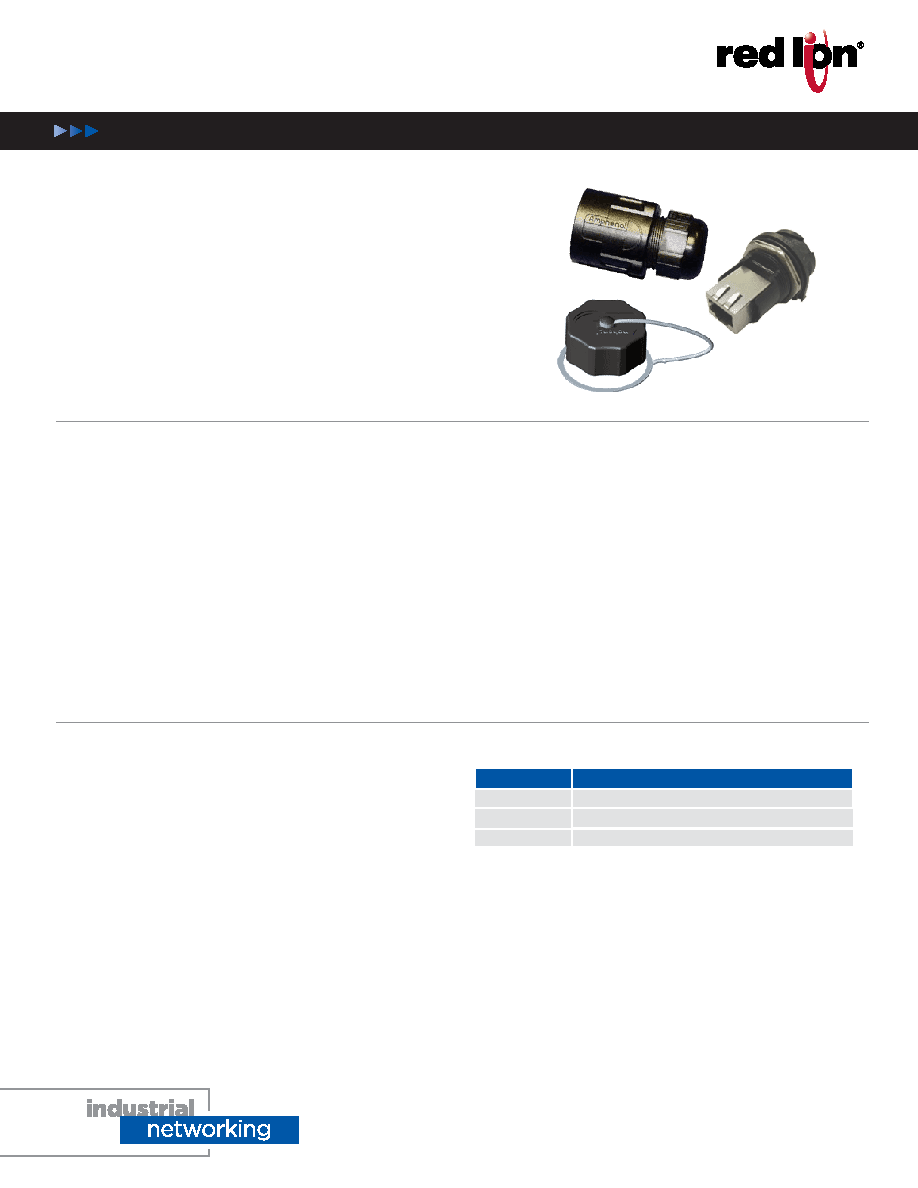

EB-RJF Waterproof Ethernet Connectors

Sixnet Networking Series

Industrial IP67 Waterproof Connectors

The EB-RJF-BLKHD industrial bulkhead (through-wall) connector gives you

a watertight pass-through Ethernet connection. The mating EBRJF-PLUG

industrial Ethernet plug is field installable around a standard RJ45 Ethernet

connector. These rugged connectors and plugs are the perfect match for

the Etherbus Kevlar-reinforced super-rugged Ethernet cabling.

PRODUCT HIGHLIGHTS

etc.) and dust

easiest latching – saves time!

ORDERING GUIDE

PART NUMBER

DESCRIPTION

EB-RJF-BLKHD-1

IP67 quick-latching (1/4 turn) bulk-head (through-wall) connector

EB-RJF-PLUG-1

IP67 field-installable quick latching (1/4 turn) Ethernet plug

EB-RJF-CAP-1

IP67 protective cap for bulk-head connector

ETHERNET PERFORMANCE

Ethernet data rates supported 10/100/1000 Base T

Cat 5E cable supported per TIA/EIA 568B and ISO/IEC 11801, Class D

Cat 6 cable supported per TIA/EIA 568B and ISO/IEC 11801, Class E

MECHANICAL CHARACTERISTICS

Coupling (connection method) Reverse bayonet – just a quarter turn and

lock

RJ45 cordset retention in the plug 70 N in the axis

Mating cycles 500 minimum

ENVIRONMENTAL

Sealing protection IP67 and NEMA 6 – dust, oil and water-proof to 1

meter for >30 min

Salt spray protection 1000 hours minimum

Fire retardant / low smoke UL94 V0; NFF 16102, DIN 5510-2

Thermal shock 5 cycles @ -40°C to +100°C

Operating temperature -40°C to +85°C

ROHS Compliant

All specifications are subject to change. Consult factory for latest info.
