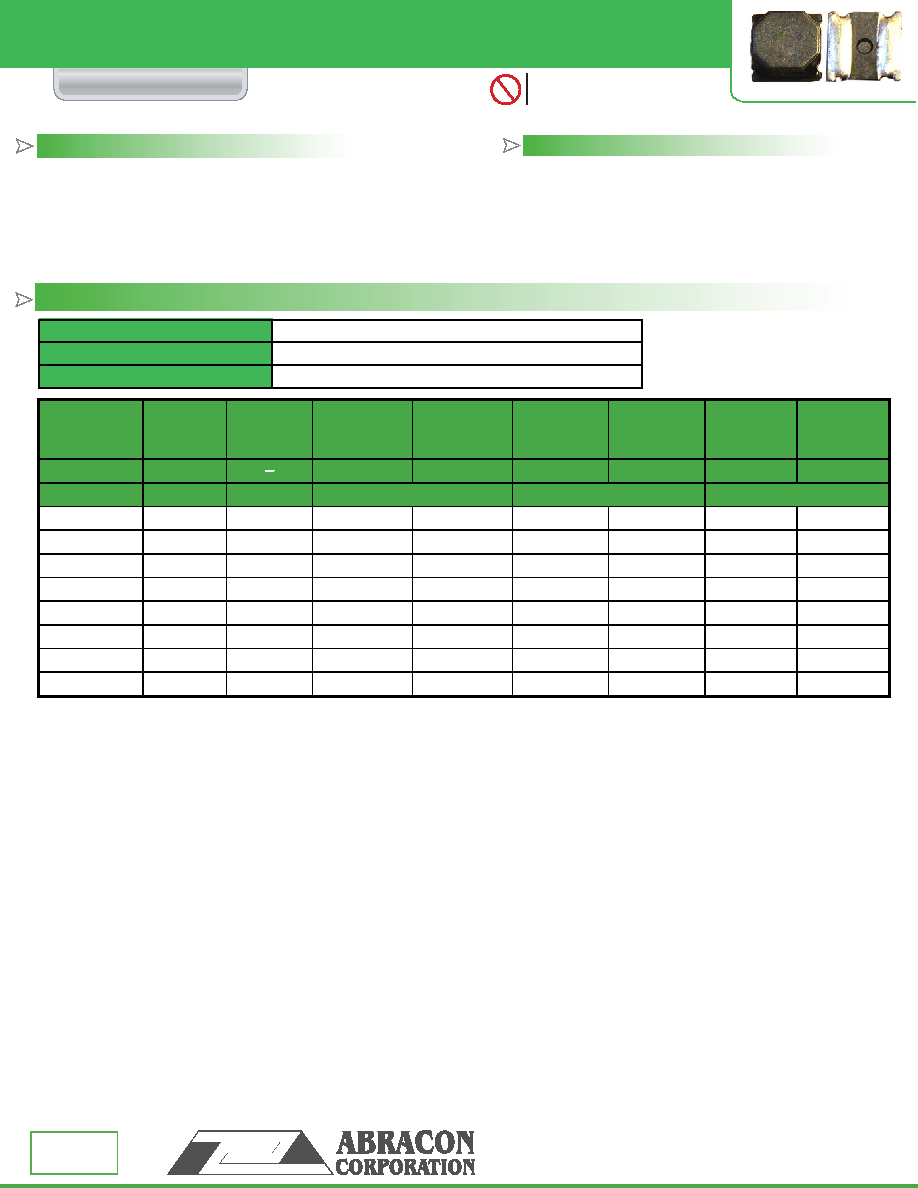

ASPI-2010 series

ELECTRICAL SPECIFICATIONS:

FEATURES:

APPLICATIONS:

• Mobile phones

• MP3 & 4 and other portable communication equipment

• Digital cameras.

2.0 x 1.6 x 1.0 mm

Pb

ABRACON IS

ISO9001:2008

CERTIFIED

Wire Wound Magnetically Shielded SMD Power Inductor

Abracon P/N:

ASPI-2010 Series

Operating Temperature & Humidity :

Storage Temperature & Humidity:

• Small size and low profile: 1.0mm

• Small DCR and high rated current

• High reliability to mechanical stress

• Magnetically shielded by magnetic powder molding

• Suitable for RoHS reflow profile

30332 Esperanza, Rancho Santa Margarita, California92688

Revised: 02.20.13

Visit www.abracon.com for Terms & Conditions of Sale

ASPI-2010

Part Number

ASPI-2010-

Inductance

Code

Inductance

L Tolerance

DC Resistance

Typ

DC Resistance

Max

Saturation

Current Typ

Saturation

Current Max

Temperature

Rise Current

Typ

Temperature

Rise Current

Max

Units

μH

−

Ω Typ

Ω Max

A Typ

A Max

A Typ

A Max

Symbol

L

M

DCR

Isat

Irms

ASPI-2010-R47

0.47

M

0.049

0.059

2.30

2.85

2.35

2.60

ASPI-2010-R68

0.68

M

0.063

0.076

1.95

2.45

2.05

2.25

ASPI-2010-1R0

1.0

M

0.095

0.114

1.65

1.85

1.45

1.60

ASPI-2010-1R5

1.5

M

0.145

0.174

1.35

1.65

1.25

1.40

ASPI-2010-2R2

2.2

M

0.220

0.264

1.20

1.45

1.10

1.20

ASPI-2010-3R3

3.3

M

0.279

0.335

0.90

1.05

0.88

0.98

ASPI-2010-4R7

4.7

M

0.399

0.479

0.70

0.85

0.74

0.82

ASPI-2010-6R8

6.8

M

0.680

0.816

0.60

0.70

0.52

0.58

Test Conditions:

b. Relative Humidity: 65%±20%

c. Air Pressure: 86KPa to 106KPa

Inductance (L): WK3260B LCR meter or equivalent, 1MHz

Direct Current Resistance (DCR): HIOKI 3540 or equivalent

Saturation Current (Isat): WK3260B LCR meter or equivalent

Isat: Based on inductance change (∆ L/Lo ≈ -30%)

Temperature rise current (Irms): Electric Power, Electric current meter, Thermometer

-40˚C ~ +125˚C (including self heating)

-10˚C ~ +40˚C and 70% R.H. max.

RoHS/RoHS II Compliant
