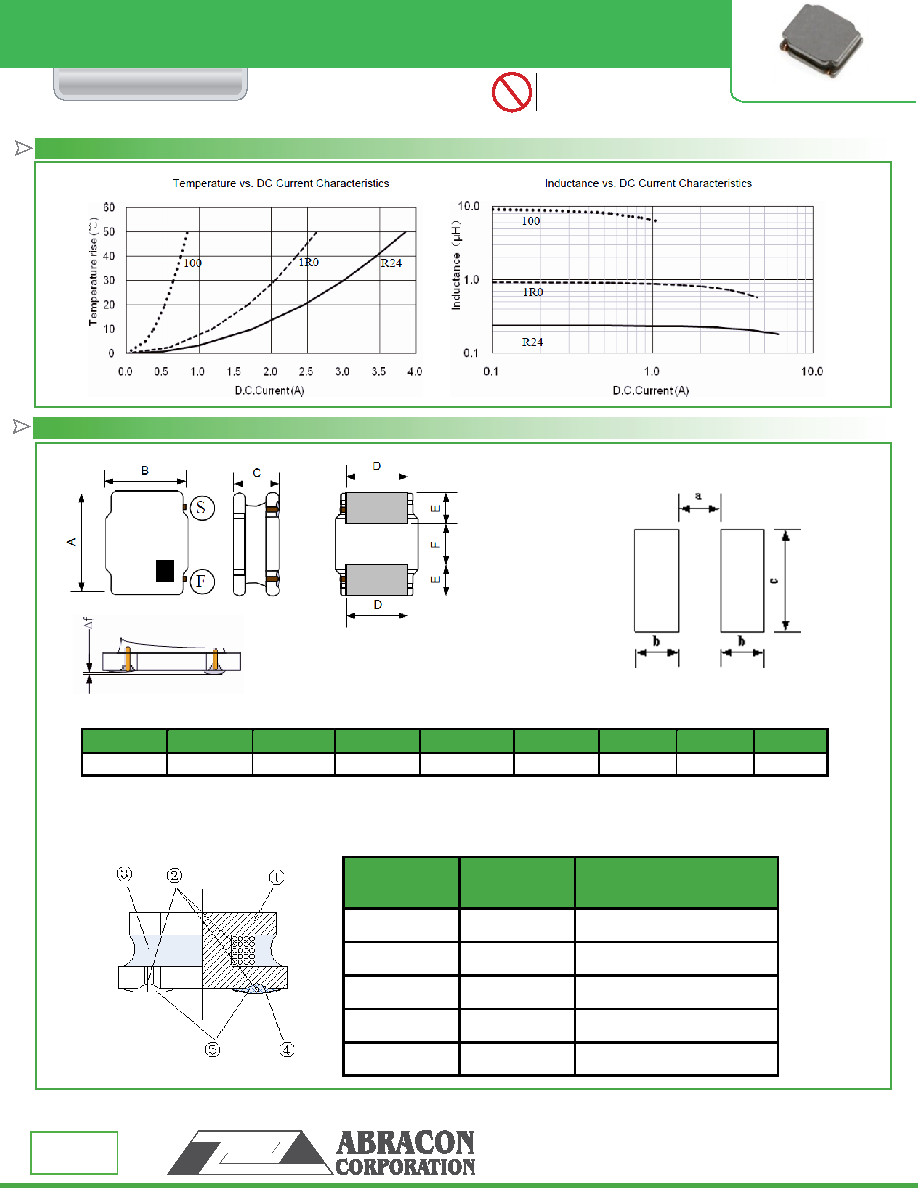

ASPI-2010HC

30332 Esperanza, Rancho Santa Margarita, California92688

Revised: 01.07.13

Visit www.abracon.com for Terms & Conditions of Sale

2.0 x 1.6 x 1.0 mm

ABRACON IS

ISO9001:2008

CERTIFIED

Wire Wound Magnetically Shielded SMD Power Inductor (High Current)

ELECTRICAL CHARACTERISTICS CURVES

Δf: Clearance between terminal and the surface of plate must be 0.1mm max when coil is placed on a flat plate.

Recommended Land Pattern

A

B

C Max.

D

E

F

a Typ.

b Typ.

c Typ.

2.0±0.2

1.6±0.2

1.0

1.2±0.2

0.60±0.2

0.80±0.2

0.70

0.70

1.70

Dimensions: mm

OUTLINE DIMENSIONS:

Materials

No

Components

Material

1

Core

Soft magnetic metal

2

Wire

Polyurethane system enameled copper

wire

3

Magnetic Glue

Epoxy resin and magnetic powder

4

Substrate

FeNiCu/Ag

5

Top Electrodes

Sn alloy
