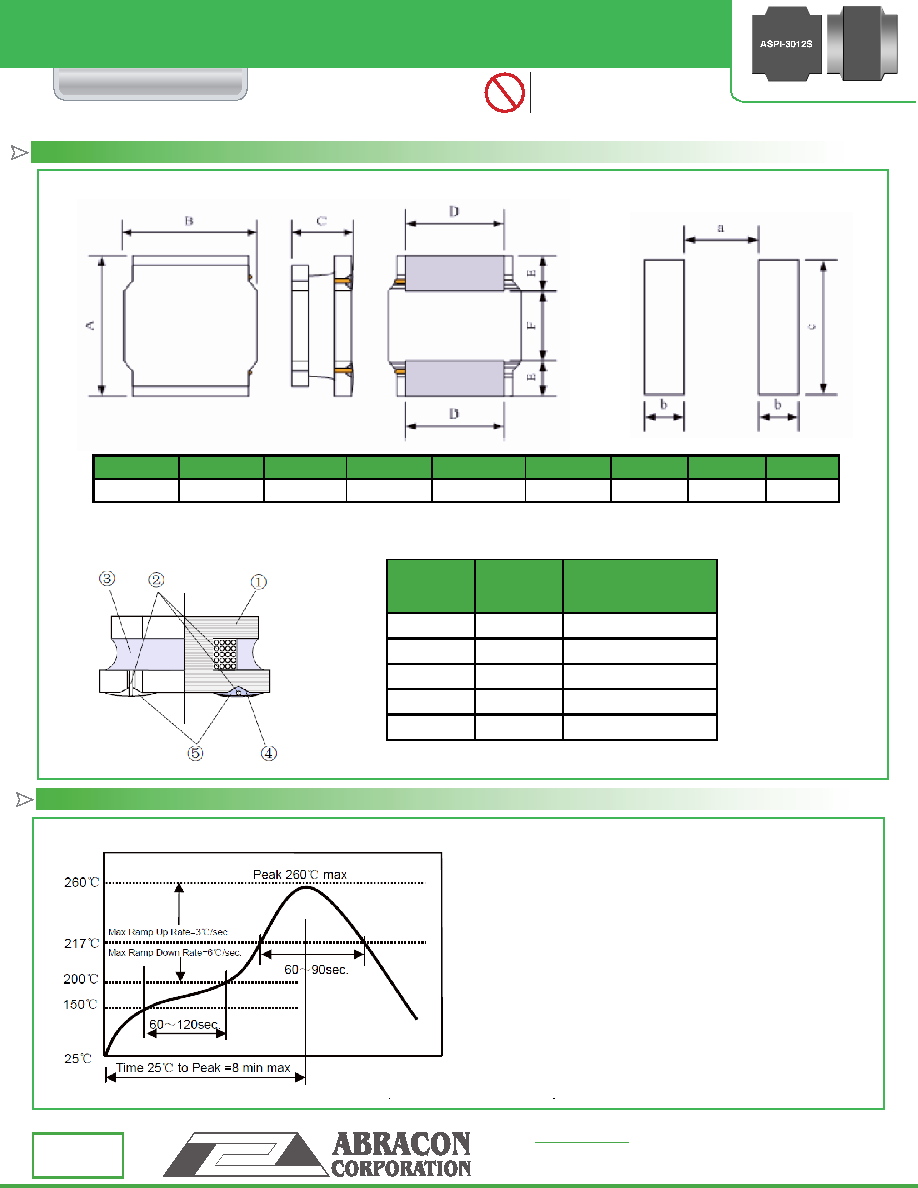

ASPI-3012S

OUTLINE DIMENSIONS:

SMD SHIELDED POWER INDUCTOR

3.0 x 3.0 x 1.2mm

Pb

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

CERTIFIED

ISO 9001:2008

30332Esperanza, Rancho Santa Margarita, California 9268

Revised: 08.14.13

Visit

RoHS/RoHS II Compliant

Recommended Land Pattern

A

B

C Max.

D

E

F

a Typ.

b Typ.

c Typ.

3.0±0.2

3.0±0.2

1.2Max.

2.5±0.2

0.75±0.2

1.5±0.2

1.5Typ.

0.8Typ.

2.7Typ

Dimensions: mm

Materials

No

Components

Material

1

Ferrite Core

Ni-Zn Ferrite

2

Wire

Polyurethane System enameled copper

wire

3

Magnetic Glue

Epoxy resin and magnetic powder

4

Plating Electrodes

Plating: Ag/Ni/Sn

5

Outer Electrodes

Top surface solder coating:

Sn96.5%/Ag3%/Cu0.5%

Δ

Δ Allowed time above 217C: 60~90sec.

Δ Max time at max temp: 5sec.

Δ Solder paste: Sn/3.0Ag/0.5Cu

Δ Allowed Reflow time: 2x max

REFLOW PROFILE:
