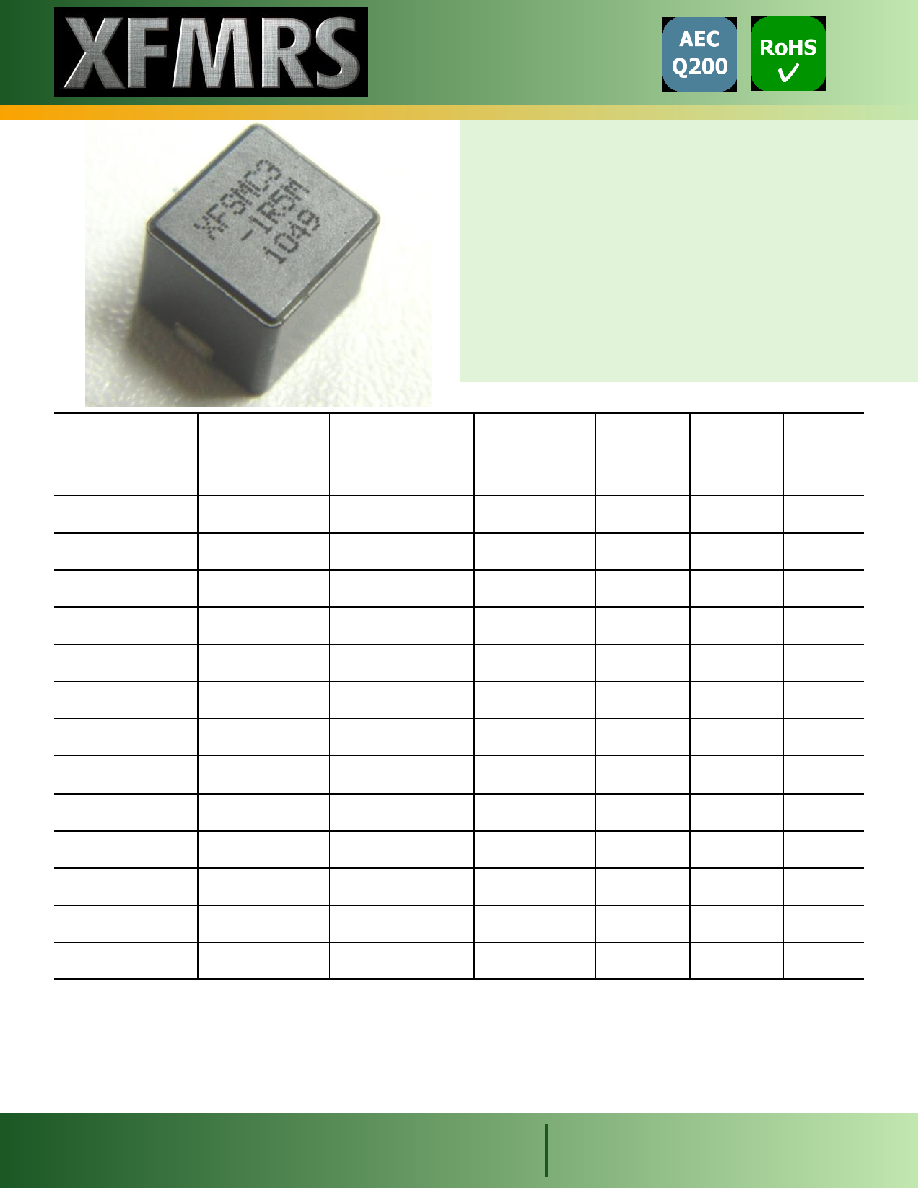

XFSMC3-xxx Series

High-Current Cube Inductors



Inductance Range: 0.22uH—10.0uH



Current Ratings: 9.0A—21.5A



Surface Mount Package



Custom Values Available Upon Request

Part Number

Inductance

100KHz, 10mA

(uH) ±20%

Rated Current

(40C temp rise)

Saturation

Current (30%

drop in OCL)

DCR (mΩ)

Typ

DCR (mΩ)

Max

SRF MHz

Typ

XFSMC3-R22M

0.22

21.5A

60.0A

1.40

1.60

300

XFSMC3-R33M

0.33

21.5A

55.0A

1.40

1.60

250

XFSMC3-R47M

0.47

20.5A

47.0

1.60

1.85

160

XFSMC3-R68M

0.68

20.0A

38.0A

2.15

2.65

140

XFSMC3-R82M

0.82

20.0A

36.0A

2.15

2.65

120

XFSMC3-1R0M

1.00

20.0A

27.5A

2.15

2.65

100

XFSMC3-1R5M

1.50

18.0A

27.0A

3.35

4.00

78

XFSMC3-2R2M

2.20

16.5A

22.0A

4.60

4.80

80

XFSMC3-3R3M

3.30

14.0A

15.5A

6.50

7.15

51

XFSMC3-4R7M

4.70

13.0A

15.0A

9.40

9.90

49

XFSMC3-6R8M

6.80

11.5A

11.0A

14.15

15.0

40

XFSMC3-8R2M

8.20

11.5A

8.0A

14.15

15.0

36

XFSMC3-100M

10.0

9.0A

8.0A

22.75

23.1

35

Notes:

1.

Solderability: Leads shall meet MIL-STD-2020G, Method

208H for solderability

2.

Flammability: UL94V-0

3.

ASTM oxygen index: > 28%

4.

Insulation System: Class F 155°C. UL file E151556

5.

All listed parameters are to be within tolerance from –40°C

_

to +85°C unless otherwise noted

6.

Storage Temperature Range: -55°C to +125°C

7.

Aqueous wash compatible

8.

Electrical and mechanical specifications 100% tested

9.

RoHS Compliant Component
