ADM823RYRT-R7 数据表(PDF) 7 Page - Analog Devices

部件名 ADM823RYRT-R7
功能描述  Supervisory Circuits with Watchdog and Manual Reset in 5-Lead SC70 and SOT-23
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

ADM823RYRT-R7 数据表(HTML) 7 Page - Analog Devices

Back Button ADM823RYRT-R7 Datasheet HTML 2Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 3Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 4Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 5Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 6Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 7Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 8Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 9Page - Analog Devices ADM823RYRT-R7 Datasheet HTML 10Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 7 / 10 page
background image
Preliminary Technical Data
ADM823/ADM824/ADM825
Rev.PrB | Page 7 of 10

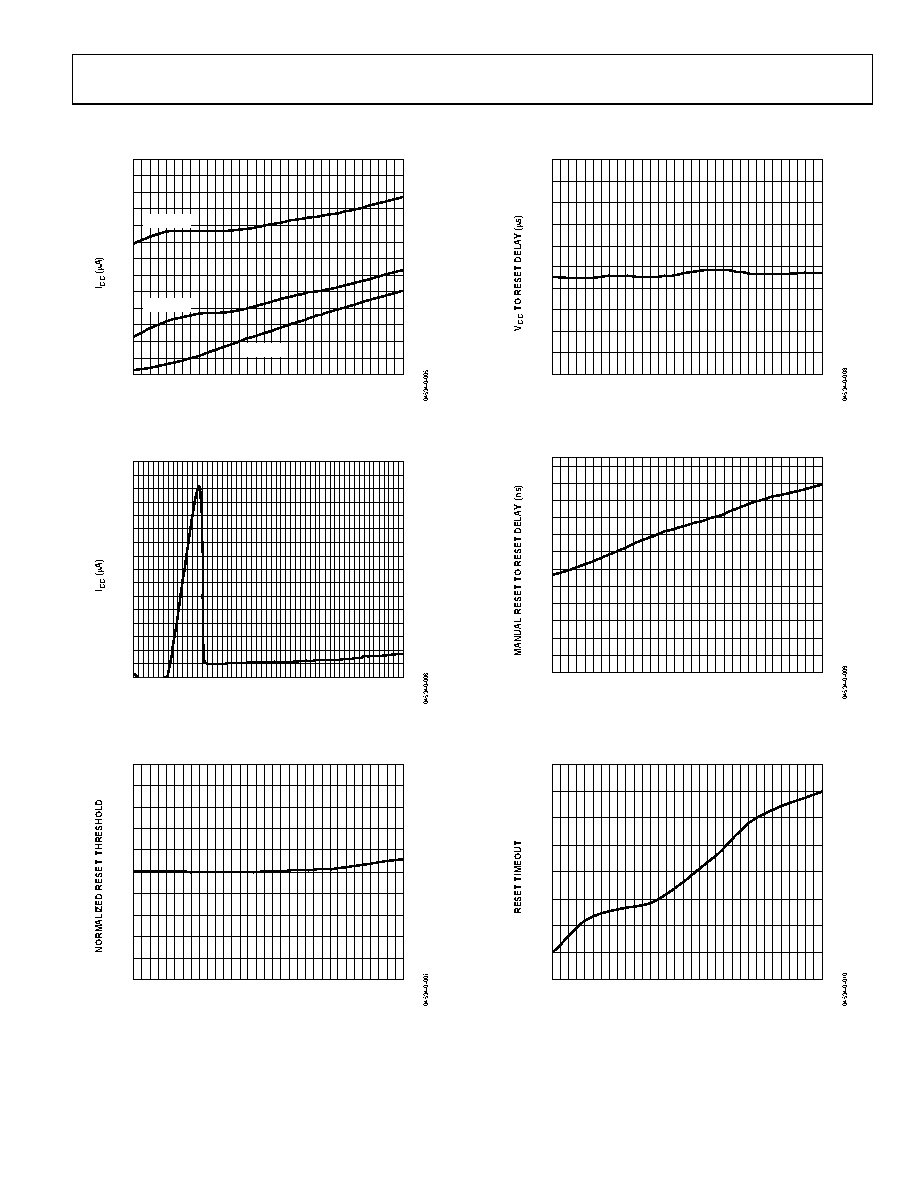

TYPICAL PERFORMANCE CHARACTERISTICS
TEMPERATURE (°C)
120
–40
–20
0
20
40
60
80
100
10.0
9.0
9.5
8.0
7.5
8.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.5
ADM823L
ADM824Y
ADM825R
Figure 5. Supply Current vs. Temperature
VCC (V)
5.5
0
2.0
1.5
1.0
0.5
2.5
3.0
3.5
4.0
4.5
5.0
80
70
75
60
55
65
50
45
40
35
30
20
10
25
15
5
0
Figure 6. Supply Current vs. Supply Voltage
TEMPERATURE (°C)
120
–40
40
20
0
–20
60
80
100
1.05
1.03
1.04
1.01
1.00
1.02
0.99
0.98
0.97
0.96
0.95
Figure 7. Normalized Reset Threshold vs. Temperature
TEMPERATURE (°C)
120
–40
40
20
0
–20
60
80
100
100
80
90
60
50
70
40
30
20
10
0
Figure 8. Reset Comparator Propagation Delay vs. Temperature (VCC Falling)
TEMPERATURE (°C)
120
–40
40
20
0
–20
60
80
100
340
300
320
260
240
280
220
200
180
160
140
120
100
Figure 9. Manual Reset to Reset Propagation Delay vs. Temperature
(ADM823/ADM825)
TEMPERATURE (°C)
120
–40
40
20
0
–20
60
80
100
250
230
240
210
200
220
190
180
170
Figure 10. Reset Timeout Period vs. Temperature
