SMM0204

www.vishay.com

Vishay Draloric

Revision: 09-Dec-15

1

Document Number: 20004

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

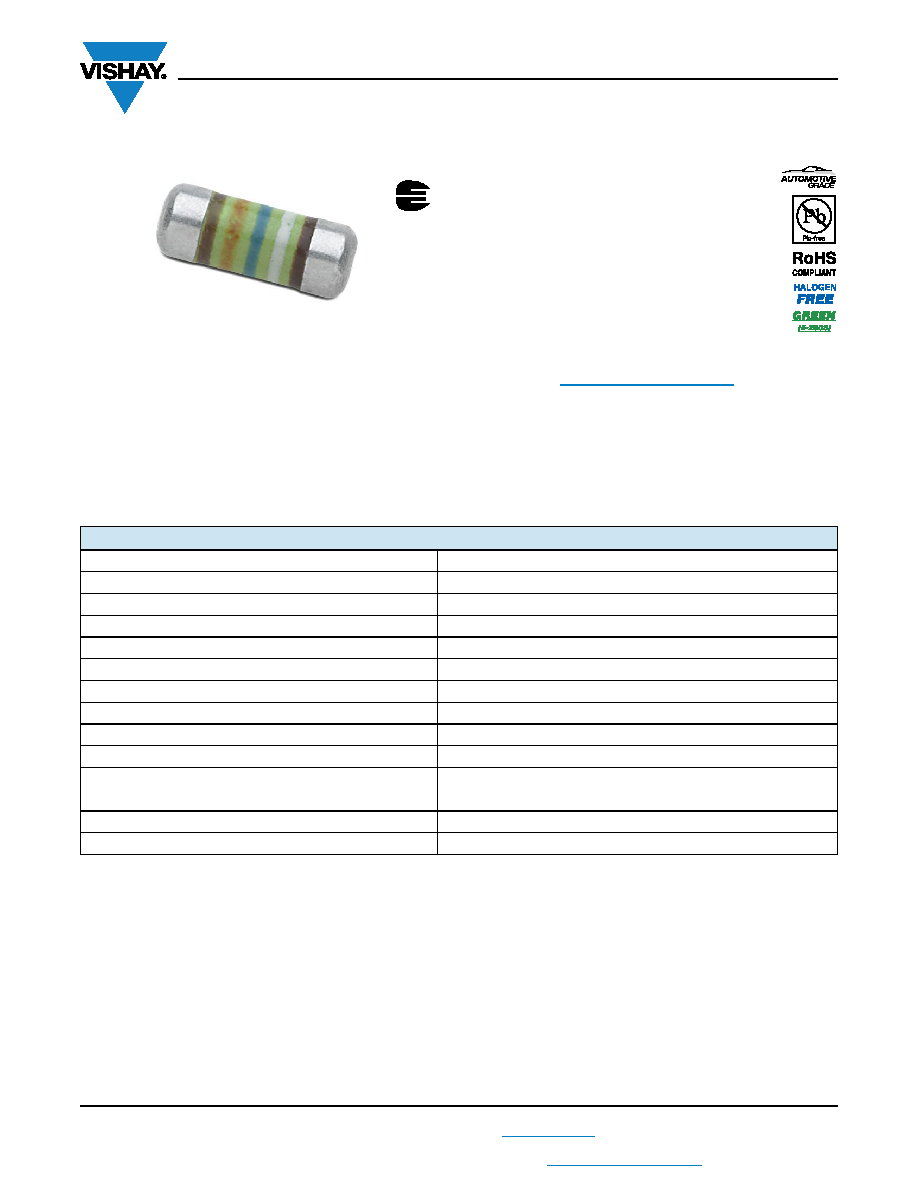

Thin Film Mini-MELF Resistors

SMM 0204 thin film MELF resistors are the perfect choice

for most fields of modern electronics where reliability and

stability are of major concern. The typical applications in the

fields of automotive, industrial and medical equipment

reflect the outstanding level of proven reliability.

FEATURES

• Advanced metal film technology

• AEC-Q200 qualified

• Approval acc. EN 140401-803 available on

request

• Excellent stability in different environmental

conditions

• Best in class pulse load capability

• Intrinsic sulfur resistance

• Material categorization: for definitions of compliance

APPLICATIONS

• Automotive

• Telecommunication

• Industrial

• Medical equipment

Notes

• The IECQ-CECC approved product versions SMM0204 EN803 E0 and OMM0204 EN803 E0 respectively feature a quality factor

the purpose of system MTBF calculations, compared with

APPLICATION INFORMATION

When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal

resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted

film temperature is not exceeded.

These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift

increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a

functional lifetime

TECHNICAL SPECIFICATIONS

DESCRIPTION

SMM0204

DIN size

0204

Metric size code

RC 3715M

Resistance range

0.22

Ω to 10 MΩ

Resistance tolerance

± 5 %; ± 1 %; ± 0.5 %; ± 0.25 %; ± 0.1 %

Temperature coefficient

± 100 ppm/K; ± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K

Rated dissipation

0.4 W

Operating voltage,

200 V

Permissible film temperature,

155 °C

-55 °C to 155 °C

Permissible voltage against ambient (insulation):

1 min;

300 V

Zero-Ohm-Resistor: OMM0204
