Cree 5-mm Oval LED

C5SMF-RJF/GJF/BJF

C5SMF-RJE/GJE/BJE

C5SME-RJF/RJE

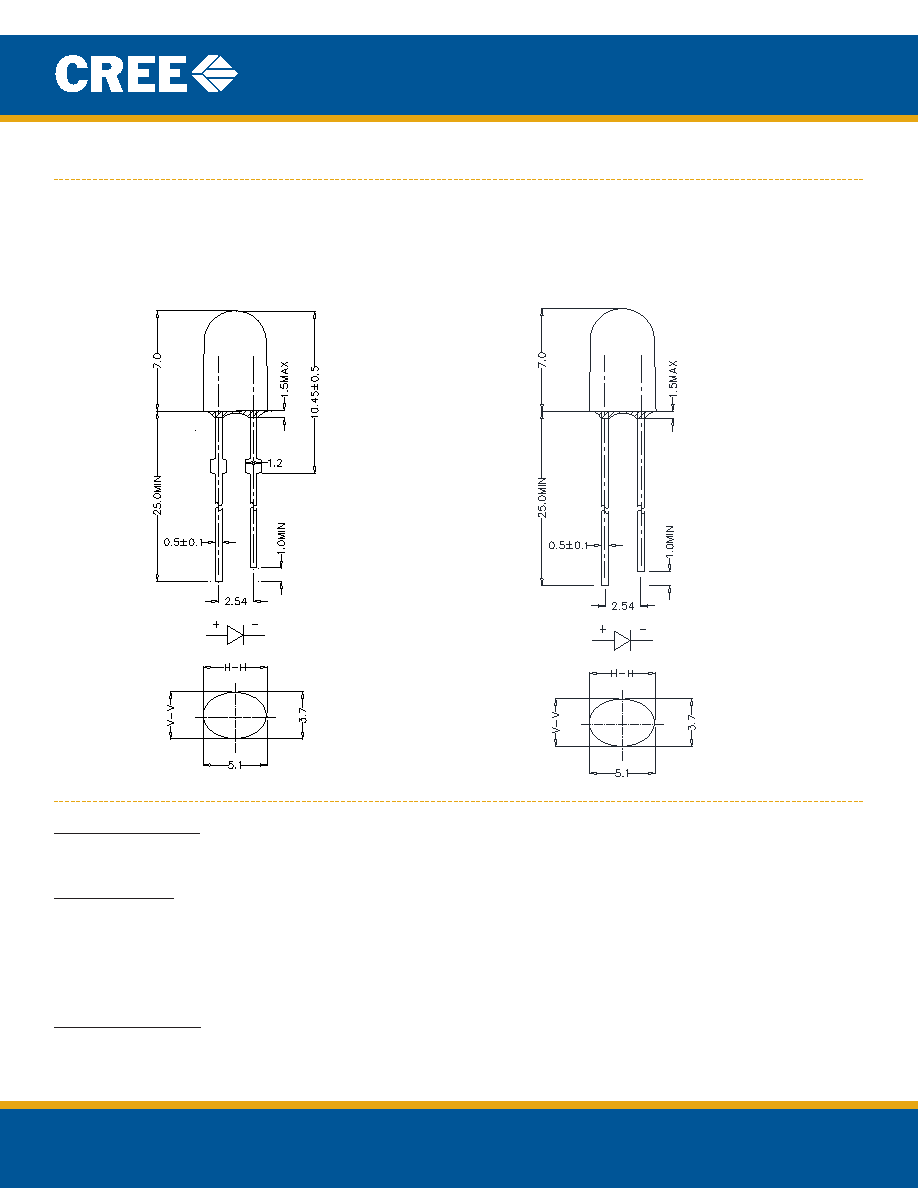

MECHANICAL DIMENSIONS

All dimensions are in mm. Tolerance is ±0.25 mm unless otherwise noted.

An epoxy meniscus may extend about 1.5 mm down the leads.

Burr around bottom of epoxy may be 0.5 mm max.

NOTES

Lead Frame Materials

Ag-plated and Lead-free Solder-plated iron.

RoHS Compliance

The levels of environmentally sensitive, persistent biologically toxic (PBT), persistent organic pollutants (POP), or other-

wise restricted materials in this product are below the maximum concentration values (also referred to as the threshold

limits) permitted for such substances, or are used in an exempted application, in accordance with EU Directive 2002/95/

EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as

amended through April 21, 2006.

Vision Advisory Claim

Users should be cautioned not to stare at the light of this LED product. The bright light can damage the eye.

C5SMF-RJF/GJF/BJF&C5SME-RJF:

C5SMF-RJE/GJE/BJE&C5SME-RJE:
