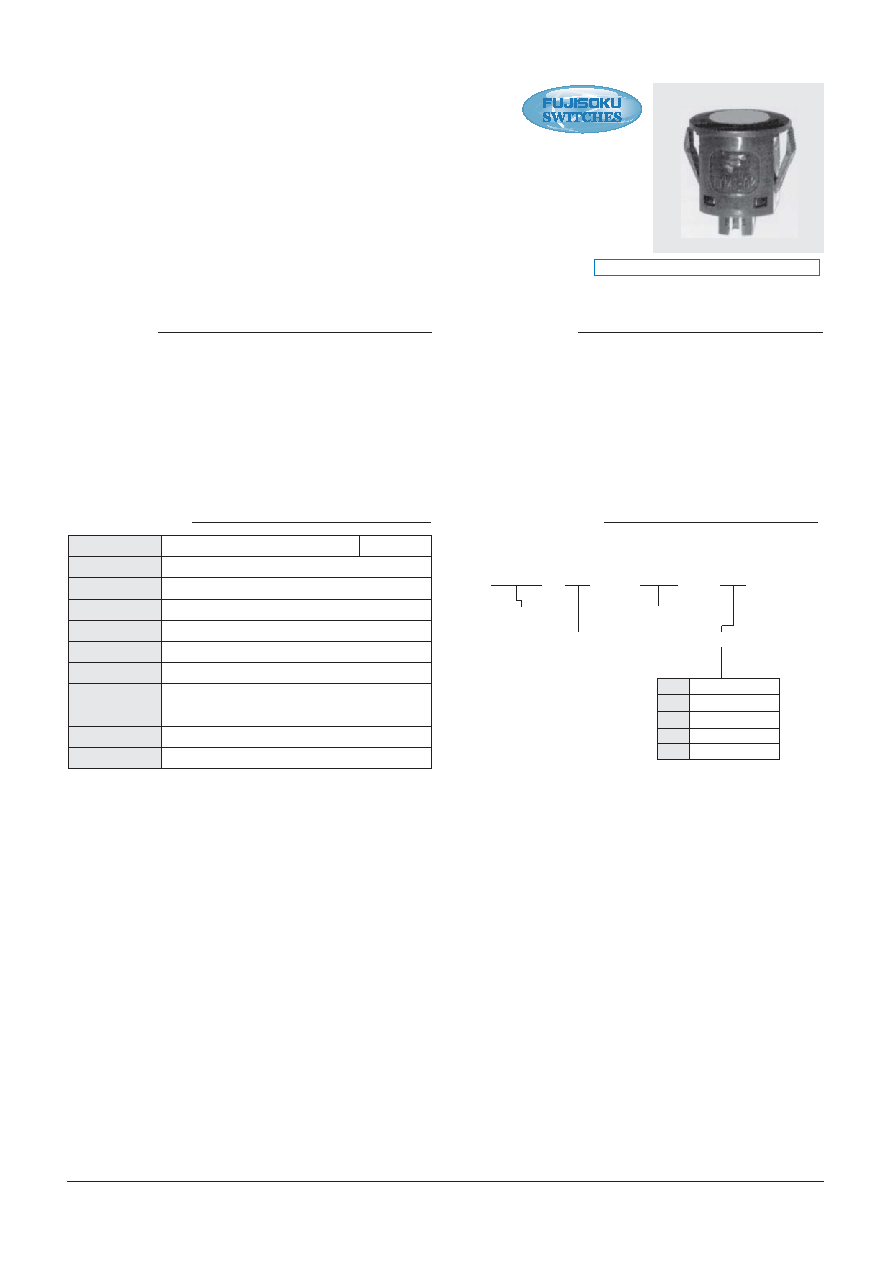

LTM3-02

Ultra-Miniature Pushbutton Switches

With Connector socket

（Without LED）

RoHS Compliant

■ :WLJPÄJH[PVUZ

Rating

1VA max.

（50mA max.48VDC max）

0.5mA min.

Initial contact resistance 100

Ω max.

（1.5mA 200μVAC at 1.96N）

Dielectric strength 250VAC 1 minute

Insulation resistance 100MΩ min

（100VDC）

Electrical life

300,000 operations

Contact Bounce

10 msec. max.

（Initial value）

Travel

0.25 mm

Operating force

（at peak force）

1.37

±0.39N

Operatingtemperaturerange −25∼＋70℃

Storagetemperaturerange −40∼＋70℃

■ Part Numbering

■ Applications

● Operating buttons for gaming machines

● Signal input buttons of various equipments

■ Features

1. Snap-in panel mount.

2. Connector interface for easy installation.

3. Dome shaped metal contact for sharp tactile

feel.

LTM

3

− 02 − K

Series

Structure

Registration No.

Button color

K

G

R

M

W

Black

Gray

Red

Green

White
