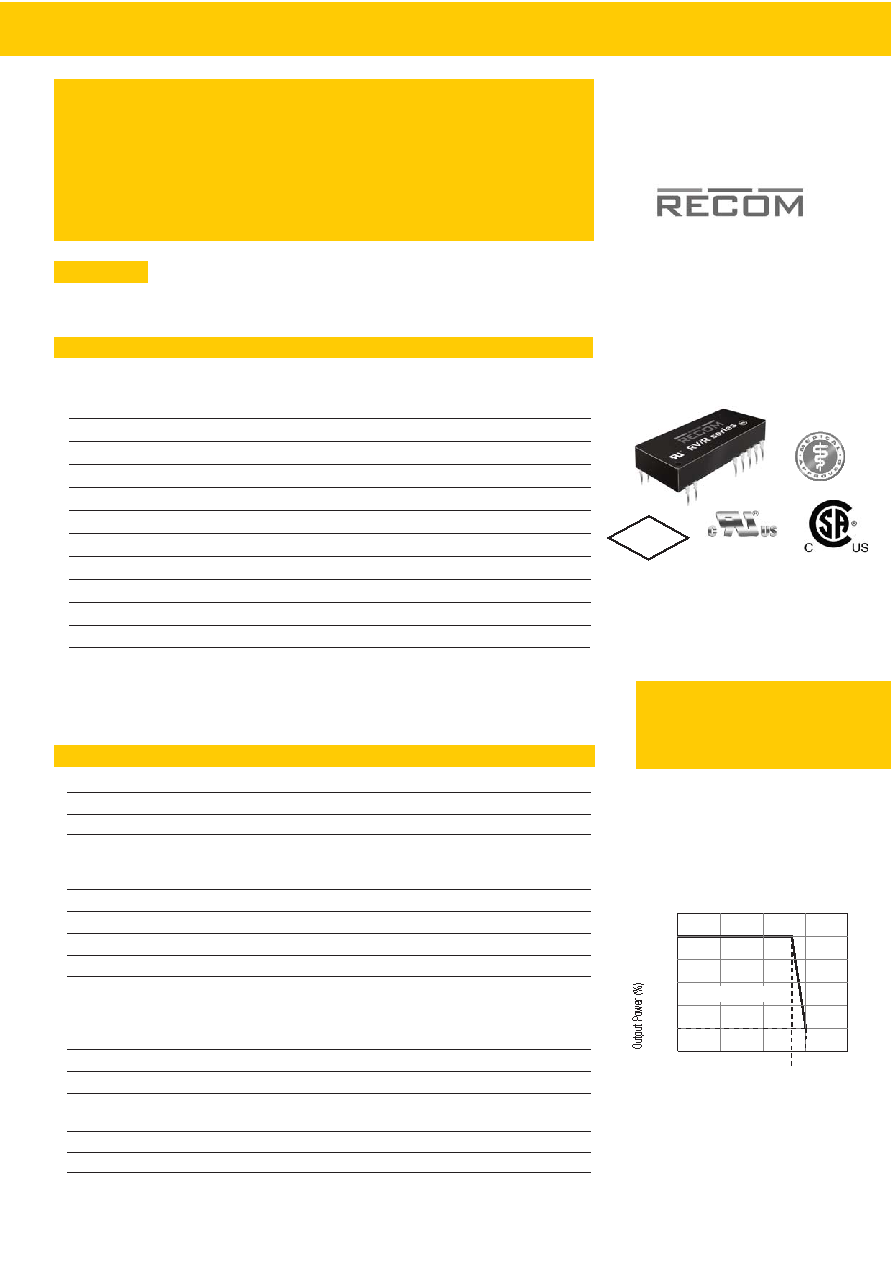

2 Watt DIP24

Miniature

Output

Features

Unregulated

Converters

Selection Guide

100

60

20

40

100

50

0

-40

85

150

Operating Temperature °C

0

80

Safe Operating Area

Derating-Graph

(Ambient Temperature)

Input Voltage Range

±10%

Output Voltage Accuracy

±5%

Line Voltage Regulation

1.2%/1% of Vin typ.

Load Voltage Regulation

3.3V output types

20% max.

(10% to 100% full load)

5V output type

15% max.

9V, 12V, 15V, 24V output types

10% max.

Output Ripple and Noise (20MHz limited)

200mVp-p max.

Operating Frequency

20kHz min. / 50kHz typ. / 85kHz max.

Efficiency at Full Load

70% min. / 75% typ.

Minimum Load = 0%

Specifications valid for 10% minimum load only.

Isolation Voltage

/R6.4

(tested for 1 second)

6400VDC

(rated for 1 minute**)

3200VAC / 60Hz

/R8

(tested for 1 second)

8000VDC

(rated for 1 minute**)

4000VAC / 60Hz

Isolation Capacitance

2pF min. / 12pF max.

Isolation Resistance

15 G

Ω min.

Short Circuit Protection

1 Second

P-Suffix

Continuous

Operating Temperature Range (free air convection)

-40°C to +85°C (see Graph)

Storage Temperature Range

-55°C to +125°C

continuned on next page

Description

Very high isolation in a small size are the main features of this miniature DIP24 converter,

ideal for highly sophisticated industrial, test and measurement and medical designs where

board space is at a premium.

RV/R

ECONOLINE

DC/DC-Converter

with 3 year Warranty

Refer to Application Notes

E-314885

Part

Reinforced

Input

Output

Output

Efficiency

Max

Number

Isolation

Voltage

Voltage

Current

Std

Capacitive

SIP 7

(kVDC)

(VDC)

(VDC)

(mA)

(%)

RV-xx3.3S

/R6.4 & /R8

3.3, 5, 12, 15, 24

3.3

600

70-78

3300µF

RV-xx05S

/R6.4 & /R8

3.3, 5, 12, 15, 24

5

400

76-80

1200µF

RV-xx09S

/R6.4 & /R8

3.3, 5, 12, 15, 24

9

222

78-85

1200µF

RV-xx12S

/R6.4 & /R8

3.3, 5, 12, 15, 24

12

167

78-85

680µF

RV-xx15S

/R6.4 & /R8

3.3, 5, 12, 15, 24

15

132

78-88

680µF

RV-xx3.3D

/R6.4 & /R8

3.3, 5, 12, 15, 24

±3.3

±300

70-78

±1500µF

RV-xx05D

/R6.4 & /R8

3.3, 5, 12, 15, 24

±5

±200

75-82

±470µF

RV-xx09D

/R6.4 & /R8

3.3, 5, 12, 15, 24

±9

±111

76-84

±470µF

RV-xx12D

/R6.4 & /R8

3.3, 5, 12, 15, 24

±12

±85

78-86

±220µF

RV-xx15D

/R6.4 & /R8

3.3, 5, 12, 15, 24

±15

±66

78-86

±220µF

xx = Input Voltage. Other input and output voltage combinations available on request.

* add Suffix “P” for Continuous Short Circuit Protection, e.g.

RV-0505S/P, RV-0505D/P

* add Suffix “/R6.4”or “/R8” for Reinforced Isolation, e.g.

RV-0505S/R6.4, RV-0505D/P/R8

For functional isolation, please refer to RV sereis datasheet

EN-60950-1 Certified

EN-60601-1 Certified

UL/CSA 60950-1 Certified

UL-60601-1 Certified

EN-61010-1 Certified

IEC-60601-1 CB Report

RoHS

2011/65/EU

6/6

**Any data referred to in this datasheet are of indicative nature

and based on our practical experience only. For further details,

please refer to our Application Notes.

REV: 1/2015

E-113
